SDO HMI 2011-07-18 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.23 | 67.78 | 37.62 | 119.15 | 24.55 | 78.76 | -74.09 | 65.73 | 0.9601 | -282.7 | -41.3 | |
|
previous
or next observation for the same group /

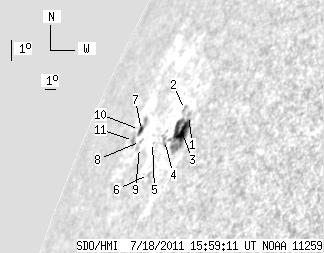

back to the solar disc SDO HMI 2011-07-18 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 4.13 | 25.25 | 80.28 | -72.56 | 64.95 | 0.9538 | -89.0 | -150.5 | |
| 0.00 | 2.27 | 0.00 | 3.84 | 25.39 | 79.59 | -73.26 | 64.83 | 0.9571 | -280.0 | -199.0 | |
| 19.42 | 40.74 | 31.62 | 66.38 | 24.74 | 80.25 | -72.60 | 65.48 | 0.9538 | -450.5 | -223.5 | |
| 0.00 | 3.90 | 0.00 | 6.81 | 24.31 | 78.90 | -73.94 | 66.00 | 0.9599 | 262.0 | 336.5 | |
| 0.00 | 1.00 | 0.00 | 1.86 | 24.15 | 77.64 | -75.20 | 66.21 | 0.9653 | 434.0 | 460.4 | |
| 0.00 | 1.91 | 0.00 | 3.33 | 23.17 | 78.72 | -74.13 | 67.19 | 0.9605 | 471.0 | 331.7 | |
| 1.72 | 7.98 | 3.65 | 16.98 | 24.39 | 75.61 | -77.24 | 66.00 | 0.9733 | 227.2 | 208.2 | |
| 0.00 | 1.63 | 0.00 | 3.34 | 24.06 | 76.11 | -76.74 | 66.33 | 0.9714 | 426.0 | 374.8 | |
| 0.00 | 1.18 | 0.00 | 2.39 | 23.88 | 76.31 | -76.53 | 66.52 | 0.9706 | 262.0 | 274.2 | |
| 1.09 | -7.00 | 2.35 | -7.00 | 24.40 | 75.28 | -77.57 | 66.00 | 0.9745 | -262.4 | 999999 | |
| 0.00 | 4.63 | 0.00 | 10.09 | 24.02 | 75.11 | -77.73 | 66.39 | 0.9751 | -350.0 | -263.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
