SDO HMI 2011-07-18 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.72 | 196.41 | 28.36 | 114.17 | -22.65 | 136.19 | -16.10 | 150.83 | 0.5253 | -163.6 | -239.6 | |
|
previous
or next observation for the same group /

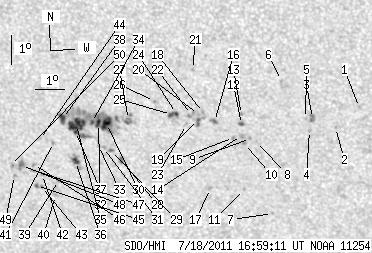

back to the solar disc SDO HMI 2011-07-18 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.66 | 144.45 | -7.84 | 164.00 | 0.4619 | 756.0 | 624.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.36 | 143.61 | -8.68 | 162.87 | 0.4758 | 807.0 | 642.3 | |
| 0.00 | 4.54 | 0.00 | 2.55 | -22.06 | 142.86 | -9.43 | 161.29 | 0.4750 | 938.0 | 824.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.47 | 142.73 | -9.55 | 161.35 | 0.4815 | 738.0 | 607.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.06 | 142.63 | -9.66 | 160.86 | 0.4762 | 612.0 | 496.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.78 | 141.92 | -10.37 | 158.53 | 0.4616 | 837.0 | 666.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -25.37 | 141.24 | -11.04 | 160.86 | 0.5299 | 580.0 | 473.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.88 | 140.92 | -11.37 | 158.47 | 0.4968 | 913.0 | 676.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.78 | 140.73 | -11.56 | 158.06 | 0.4965 | 839.0 | 711.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.95 | 140.51 | -11.78 | 157.84 | 0.5002 | 811.0 | 656.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -24.55 | 140.36 | -11.93 | 158.85 | 0.5230 | 768.0 | 625.4 | |
| 1.72 | 2.09 | 0.98 | 1.19 | -22.30 | 140.47 | -11.82 | 157.22 | 0.4914 | 913.3 | 881.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.96 | 140.50 | -11.79 | 156.97 | 0.4865 | 935.0 | 732.4 | |
| 0.00 | 2.90 | 0.00 | 1.66 | -22.68 | 140.43 | -11.85 | 157.48 | 0.4968 | 592.0 | 557.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.75 | 140.16 | -12.13 | 157.07 | 0.4995 | 812.0 | 623.1 | |
| 2.09 | 3.36 | 1.19 | 1.91 | -22.22 | 139.56 | -12.72 | 155.61 | 0.4957 | 808.1 | 675.8 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -24.53 | 139.20 | -13.09 | 157.00 | 0.5293 | 608.0 | 487.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -21.91 | 139.22 | -13.07 | 154.76 | 0.4938 | 916.0 | 667.8 | |
| 0.54 | 4.54 | 0.31 | 2.59 | -22.16 | 139.03 | -13.26 | 154.66 | 0.4983 | 947.3 | 748.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.99 | 139.05 | -13.24 | 154.53 | 0.4959 | 861.0 | 712.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.46 | 138.98 | -13.30 | 152.94 | 0.4758 | 896.0 | 755.4 | |
| 0.00 | 3.36 | 0.00 | 1.91 | -21.99 | 138.81 | -13.48 | 154.14 | 0.4975 | 640.0 | 698.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.34 | 138.61 | -13.68 | 154.13 | 0.5035 | 482.0 | 423.9 | |
| 1.54 | 6.89 | 0.88 | 3.95 | -21.97 | 138.30 | -13.98 | 153.29 | 0.5006 | 829.5 | 460.0 | |
| 0.64 | -24.00 | 0.36 | -24.00 | -22.00 | 138.13 | -14.16 | 153.05 | 0.5023 | 813.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -21.57 | 137.60 | -14.69 | 151.76 | 0.5003 | 765.0 | 609.1 | |
| 0.00 | 9.43 | 0.00 | 5.45 | -22.21 | 136.64 | -15.64 | 150.91 | 0.5154 | -953.0 | -740.6 | |
| 3.45 | 3.63 | 2.02 | 2.13 | -23.59 | 136.24 | -16.05 | 151.67 | 0.5359 | 645.9 | 515.0 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -23.29 | 135.93 | -16.36 | 150.92 | 0.5343 | -870.0 | -695.3 | |
| 7.98 | 97.70 | 4.63 | 56.89 | -22.36 | 135.87 | -16.42 | 149.90 | 0.5231 | -1039.8 | -545.1 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -23.19 | 135.67 | -16.62 | 150.44 | 0.5350 | -815.0 | -556.3 | |
| 3.18 | -30.00 | 1.85 | -30.00 | -22.37 | 135.60 | -16.69 | 149.49 | 0.5252 | -1003.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -23.13 | 135.50 | -16.79 | 150.13 | 0.5354 | -640.0 | -556.6 | |
| 1.45 | -30.00 | 0.84 | -30.00 | -22.34 | 135.36 | -16.93 | 149.11 | 0.5267 | -1014.7 | 999999 | |
| 15.24 | -30.00 | 8.90 | -30.00 | -22.42 | 134.83 | -17.46 | 148.43 | 0.5318 | -1019.5 | 999999 | |
| 3.27 | 10.52 | 1.93 | 6.23 | -23.70 | 134.62 | -17.66 | 149.46 | 0.5489 | -864.9 | -484.7 | |
| 1.27 | -30.00 | 0.74 | -30.00 | -22.66 | 134.76 | -17.52 | 148.59 | 0.5352 | -675.3 | 999999 | |
| 5.17 | -30.00 | 3.02 | -30.00 | -22.23 | 134.37 | -17.92 | 147.57 | 0.5330 | -819.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -24.38 | 133.93 | -18.36 | 149.19 | 0.5623 | -886.0 | -748.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -24.91 | 133.74 | -18.55 | 149.47 | 0.5700 | -606.0 | -459.1 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -23.06 | 133.94 | -18.34 | 147.86 | 0.5464 | -745.0 | -565.3 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -24.19 | 133.39 | -18.90 | 148.28 | 0.5640 | -800.0 | -683.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -24.61 | 133.29 | -19.00 | 148.57 | 0.5697 | -709.0 | -537.9 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -22.97 | 133.47 | -18.82 | 147.11 | 0.5491 | -653.0 | -526.7 | |
| 1.18 | 1.09 | 0.71 | 0.66 | -24.58 | 133.12 | -19.17 | 148.32 | 0.5707 | -689.3 | -756.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -23.85 | 133.13 | -19.16 | 147.58 | 0.5620 | -862.0 | -773.7 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -24.05 | 133.09 | -19.19 | 147.75 | 0.5647 | -771.0 | -640.1 | |
| 0.00 | 5.99 | 0.00 | 3.59 | -23.89 | 132.70 | -19.59 | 147.06 | 0.5659 | -994.0 | -782.8 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -24.25 | 132.39 | -19.90 | 147.03 | 0.5724 | -727.0 | -577.9 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -23.90 | 132.30 | -19.98 | 146.56 | 0.5691 | -439.0 | -539.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
