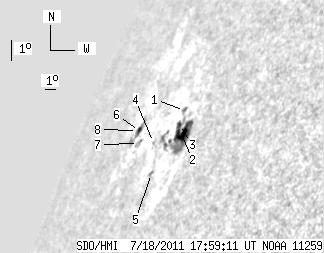

SDO HMI 2011-07-18 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.42 | 75.57 | 23.80 | 125.09 | 24.55 | 78.91 | -72.82 | 65.68 | 0.9544 | -259.7 | -75.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.36 | 0.00 | 5.39 | 25.37 | 79.47 | -72.26 | 64.81 | 0.9524 | -320.0 | -187.5 | |
| 10.70 | 53.52 | 16.58 | 83.54 | 24.65 | 80.18 | -71.56 | 65.52 | 0.9487 | -507.3 | -166.7 | |
| 0.54 | -2.00 | 0.87 | -2.00 | 24.91 | 79.59 | -72.14 | 65.28 | 0.9517 | -315.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 1.91 | 24.17 | 77.68 | -74.05 | 66.15 | 0.9604 | 478.0 | 442.5 | |
| 0.00 | 2.09 | 0.00 | 3.44 | 23.23 | 78.85 | -72.88 | 67.09 | 0.9548 | 400.0 | 362.7 | |
| 2.00 | 11.43 | 3.96 | 22.95 | 24.36 | 75.48 | -76.25 | 66.01 | 0.9696 | 277.8 | -4.9 | |
| 0.00 | 4.08 | 0.00 | 7.86 | 24.00 | 76.00 | -75.74 | 66.37 | 0.9675 | 430.0 | 308.0 | |
| 1.18 | -6.00 | 2.39 | -6.00 | 24.37 | 75.17 | -76.56 | 66.01 | 0.9708 | -259.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
