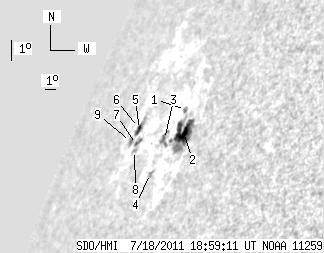

SDO HMI 2011-07-18 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.85 | 74.39 | 42.67 | 120.72 | 24.45 | 78.63 | -72.55 | 65.77 | 0.9530 | -314.2 | -18.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.99 | 0.00 | 4.68 | 25.38 | 79.46 | -71.72 | 64.77 | 0.9498 | -370.0 | -207.0 | |
| 21.32 | 43.36 | 32.03 | 65.30 | 24.67 | 80.24 | -70.94 | 65.47 | 0.9456 | -528.9 | -228.1 | |
| 0.00 | 6.80 | 0.00 | 11.01 | 24.32 | 78.67 | -72.51 | 65.93 | 0.9533 | 442.0 | 365.2 | |
| 0.00 | 3.54 | 0.00 | 5.69 | 23.19 | 78.69 | -72.49 | 67.11 | 0.9529 | 523.0 | 377.1 | |
| 2.90 | 8.80 | 5.60 | 17.02 | 24.40 | 75.42 | -75.76 | 65.96 | 0.9676 | 271.3 | 169.5 | |
| 1.18 | -5.00 | 2.31 | -5.00 | 24.45 | 75.19 | -75.99 | 65.92 | 0.9686 | -252.1 | 999999 | |
| 1.45 | 3.27 | 2.73 | 6.11 | 23.94 | 75.83 | -75.34 | 66.43 | 0.9659 | 259.8 | 400.2 | |
| 0.00 | 2.00 | 0.00 | 3.73 | 23.74 | 75.90 | -75.28 | 66.63 | 0.9656 | 99.0 | 82.5 | |
| 0.00 | 3.63 | 0.00 | 7.18 | 23.97 | 74.95 | -76.23 | 66.42 | 0.9694 | -379.0 | -313.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
