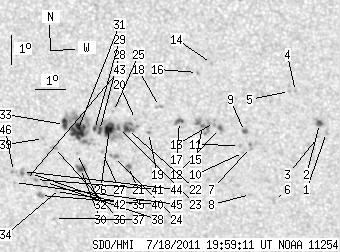

SDO HMI 2011-07-18 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.49 | 208.57 | 33.69 | 120.28 | -22.61 | 136.02 | -14.60 | 153.09 | 0.5143 | -342.2 | -267.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.92 | -22.32 | 143.08 | -7.54 | 164.99 | 0.4706 | 818.0 | 600.8 | |
| 3.08 | 4.54 | 1.73 | 2.54 | -22.02 | 142.87 | -7.76 | 164.40 | 0.4670 | 901.9 | 740.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -22.50 | 142.77 | -7.85 | 164.51 | 0.4745 | 624.0 | 581.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.94 | 142.13 | -8.49 | 162.26 | 0.4543 | 984.0 | 781.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.94 | 141.93 | -8.69 | 161.87 | 0.4553 | 677.0 | 586.3 | |
| 0.00 | 2.45 | 0.00 | 1.41 | -24.70 | 141.18 | -9.44 | 163.05 | 0.5132 | 647.0 | 473.9 | |
| 0.00 | 2.90 | 0.00 | 1.65 | -22.87 | 140.51 | -10.11 | 160.65 | 0.4903 | 678.0 | 724.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.50 | 140.38 | -10.24 | 161.58 | 0.5140 | 682.0 | 594.2 | |
| 2.36 | 2.72 | 1.33 | 1.54 | -22.33 | 140.35 | -10.27 | 159.96 | 0.4833 | 846.6 | 698.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.05 | 140.26 | -10.36 | 160.34 | 0.4941 | 579.0 | 471.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.81 | 140.14 | -10.48 | 159.96 | 0.4913 | 676.0 | 624.0 | |
| 1.63 | 3.63 | 0.92 | 2.06 | -22.24 | 139.52 | -11.11 | 158.41 | 0.4866 | 987.1 | 756.1 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -22.03 | 139.37 | -11.26 | 157.98 | 0.4846 | 902.0 | 843.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.04 | 139.42 | -11.20 | 156.31 | 0.4562 | 780.0 | 666.5 | |
| 1.27 | 11.52 | 0.72 | 6.53 | -22.18 | 138.95 | -11.67 | 157.38 | 0.4890 | 819.5 | 765.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.35 | 138.93 | -11.69 | 155.70 | 0.4636 | 846.0 | 696.5 | |
| 2.99 | 4.90 | 1.70 | 2.78 | -22.02 | 138.19 | -12.43 | 155.94 | 0.4914 | 782.8 | 571.3 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -21.52 | 137.56 | -13.06 | 154.41 | 0.4886 | 928.0 | 655.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.42 | 137.11 | -13.52 | 154.49 | 0.5037 | -596.0 | -442.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -21.98 | 136.71 | -13.91 | 153.43 | 0.5005 | -969.0 | -757.0 | |
| 2.27 | 4.54 | 1.32 | 2.64 | -23.60 | 136.30 | -14.32 | 154.29 | 0.5247 | 695.9 | 522.4 | |
| 4.44 | 54.42 | 2.55 | 31.31 | -22.33 | 136.40 | -14.22 | 153.27 | 0.5072 | -948.1 | -576.1 | |
| 1.63 | -22.00 | 0.94 | -22.00 | -22.30 | 136.10 | -14.52 | 152.76 | 0.5089 | -897.8 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.11 | -23.27 | 135.86 | -14.77 | 153.30 | 0.5232 | -874.0 | -669.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.72 | 135.99 | -14.63 | 152.02 | 0.5021 | 384.0 | 300.4 | |
| 9.16 | -22.00 | 5.27 | -22.00 | -22.31 | 135.79 | -14.83 | 152.28 | 0.5111 | -1089.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.14 | 135.46 | -15.16 | 152.57 | 0.5242 | -797.0 | -657.3 | |
| 2.63 | -22.00 | 1.52 | -22.00 | -22.38 | 135.44 | -15.18 | 151.81 | 0.5146 | -1039.3 | 999999 | |
| 1.54 | -22.00 | 0.89 | -22.00 | -22.35 | 135.28 | -15.35 | 151.52 | 0.5153 | -961.4 | 999999 | |
| 4.35 | 5.90 | 2.55 | 3.46 | -23.71 | 134.63 | -15.99 | 151.88 | 0.5372 | -941.4 | -770.7 | |
| 16.24 | 63.59 | 9.41 | 36.79 | -22.40 | 134.69 | -15.93 | 150.67 | 0.5202 | -1012.6 | -547.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -23.19 | 134.59 | -16.03 | 151.32 | 0.5309 | -671.0 | -494.5 | |
| 4.90 | -31.00 | 2.84 | -31.00 | -22.21 | 134.27 | -16.36 | 149.83 | 0.5209 | -840.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.42 | 133.84 | -16.78 | 151.42 | 0.5517 | -825.0 | -695.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -24.53 | 133.65 | -16.97 | 151.26 | 0.5544 | -618.0 | -486.6 | |
| 0.00 | 2.90 | 0.00 | 1.70 | -23.01 | 133.82 | -16.80 | 150.00 | 0.5342 | -789.0 | -669.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -25.48 | 133.48 | -17.14 | 151.91 | 0.5673 | -724.0 | -591.7 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -24.23 | 133.34 | -17.28 | 150.54 | 0.5528 | -538.0 | -543.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.71 | 133.48 | -17.14 | 149.19 | 0.5330 | -602.0 | -541.0 | |
| 0.00 | 3.72 | 0.00 | 2.22 | -24.69 | 133.10 | -17.52 | 150.65 | 0.5601 | -768.0 | -672.2 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -24.13 | 133.01 | -17.62 | 149.97 | 0.5540 | -800.0 | -646.8 | |
| 0.00 | 2.00 | 0.00 | 1.18 | -23.93 | 132.86 | -17.76 | 149.57 | 0.5526 | -852.0 | -737.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -24.18 | 132.65 | -17.97 | 149.53 | 0.5572 | -639.0 | -466.6 | |
| 0.00 | 3.36 | 0.00 | 1.99 | -23.87 | 132.59 | -18.03 | 149.13 | 0.5539 | -907.0 | -796.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -24.26 | 132.25 | -18.37 | 149.07 | 0.5611 | -698.0 | -568.5 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -23.87 | 132.27 | -18.35 | 148.71 | 0.5563 | -693.0 | -610.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
