SDO HMI 2011-07-18 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.05 | 199.96 | 34.48 | 114.86 | -22.52 | 136.12 | -13.95 | 154.07 | 0.5089 | -316.5 | -276.4 | |
|
previous
or next observation for the same group /

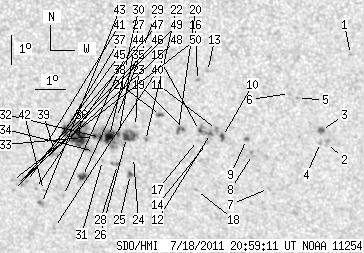

back to the solar disc SDO HMI 2011-07-18 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.43 | 143.94 | -6.13 | 166.13 | 0.4215 | 739.0 | 544.0 | |
| 0.00 | 2.72 | 0.00 | 1.53 | -22.45 | 143.02 | -7.05 | 166.00 | 0.4707 | 514.0 | 571.2 | |
| 3.36 | 3.81 | 1.88 | 2.13 | -22.01 | 142.88 | -7.19 | 165.47 | 0.4646 | 919.8 | 763.4 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -22.42 | 142.82 | -7.25 | 165.61 | 0.4710 | 789.0 | 556.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.93 | 142.14 | -7.93 | 163.36 | 0.4516 | 884.0 | 671.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.76 | 141.89 | -8.18 | 162.74 | 0.4503 | 712.0 | 575.3 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.02 | 140.98 | -9.09 | 163.23 | 0.5021 | 885.0 | 676.4 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -22.86 | 140.53 | -9.54 | 161.66 | 0.4873 | 660.0 | 710.1 | |
| 1.54 | 2.09 | 0.87 | 1.18 | -22.34 | 140.36 | -9.71 | 160.99 | 0.4808 | 846.1 | 917.0 | |
| 2.36 | 3.27 | 1.33 | 1.85 | -22.25 | 139.56 | -10.50 | 159.50 | 0.4836 | 951.1 | 772.4 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -22.02 | 139.38 | -10.69 | 158.98 | 0.4812 | 1055.0 | 923.8 | |
| 1.36 | 10.79 | 0.77 | 6.11 | -22.16 | 139.17 | -10.90 | 158.72 | 0.4844 | 985.0 | 720.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.06 | 139.23 | -10.84 | 157.02 | 0.4543 | 632.0 | 565.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.50 | 139.01 | -11.06 | 158.72 | 0.4901 | 523.0 | 474.4 | |
| 1.27 | -12.00 | 0.72 | -12.00 | -22.06 | 138.81 | -11.26 | 158.01 | 0.4851 | 763.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.37 | 138.87 | -11.19 | 156.64 | 0.4609 | 812.0 | 681.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.40 | 138.71 | -11.35 | 158.12 | 0.4904 | 474.0 | 288.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.13 | 138.53 | -11.54 | 159.17 | 0.5155 | 678.0 | 553.8 | |
| 1.00 | 4.54 | 0.57 | 2.57 | -22.00 | 138.28 | -11.79 | 157.03 | 0.4873 | 708.4 | 659.4 | |
| 0.82 | -19.00 | 0.46 | -19.00 | -22.04 | 138.11 | -11.96 | 156.76 | 0.4889 | 783.2 | 999999 | |
| 2.00 | 2.72 | 1.13 | 1.54 | -21.57 | 137.54 | -12.52 | 155.38 | 0.4860 | 782.2 | 534.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.44 | 136.96 | -13.11 | 155.18 | 0.5014 | -721.0 | -647.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.96 | 136.66 | -13.40 | 154.26 | 0.4969 | -621.0 | -564.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -23.03 | 136.49 | -13.58 | 154.96 | 0.5124 | -328.0 | -282.0 | |
| 1.63 | 2.54 | 0.95 | 1.47 | -23.62 | 136.33 | -13.74 | 155.22 | 0.5213 | 678.8 | 679.4 | |
| 4.35 | 114.20 | 2.49 | 65.72 | -22.35 | 136.32 | -13.74 | 154.06 | 0.5043 | -954.3 | -578.4 | |
| 1.72 | -26.00 | 0.99 | -26.00 | -22.25 | 136.06 | -14.01 | 153.54 | 0.5048 | -1009.5 | 999999 | |
| 1.54 | 3.08 | 0.89 | 1.79 | -23.28 | 135.92 | -14.15 | 154.28 | 0.5194 | -740.6 | -615.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -21.67 | 136.05 | -14.02 | 152.97 | 0.4972 | 180.0 | 144.1 | |
| 8.62 | -26.00 | 4.95 | -26.00 | -22.32 | 135.75 | -14.32 | 153.11 | 0.5079 | -1124.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.16 | 135.42 | -14.65 | 153.38 | 0.5210 | -781.0 | -600.3 | |
| 1.27 | -26.00 | 0.73 | -26.00 | -22.37 | 135.44 | -14.63 | 152.66 | 0.5105 | -1068.0 | 999999 | |
| 1.63 | -26.00 | 0.94 | -26.00 | -22.34 | 135.24 | -14.83 | 152.31 | 0.5116 | -1062.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.85 | 135.18 | -14.89 | 152.72 | 0.5187 | -655.0 | -579.5 | |
| 3.99 | 5.26 | 2.33 | 3.08 | -23.72 | 134.66 | -15.40 | 152.77 | 0.5335 | -996.9 | -764.5 | |
| 16.06 | -26.00 | 9.28 | -26.00 | -22.42 | 134.68 | -15.39 | 151.53 | 0.5165 | -1032.9 | 999999 | |
| 5.53 | -26.00 | 3.20 | -26.00 | -22.19 | 134.23 | -15.84 | 150.60 | 0.5169 | -846.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -24.40 | 133.92 | -16.15 | 152.31 | 0.5471 | -856.0 | -657.5 | |
| 0.00 | 3.36 | 0.00 | 1.96 | -22.99 | 133.82 | -16.24 | 150.80 | 0.5299 | -795.0 | -599.8 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -25.53 | 133.45 | -16.62 | 152.68 | 0.5645 | -664.0 | -562.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.72 | 133.48 | -16.59 | 150.02 | 0.5291 | -571.0 | -472.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.24 | 133.24 | -16.83 | 151.19 | 0.5498 | -630.0 | -470.0 | |
| 0.00 | 2.72 | 0.00 | 1.62 | -24.70 | 133.11 | -16.96 | 151.44 | 0.5564 | -793.0 | -703.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -24.18 | 132.97 | -17.10 | 150.75 | 0.5510 | -735.0 | -641.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -23.95 | 132.69 | -17.38 | 150.12 | 0.5501 | -1007.0 | -859.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -23.81 | 132.60 | -17.46 | 149.87 | 0.5490 | -807.0 | -569.1 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -23.99 | 132.47 | -17.59 | 149.86 | 0.5522 | -962.0 | -754.3 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -24.06 | 132.32 | -17.74 | 149.73 | 0.5542 | -638.0 | -557.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.27 | 132.19 | -17.88 | 149.75 | 0.5577 | -716.0 | -548.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -23.92 | 132.20 | -17.86 | 149.43 | 0.5534 | -732.0 | -645.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
