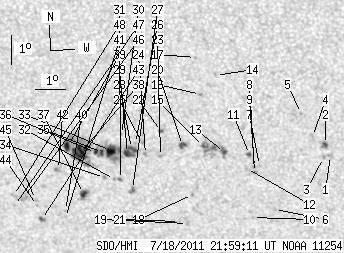

SDO HMI 2011-07-18 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.31 | 212.47 | 35.73 | 121.75 | -22.53 | 136.35 | -13.16 | 155.34 | 0.5041 | -275.3 | -171.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.12 | -22.33 | 143.07 | -6.45 | 167.09 | 0.4669 | 724.0 | 529.0 | |
| 2.09 | 3.81 | 1.16 | 2.13 | -21.96 | 142.92 | -6.60 | 166.61 | 0.4618 | 983.5 | 781.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -22.40 | 142.83 | -6.68 | 166.68 | 0.4688 | 787.0 | 605.9 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -21.69 | 142.50 | -7.01 | 165.64 | 0.4593 | 802.0 | 582.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.92 | 142.18 | -7.34 | 164.53 | 0.4490 | 781.0 | 696.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.22 | 141.09 | -8.43 | 164.50 | 0.5022 | 744.0 | 574.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.70 | 140.68 | -8.83 | 162.84 | 0.4819 | 717.0 | 625.8 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -22.95 | 140.50 | -9.01 | 162.67 | 0.4863 | 777.0 | 575.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.77 | 140.51 | -9.00 | 162.58 | 0.4837 | 1021.0 | 787.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.51 | 140.32 | -9.19 | 163.36 | 0.5096 | 725.0 | 567.1 | |
| 1.81 | 2.27 | 1.02 | 1.28 | -22.33 | 140.37 | -9.14 | 162.02 | 0.4779 | 790.8 | 904.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.81 | 140.24 | -9.27 | 162.11 | 0.4855 | 855.0 | 666.0 | |
| 1.72 | 23.40 | 0.97 | 13.22 | -22.27 | 139.54 | -9.97 | 160.47 | 0.4812 | 950.6 | 742.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.67 | 139.42 | -10.09 | 158.11 | 0.4445 | 918.0 | 740.5 | |
| 0.73 | -13.00 | 0.41 | -13.00 | -22.08 | 138.85 | -10.66 | 159.09 | 0.4821 | 805.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.32 | 138.88 | -10.63 | 157.66 | 0.4569 | 880.0 | 664.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.08 | 138.80 | -10.71 | 156.36 | 0.4397 | 798.0 | 616.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.74 | 138.35 | -11.17 | 159.50 | 0.5081 | 818.0 | 645.9 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -24.75 | 138.09 | -11.43 | 159.82 | 0.5236 | 749.0 | 512.4 | |
| 3.54 | 4.90 | 2.00 | 2.77 | -22.06 | 138.15 | -11.36 | 157.83 | 0.4857 | 753.9 | 394.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.69 | 137.82 | -11.69 | 159.34 | 0.5241 | 605.0 | 486.1 | |
| 1.63 | 2.00 | 0.92 | 1.13 | -21.59 | 137.49 | -12.03 | 156.26 | 0.4832 | 727.9 | 566.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.45 | 137.38 | -12.13 | 156.83 | 0.4956 | -555.0 | -449.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -22.39 | 136.88 | -12.63 | 155.93 | 0.4979 | -746.0 | -531.4 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -21.95 | 136.78 | -12.73 | 155.38 | 0.4924 | -823.0 | -740.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.02 | 136.58 | -12.94 | 155.09 | 0.4947 | -839.0 | -578.0 | |
| 1.54 | 3.36 | 0.89 | 1.94 | -23.60 | 136.32 | -13.19 | 156.07 | 0.5178 | 781.5 | 564.5 | |
| 3.90 | 112.12 | 2.23 | 64.39 | -22.19 | 136.42 | -13.09 | 155.00 | 0.4981 | -1010.8 | -574.4 | |
| 4.26 | -28.00 | 2.44 | -28.00 | -22.37 | 136.27 | -13.24 | 154.90 | 0.5014 | -939.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.72 | 136.13 | -13.38 | 154.07 | 0.4936 | 512.0 | 370.0 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -23.27 | 135.94 | -13.57 | 155.18 | 0.5156 | -834.0 | -676.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.27 | 135.74 | -13.77 | 154.86 | 0.5169 | -807.0 | -590.1 | |
| 8.89 | -28.00 | 5.09 | -28.00 | -22.27 | 135.71 | -13.81 | 153.89 | 0.5039 | -1086.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -23.21 | 135.40 | -14.11 | 154.28 | 0.5182 | -803.0 | -632.8 | |
| 2.27 | -28.00 | 1.30 | -28.00 | -22.35 | 135.43 | -14.09 | 153.51 | 0.5067 | -1023.9 | 999999 | |
| 1.72 | -28.00 | 0.99 | -28.00 | -22.35 | 135.19 | -14.33 | 153.14 | 0.5084 | -1009.1 | 999999 | |
| 3.81 | 7.53 | 2.22 | 4.40 | -23.78 | 134.62 | -14.89 | 153.59 | 0.5308 | -1010.4 | -552.9 | |
| 18.32 | -28.00 | 10.56 | -28.00 | -22.40 | 134.64 | -14.87 | 152.31 | 0.5128 | -1020.5 | 999999 | |
| 4.54 | -28.00 | 2.61 | -28.00 | -22.17 | 134.25 | -15.26 | 151.48 | 0.5125 | -801.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.38 | 133.92 | -15.59 | 153.10 | 0.5433 | -719.0 | -599.3 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -24.63 | 133.89 | -15.62 | 153.28 | 0.5466 | -557.0 | -434.5 | |
| 0.00 | 3.54 | 0.00 | 2.06 | -22.97 | 133.85 | -15.66 | 151.66 | 0.5256 | -776.0 | -544.1 | |
| 1.54 | 2.63 | 0.92 | 1.56 | -24.72 | 133.04 | -16.47 | 152.15 | 0.5534 | -749.1 | -646.3 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -24.23 | 132.97 | -16.55 | 151.58 | 0.5478 | -745.0 | -645.3 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -24.03 | 132.92 | -16.59 | 151.32 | 0.5455 | -593.0 | -509.4 | |
| 0.00 | 4.81 | 0.00 | 2.84 | -23.97 | 132.51 | -17.00 | 150.68 | 0.5477 | -823.0 | -820.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -24.25 | 132.16 | -17.35 | 150.47 | 0.5538 | -648.0 | -521.7 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -23.91 | 132.17 | -17.34 | 150.14 | 0.5494 | -540.0 | -547.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
