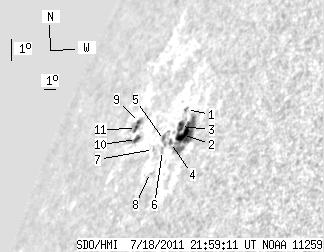

SDO HMI 2011-07-18 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.60 | 74.22 | 27.97 | 110.67 | 24.51 | 78.63 | -70.88 | 65.63 | 0.9448 | -117.3 | -154.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 3.02 | 25.37 | 79.47 | -70.04 | 64.66 | 0.9411 | -314.0 | -229.4 | |
| 8.44 | 44.90 | 11.86 | 62.78 | 24.59 | 80.09 | -69.43 | 65.46 | 0.9374 | -587.6 | -383.4 | |
| 4.17 | -2.00 | 5.99 | -2.00 | 24.82 | 79.60 | -69.91 | 65.25 | 0.9402 | -272.1 | 999999 | |
| 0.91 | 2.00 | 1.31 | 2.90 | 24.26 | 79.31 | -70.20 | 65.85 | 0.9415 | -102.4 | 30.2 | |
| 0.00 | 4.90 | 0.00 | 7.33 | 24.28 | 78.68 | -70.84 | 65.87 | 0.9449 | 301.0 | 382.3 | |
| 0.00 | 2.54 | 0.00 | 3.76 | 23.97 | 78.88 | -70.63 | 66.20 | 0.9437 | 401.0 | 378.3 | |
| 0.00 | 1.09 | 0.00 | 1.68 | 23.93 | 77.99 | -71.53 | 66.28 | 0.9483 | 555.0 | 533.2 | |
| 0.00 | 1.00 | 0.00 | 1.49 | 23.22 | 78.60 | -70.91 | 67.01 | 0.9449 | 407.0 | 453.5 | |
| 0.63 | 8.53 | 1.12 | 15.20 | 24.63 | 75.34 | -74.17 | 65.68 | 0.9610 | 352.3 | -10.8 | |
| 3.36 | 7.17 | 5.77 | 12.51 | 24.10 | 75.82 | -73.70 | 66.21 | 0.9587 | 431.8 | -80.3 | |
| 1.09 | -9.00 | 1.92 | -9.00 | 24.43 | 75.30 | -74.22 | 65.89 | 0.9611 | 328.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
