SDO HMI 2011-07-18 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.21 | 233.88 | 17.88 | 125.92 | 16.74 | 168.88 | 19.92 | 303.32 | 0.3925 | -699.2 | -381.3 | |
|
previous
or next observation for the same group /

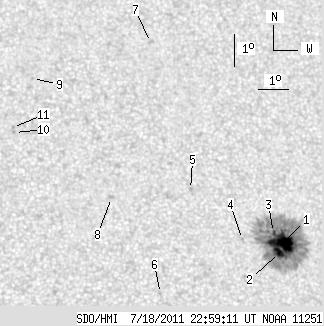

back to the solar disc SDO HMI 2011-07-18 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.31 | 223.71 | 14.17 | 120.53 | 16.67 | 169.14 | 20.18 | 302.79 | 0.3948 | -1260.1 | -428.8 | |
| 5.81 | -1.00 | 3.12 | -1.00 | 16.36 | 169.00 | 20.04 | 302.26 | 0.3905 | -1462.4 | 999999 | |
| 1.09 | -1.00 | 0.59 | -1.00 | 16.99 | 168.87 | 19.91 | 303.82 | 0.3937 | -943.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 16.80 | 167.80 | 18.84 | 304.75 | 0.3779 | -808.0 | -674.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 18.40 | 166.22 | 17.26 | 310.57 | 0.3722 | 743.0 | 579.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 15.19 | 164.93 | 15.97 | 304.97 | 0.3255 | 838.0 | 614.5 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 23.09 | 165.40 | 16.44 | 320.80 | 0.4136 | 680.0 | 542.9 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 18.21 | 163.57 | 14.61 | 314.67 | 0.3383 | 880.0 | 694.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 22.02 | 161.26 | 12.30 | 326.64 | 0.3608 | 912.0 | 752.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 20.31 | 160.52 | 11.56 | 325.29 | 0.3315 | 882.0 | 760.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 20.47 | 160.47 | 11.51 | 325.70 | 0.3331 | 753.0 | 723.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
