SDO HMI 2011-07-18 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.43 | 214.18 | 34.56 | 122.56 | -22.59 | 136.29 | -12.67 | 156.22 | 0.5019 | -315.4 | -188.4 | |
|
previous
or next observation for the same group /

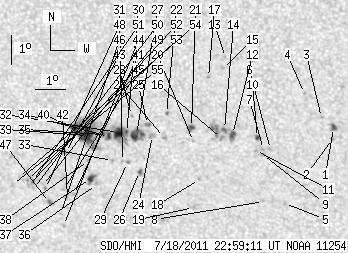

back to the solar disc SDO HMI 2011-07-18 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 4.26 | 1.47 | 2.38 | -21.98 | 142.89 | -6.07 | 167.66 | 0.4604 | 919.5 | 769.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.36 | 142.84 | -6.12 | 167.75 | 0.4663 | 845.0 | 695.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.64 | 142.51 | -6.45 | 166.73 | 0.4566 | 771.0 | 603.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.84 | 141.99 | -6.97 | 165.22 | 0.4464 | 862.0 | 694.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.62 | 141.12 | -7.84 | 165.75 | 0.5059 | 724.0 | 609.0 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -22.76 | 140.76 | -8.20 | 164.03 | 0.4800 | 862.0 | 693.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.76 | 140.53 | -8.43 | 163.61 | 0.4811 | 705.0 | 671.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -24.56 | 140.41 | -8.55 | 164.49 | 0.5078 | 724.0 | 522.5 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -22.93 | 140.48 | -8.48 | 163.63 | 0.4838 | 751.0 | 586.4 | |
| 1.54 | 2.27 | 0.87 | 1.28 | -22.35 | 140.35 | -8.61 | 163.02 | 0.4759 | 826.4 | 676.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.80 | 140.26 | -8.70 | 163.14 | 0.4828 | 710.0 | 603.6 | |
| 3.54 | 25.94 | 1.99 | 14.62 | -22.26 | 139.52 | -9.44 | 161.43 | 0.4784 | 964.3 | 716.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.66 | 139.46 | -9.50 | 159.27 | 0.4410 | 853.0 | 729.3 | |
| 1.63 | -12.00 | 0.92 | -12.00 | -22.09 | 139.27 | -9.69 | 160.85 | 0.4773 | 1013.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.03 | 139.34 | -9.62 | 159.35 | 0.4470 | 829.0 | 595.5 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -22.40 | 139.15 | -9.81 | 160.85 | 0.4823 | 710.0 | 629.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.34 | 138.86 | -10.10 | 158.68 | 0.4542 | 796.0 | 654.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.83 | 138.30 | -10.66 | 160.41 | 0.5069 | 694.0 | 620.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -24.81 | 138.01 | -10.95 | 160.63 | 0.5220 | 651.0 | 533.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.52 | 138.20 | -10.76 | 159.26 | 0.4889 | 550.0 | 336.9 | |
| 1.91 | 3.81 | 1.08 | 2.15 | -22.04 | 138.17 | -10.79 | 158.83 | 0.4823 | 867.7 | 690.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.58 | 137.37 | -11.59 | 157.02 | 0.4804 | 819.0 | 687.0 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -22.40 | 137.23 | -11.72 | 157.49 | 0.4927 | -541.0 | -604.4 | |
| 0.00 | 3.90 | 0.00 | 2.22 | -22.34 | 136.84 | -12.12 | 156.75 | 0.4942 | -403.0 | -411.7 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -21.96 | 136.70 | -12.26 | 156.20 | 0.4899 | -977.0 | -762.1 | |
| 1.45 | 1.72 | 0.84 | 0.99 | -23.59 | 136.28 | -12.68 | 156.89 | 0.5146 | 749.2 | 627.5 | |
| 9.71 | 109.31 | 5.54 | 62.63 | -22.31 | 136.30 | -12.66 | 155.83 | 0.4971 | -928.6 | -572.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.67 | 136.19 | -12.77 | 155.05 | 0.4890 | 565.0 | 354.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -23.28 | 135.90 | -13.06 | 156.02 | 0.5127 | -666.0 | -627.7 | |
| 1.18 | -27.00 | 0.67 | -27.00 | -22.25 | 135.97 | -12.99 | 155.21 | 0.4984 | -1040.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -23.25 | 135.73 | -13.23 | 155.72 | 0.5133 | -840.0 | -504.8 | |
| 7.26 | -27.00 | 4.15 | -27.00 | -22.26 | 135.70 | -13.26 | 154.77 | 0.5002 | -1171.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -23.22 | 135.39 | -13.57 | 155.16 | 0.5151 | -784.0 | -570.1 | |
| 2.72 | -27.00 | 1.56 | -27.00 | -22.40 | 135.34 | -13.62 | 154.33 | 0.5044 | -1005.4 | 999999 | |
| 1.72 | -27.00 | 0.99 | -27.00 | -22.34 | 135.15 | -13.81 | 153.95 | 0.5048 | -1011.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -24.07 | 134.75 | -14.21 | 154.90 | 0.5303 | -162.0 | -179.2 | |
| 3.18 | 5.90 | 1.85 | 3.44 | -23.86 | 134.57 | -14.39 | 154.44 | 0.5288 | -997.5 | -765.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.24 | 134.57 | -14.39 | 153.88 | 0.5206 | -807.0 | -669.9 | |
| 16.33 | -27.00 | 9.39 | -27.00 | -22.38 | 134.60 | -14.36 | 153.11 | 0.5091 | -1019.8 | 999999 | |
| 4.81 | -27.00 | 2.76 | -27.00 | -22.15 | 134.21 | -14.75 | 152.27 | 0.5087 | -861.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.43 | 133.92 | -15.04 | 153.96 | 0.5404 | -829.0 | -621.0 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -24.51 | 133.70 | -15.26 | 153.71 | 0.5428 | -792.0 | -597.0 | |
| 0.00 | 3.27 | 0.00 | 1.89 | -22.98 | 133.81 | -15.15 | 152.46 | 0.5223 | -884.0 | -592.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -25.53 | 133.43 | -15.53 | 154.22 | 0.5576 | -787.0 | -577.4 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.27 | 133.59 | -15.37 | 153.33 | 0.5404 | -815.0 | -661.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -25.11 | 133.38 | -15.58 | 153.78 | 0.5526 | -595.0 | -329.9 | |
| 0.82 | 2.81 | 0.48 | 1.67 | -24.73 | 133.04 | -15.92 | 152.96 | 0.5499 | -895.8 | -706.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -24.25 | 132.97 | -15.99 | 152.40 | 0.5443 | -734.0 | -621.0 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -24.14 | 132.88 | -16.08 | 152.17 | 0.5436 | -551.0 | -614.4 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.26 | 132.55 | -16.41 | 151.81 | 0.5473 | -367.0 | -282.1 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -24.01 | 132.55 | -16.41 | 151.57 | 0.5442 | -1060.0 | -918.0 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -24.16 | 132.39 | -16.57 | 151.48 | 0.5471 | -587.0 | -584.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.95 | 132.38 | -16.58 | 151.27 | 0.5446 | -840.0 | -759.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -23.89 | 132.08 | -16.88 | 150.77 | 0.5460 | -694.0 | -547.0 | |
| 0.00 | 1.81 | 0.00 | 1.08 | -24.14 | 131.83 | -17.13 | 150.67 | 0.5508 | -626.0 | -470.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
