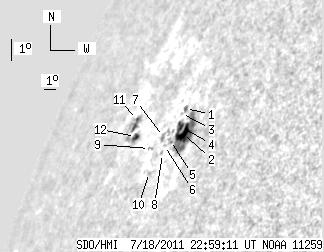

SDO HMI 2011-07-18 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.97 | 79.39 | 25.98 | 114.91 | 24.54 | 78.72 | -70.24 | 65.55 | 0.9414 | -169.3 | -144.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 2.96 | 25.38 | 79.40 | -69.56 | 64.62 | 0.9385 | -312.0 | -200.7 | |
| 9.98 | 49.89 | 13.69 | 68.13 | 24.60 | 80.09 | -68.87 | 65.40 | 0.9343 | -607.8 | -382.1 | |
| 0.00 | 0.91 | 0.00 | 1.29 | 25.20 | 79.24 | -69.72 | 64.82 | 0.9393 | -196.0 | -170.0 | |
| 4.08 | -2.00 | 5.72 | -2.00 | 24.80 | 79.65 | -69.31 | 65.22 | 0.9369 | -293.6 | 999999 | |
| 0.00 | 2.00 | 0.00 | 2.84 | 24.31 | 79.29 | -69.67 | 65.77 | 0.9386 | -117.0 | -31.3 | |
| 0.00 | 1.09 | 0.00 | 1.57 | 24.11 | 78.94 | -70.02 | 66.00 | 0.9404 | 410.0 | 310.2 | |
| 0.00 | 3.54 | 0.00 | 5.20 | 24.38 | 78.50 | -70.46 | 65.75 | 0.9429 | 422.0 | 379.3 | |
| 0.00 | 1.18 | 0.00 | 1.69 | 23.86 | 79.06 | -69.90 | 66.27 | 0.9397 | 356.0 | 368.3 | |
| 0.00 | 1.36 | 0.00 | 2.07 | 23.92 | 77.66 | -71.30 | 66.29 | 0.9471 | 447.0 | 495.1 | |
| 0.00 | 1.91 | 0.00 | 2.78 | 23.20 | 78.58 | -70.38 | 67.00 | 0.9420 | 431.0 | 385.1 | |
| 0.73 | 7.35 | 1.26 | 12.74 | 24.70 | 75.17 | -73.79 | 65.59 | 0.9593 | 304.8 | 79.8 | |
| 3.18 | 8.07 | 5.31 | 13.64 | 24.17 | 75.74 | -73.22 | 66.12 | 0.9565 | 456.1 | 64.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
