SDO HMI 2011-07-18 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.07 | 209.21 | 32.53 | 119.41 | -22.61 | 136.37 | -12.03 | 157.31 | 0.4986 | -266.3 | -210.1 | |
|
previous
or next observation for the same group /

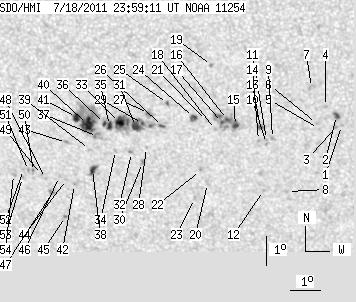

back to the solar disc SDO HMI 2011-07-18 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.27 | 143.05 | -5.35 | 169.20 | 0.4627 | 754.0 | 626.9 | |
| 2.63 | 3.08 | 1.46 | 1.72 | -21.93 | 142.90 | -5.51 | 168.75 | 0.4580 | 957.2 | 869.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.34 | 142.85 | -5.56 | 168.84 | 0.4644 | 857.0 | 637.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.63 | 142.55 | -5.86 | 167.90 | 0.4545 | 680.0 | 582.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.38 | 142.29 | -6.12 | 167.76 | 0.4668 | 413.0 | 426.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.21 | 142.23 | -6.18 | 167.56 | 0.4644 | 701.0 | 531.6 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -20.99 | 142.12 | -6.29 | 166.69 | 0.4463 | 665.0 | 705.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.57 | 141.14 | -7.27 | 166.73 | 0.5032 | 702.0 | 619.1 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -22.74 | 140.74 | -7.67 | 165.01 | 0.4777 | 880.0 | 666.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.92 | 140.53 | -7.88 | 164.73 | 0.4812 | 813.0 | 654.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.78 | 140.54 | -7.87 | 164.66 | 0.4791 | 759.0 | 612.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -24.55 | 140.33 | -8.08 | 165.30 | 0.5058 | 743.0 | 612.8 | |
| 2.27 | 2.45 | 1.27 | 1.38 | -22.37 | 140.36 | -8.05 | 164.08 | 0.4738 | 894.3 | 941.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.82 | 140.27 | -8.14 | 164.19 | 0.4808 | 751.0 | 597.8 | |
| 2.54 | 25.22 | 1.43 | 14.20 | -22.31 | 139.53 | -8.87 | 162.50 | 0.4766 | 981.8 | 779.3 | |
| 1.72 | -15.00 | 0.97 | -15.00 | -22.11 | 139.28 | -9.13 | 161.89 | 0.4749 | 1031.1 | 999999 | |
| 1.45 | -15.00 | 0.82 | -15.00 | -22.21 | 139.11 | -9.30 | 161.65 | 0.4772 | 901.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.46 | 138.86 | -9.55 | 161.37 | 0.4819 | 265.0 | 152.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.29 | 138.87 | -9.54 | 159.72 | 0.4504 | 846.0 | 582.9 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -24.33 | 138.45 | -9.96 | 161.95 | 0.5107 | 563.0 | 513.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.15 | 138.58 | -9.83 | 160.64 | 0.4790 | 564.0 | 338.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.88 | 138.24 | -10.16 | 161.30 | 0.5052 | 743.0 | 692.7 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -24.86 | 137.96 | -10.45 | 161.49 | 0.5204 | 488.0 | 442.4 | |
| 2.27 | 4.17 | 1.28 | 2.35 | -22.06 | 138.15 | -10.26 | 159.79 | 0.4798 | 706.2 | 746.6 | |
| 0.91 | 1.54 | 0.51 | 0.87 | -21.59 | 137.32 | -11.09 | 157.92 | 0.4778 | 593.9 | 486.1 | |
| 1.63 | 2.09 | 0.93 | 1.18 | -22.38 | 137.08 | -11.32 | 158.17 | 0.4902 | -647.3 | -636.8 | |
| 1.63 | 5.26 | 0.93 | 2.98 | -21.95 | 136.65 | -11.76 | 157.05 | 0.4867 | -911.1 | -513.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.11 | 136.48 | -11.93 | 157.74 | 0.5038 | -555.0 | -376.7 | |
| 1.27 | 53.16 | 0.72 | 30.31 | -22.29 | 136.42 | -11.99 | 156.95 | 0.4928 | -971.3 | -672.7 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -23.64 | 136.30 | -12.11 | 157.86 | 0.5121 | 826.0 | 712.0 | |
| 6.26 | -29.00 | 3.57 | -29.00 | -22.40 | 136.17 | -12.23 | 156.63 | 0.4958 | -931.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -23.30 | 135.96 | -12.45 | 157.02 | 0.5094 | -739.0 | -573.0 | |
| 4.45 | -29.00 | 2.54 | -29.00 | -22.27 | 135.65 | -12.76 | 155.62 | 0.4973 | -1189.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -23.24 | 135.42 | -12.99 | 156.10 | 0.5118 | -774.0 | -539.6 | |
| 3.45 | -29.00 | 1.97 | -29.00 | -22.38 | 135.30 | -13.11 | 155.14 | 0.5010 | -1021.1 | 999999 | |
| 1.54 | -29.00 | 0.88 | -29.00 | -22.32 | 135.13 | -13.27 | 154.82 | 0.5011 | -906.8 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.76 | -22.77 | 134.85 | -13.56 | 154.77 | 0.5090 | -619.0 | -711.6 | |
| 3.81 | 6.35 | 2.22 | 3.70 | -23.91 | 134.56 | -13.85 | 155.32 | 0.5261 | -1014.6 | -687.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -23.22 | 134.53 | -13.88 | 154.67 | 0.5171 | -799.0 | -627.1 | |
| 14.70 | 49.35 | 8.43 | 28.24 | -22.36 | 134.55 | -13.85 | 153.91 | 0.5055 | -1049.0 | -584.3 | |
| 4.54 | -40.00 | 2.60 | -40.00 | -22.13 | 134.20 | -14.20 | 153.13 | 0.5048 | -880.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.45 | 133.88 | -14.53 | 154.75 | 0.5374 | -806.0 | -597.2 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -23.00 | 133.77 | -14.64 | 153.27 | 0.5191 | -811.0 | -616.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -24.28 | 133.62 | -14.79 | 154.21 | 0.5368 | -821.0 | -677.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -25.58 | 133.43 | -14.98 | 155.05 | 0.5549 | -651.0 | -582.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.18 | 133.39 | -15.02 | 153.78 | 0.5370 | -588.0 | -501.5 | |
| 0.00 | 3.08 | 0.00 | 1.82 | -24.75 | 133.08 | -15.33 | 153.83 | 0.5463 | -849.0 | -734.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.26 | 132.90 | -15.51 | 153.12 | 0.5413 | -813.0 | -646.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -24.13 | 132.78 | -15.63 | 152.82 | 0.5404 | -793.0 | -631.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -24.03 | 132.51 | -15.90 | 152.34 | 0.5409 | -919.0 | -812.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -24.00 | 132.34 | -16.07 | 152.06 | 0.5417 | -958.0 | -720.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -23.97 | 132.17 | -16.24 | 151.79 | 0.5425 | -779.0 | -561.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -24.25 | 132.10 | -16.31 | 151.95 | 0.5465 | -761.0 | -558.8 | |
| 0.00 | 2.09 | 0.00 | 1.23 | -24.15 | 131.80 | -16.61 | 151.43 | 0.5474 | -687.0 | -547.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
