SDO HMI 2011-07-18 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 80.21 | 24.70 | 113.21 | 24.54 | 78.75 | -69.65 | 65.51 | 0.9382 | -192.5 | -183.7 | |
|
previous
or next observation for the same group /

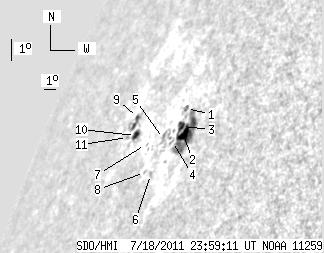

back to the solar disc SDO HMI 2011-07-18 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 4.02 | 25.36 | 79.43 | -68.97 | 64.59 | 0.9353 | -362.0 | -223.7 | |
| 8.26 | 52.35 | 11.06 | 69.98 | 24.55 | 80.13 | -68.27 | 65.41 | 0.9308 | -696.8 | -367.4 | |
| 4.63 | -2.00 | 6.34 | -2.00 | 24.78 | 79.68 | -68.73 | 65.20 | 0.9336 | -290.7 | 999999 | |
| 0.00 | 2.27 | 0.00 | 3.13 | 24.27 | 79.44 | -68.96 | 65.77 | 0.9346 | -131.0 | -46.7 | |
| 0.00 | 4.63 | 0.00 | 6.63 | 24.30 | 78.54 | -69.87 | 65.80 | 0.9397 | 374.0 | 359.8 | |
| 0.00 | 1.91 | 0.00 | 2.70 | 23.12 | 78.69 | -69.72 | 67.04 | 0.9384 | 362.0 | 262.2 | |
| 0.00 | 0.36 | 0.00 | 0.55 | 23.99 | 77.10 | -71.31 | 66.21 | 0.9472 | 166.0 | 237.2 | |
| 0.00 | 0.64 | 0.00 | 0.93 | 23.14 | 78.08 | -70.33 | 67.06 | 0.9417 | 258.0 | 223.0 | |
| 1.00 | 7.89 | 1.68 | 13.34 | 24.74 | 75.13 | -73.28 | 65.53 | 0.9569 | 311.6 | 18.6 | |
| 3.45 | 5.26 | 5.62 | 8.56 | 24.19 | 75.73 | -72.68 | 66.08 | 0.9540 | 436.6 | 367.6 | |
| 0.00 | 2.00 | 0.00 | 3.37 | 24.07 | 74.98 | -73.43 | 66.24 | 0.9575 | -197.0 | -183.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
