SDO HMI 2011-07-19 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.59 | 78.15 | 23.86 | 103.05 | 24.58 | 78.82 | -67.94 | 65.34 | 0.9284 | -171.9 | -182.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

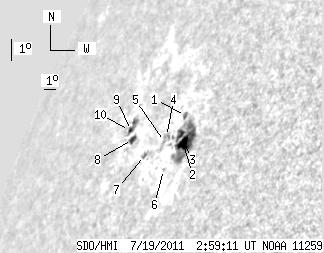

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.18 | 0.00 | 4.13 | 25.39 | 79.38 | -67.38 | 64.43 | 0.9261 | -362.0 | -225.4 | |
| 7.80 | 53.27 | 9.81 | 67.03 | 24.52 | 80.17 | -66.59 | 65.30 | 0.9207 | -746.2 | -382.5 | |
| 3.81 | -2.00 | 4.90 | -2.00 | 24.78 | 79.63 | -67.13 | 65.07 | 0.9241 | -354.5 | 999999 | |
| 0.00 | 3.36 | 0.00 | 4.49 | 24.63 | 78.54 | -68.21 | 65.32 | 0.9305 | 324.0 | 222.2 | |
| 0.00 | 1.27 | 0.00 | 1.70 | 24.46 | 78.55 | -68.20 | 65.50 | 0.9303 | 336.0 | 272.8 | |
| 0.00 | 1.18 | 0.00 | 1.52 | 23.60 | 79.42 | -67.34 | 66.36 | 0.9247 | -114.0 | -105.2 | |
| 0.00 | 1.91 | 0.00 | 2.67 | 23.91 | 77.33 | -69.43 | 66.19 | 0.9370 | 568.0 | 479.1 | |
| 3.72 | 4.63 | 5.62 | 7.00 | 24.31 | 75.62 | -71.14 | 65.87 | 0.9463 | 457.4 | 312.7 | |
| 1.72 | 9.35 | 2.68 | 14.51 | 24.58 | 75.15 | -71.61 | 65.62 | 0.9488 | 335.1 | 315.7 | |
| 0.54 | -9.00 | 0.85 | -9.00 | 24.56 | 74.95 | -71.80 | 65.65 | 0.9498 | -145.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
