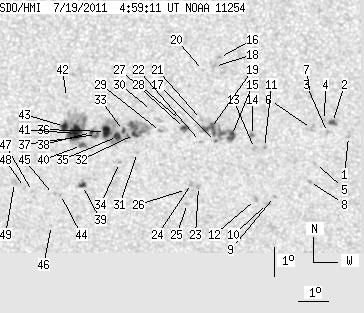

SDO HMI 2011-07-19 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.97 | 246.23 | 40.04 | 138.91 | -22.49 | 136.71 | -8.95 | 162.62 | 0.4815 | -38.4 | -132.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.37 | 143.53 | -2.13 | 175.69 | 0.4581 | 652.0 | 574.9 | |
| 3.63 | 4.99 | 2.01 | 2.77 | -21.89 | 143.02 | -2.64 | 174.53 | 0.4514 | 939.5 | 466.5 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -22.24 | 142.84 | -2.82 | 174.26 | 0.4570 | 718.0 | 509.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.83 | 142.75 | -2.91 | 173.98 | 0.4507 | 948.0 | 815.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -23.30 | 142.42 | -3.24 | 173.69 | 0.4741 | 638.0 | 554.5 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -22.10 | 142.32 | -3.34 | 173.17 | 0.4558 | 744.0 | 654.9 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -20.95 | 142.31 | -3.35 | 172.82 | 0.4378 | 824.0 | 672.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.93 | 142.21 | -3.45 | 173.44 | 0.4840 | 733.0 | 617.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.46 | 141.02 | -4.64 | 171.40 | 0.4944 | 803.0 | 592.4 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -24.70 | 140.77 | -4.89 | 171.04 | 0.4987 | 659.0 | 526.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.76 | 140.75 | -4.91 | 170.27 | 0.4694 | 818.0 | 674.7 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -24.57 | 140.38 | -5.29 | 170.27 | 0.4976 | 763.0 | 709.8 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -22.80 | 140.41 | -5.25 | 169.64 | 0.4709 | 893.0 | 679.2 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -22.35 | 140.36 | -5.30 | 169.36 | 0.4642 | 1028.0 | 812.3 | |
| 6.26 | 37.03 | 3.50 | 20.72 | -22.36 | 139.67 | -5.99 | 168.01 | 0.4664 | 966.3 | 748.0 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -19.72 | 139.38 | -6.28 | 166.01 | 0.4273 | 939.0 | 648.6 | |
| 1.00 | -15.00 | 0.56 | -15.00 | -22.57 | 139.13 | -6.53 | 167.07 | 0.4714 | 572.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -20.03 | 139.21 | -6.45 | 165.82 | 0.4326 | 913.0 | 734.4 | |
| 9.26 | -15.00 | 5.18 | -15.00 | -22.13 | 138.98 | -6.68 | 166.56 | 0.4653 | 947.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.16 | 138.84 | -6.82 | 165.14 | 0.4362 | 729.0 | 559.6 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -21.82 | 138.70 | -6.96 | 165.84 | 0.4617 | 237.0 | 168.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.58 | 138.63 | -7.03 | 166.13 | 0.4733 | 403.0 | 406.2 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -24.13 | 138.48 | -7.18 | 166.67 | 0.4969 | 864.0 | 696.7 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -24.03 | 138.25 | -7.41 | 166.21 | 0.4962 | 702.0 | 659.4 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -24.73 | 138.07 | -7.59 | 166.26 | 0.5071 | 591.0 | 513.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -24.24 | 138.07 | -7.59 | 166.00 | 0.5000 | 567.0 | 507.9 | |
| 4.08 | 4.72 | 2.29 | 2.64 | -22.14 | 138.12 | -7.54 | 164.91 | 0.4687 | 726.4 | 613.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -21.86 | 138.00 | -7.66 | 164.52 | 0.4651 | 302.0 | 343.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -22.25 | 137.32 | -8.34 | 163.46 | 0.4737 | 742.0 | 518.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -21.54 | 137.06 | -8.60 | 162.50 | 0.4644 | -831.0 | -585.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.98 | 136.50 | -9.16 | 162.46 | 0.4880 | -625.0 | -457.2 | |
| 1.72 | 72.79 | 0.97 | 41.05 | -22.36 | 136.44 | -9.22 | 161.93 | 0.4794 | -937.8 | -545.3 | |
| 1.72 | -32.00 | 0.97 | -32.00 | -22.23 | 136.09 | -9.58 | 161.18 | 0.4792 | -946.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -23.33 | 135.87 | -9.79 | 161.58 | 0.4961 | -766.0 | -595.4 | |
| 4.36 | -32.00 | 2.46 | -32.00 | -22.44 | 135.87 | -9.79 | 160.94 | 0.4833 | -944.2 | 999999 | |
| 7.99 | -32.00 | 4.51 | -32.00 | -22.27 | 135.48 | -10.18 | 160.12 | 0.4829 | -1132.0 | 999999 | |
| 1.00 | 8.08 | 0.57 | 4.57 | -22.38 | 135.17 | -10.49 | 159.65 | 0.4861 | -1015.4 | -828.3 | |
| 1.72 | -37.00 | 0.98 | -37.00 | -22.32 | 135.01 | -10.65 | 159.31 | 0.4860 | -940.2 | 999999 | |
| 2.45 | 4.81 | 1.41 | 2.77 | -24.15 | 134.55 | -11.11 | 159.93 | 0.5142 | -899.7 | -810.0 | |
| 3.36 | 60.81 | 1.91 | 34.45 | -22.77 | 134.64 | -11.02 | 159.02 | 0.4944 | -749.2 | -552.1 | |
| 16.97 | -40.00 | 9.63 | -40.00 | -22.36 | 134.47 | -11.19 | 158.40 | 0.4896 | -1021.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.14 | 134.26 | -11.40 | 157.00 | 0.4736 | 601.0 | 435.1 | |
| 5.45 | -40.00 | 3.09 | -40.00 | -22.13 | 134.12 | -11.54 | 157.60 | 0.4883 | -846.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -24.48 | 133.77 | -11.89 | 158.90 | 0.5228 | -688.0 | -565.9 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -24.48 | 133.53 | -12.13 | 158.52 | 0.5242 | -738.0 | -782.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -25.58 | 133.35 | -12.31 | 159.05 | 0.5400 | -751.0 | -598.2 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.39 | 132.82 | -12.84 | 157.32 | 0.5269 | -789.0 | -601.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -24.26 | 132.56 | -13.10 | 156.80 | 0.5266 | -796.0 | -652.0 | |
| 0.00 | 3.81 | 0.00 | 2.22 | -24.09 | 132.23 | -13.43 | 156.15 | 0.5263 | -919.0 | -654.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
