SDO HMI 2011-07-19 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.43 | 90.77 | 20.85 | 110.56 | 24.48 | 78.77 | -65.79 | 65.25 | 0.9153 | -186.9 | -134.9 | |
|
previous
or next observation for the same group /

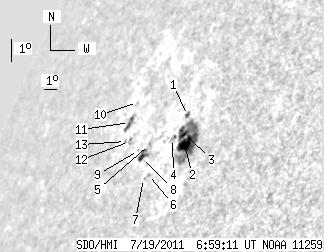

back to the solar disc SDO HMI 2011-07-19 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 2.63 | 1.96 | 3.16 | 25.39 | 79.37 | -65.20 | 64.21 | 0.9125 | -263.3 | -253.4 | |
| 10.53 | 60.73 | 12.30 | 70.83 | 24.48 | 80.04 | -64.52 | 65.13 | 0.9074 | -724.1 | -399.3 | |
| 2.09 | -2.00 | 2.47 | -2.00 | 24.79 | 79.74 | -64.83 | 64.82 | 0.9096 | -487.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 2.97 | 24.60 | 78.96 | -65.61 | 65.12 | 0.9145 | -92.0 | -32.3 | |
| 0.00 | 1.45 | 0.00 | 1.87 | 24.28 | 77.35 | -67.22 | 65.62 | 0.9243 | 538.0 | 476.4 | |
| 0.00 | 1.45 | 0.00 | 1.80 | 23.36 | 78.22 | -66.34 | 66.54 | 0.9183 | 431.0 | 398.2 | |
| 0.00 | 0.73 | 0.00 | 0.91 | 23.20 | 77.95 | -66.61 | 66.73 | 0.9199 | 223.0 | 334.9 | |
| 3.18 | 7.99 | 4.12 | 10.31 | 23.84 | 77.13 | -67.44 | 66.12 | 0.9254 | 499.4 | 516.8 | |
| 0.00 | 1.09 | 0.00 | 1.44 | 24.03 | 76.65 | -67.92 | 65.95 | 0.9284 | 341.0 | 283.1 | |
| 0.00 | 1.09 | 0.00 | 1.56 | 25.49 | 74.79 | -69.77 | 64.53 | 0.9396 | 392.0 | 284.6 | |
| 0.00 | 7.44 | 0.00 | 10.57 | 24.83 | 74.86 | -69.71 | 65.23 | 0.9389 | 449.0 | 290.5 | |
| 0.00 | 2.63 | 0.00 | 3.62 | 24.25 | 75.57 | -69.00 | 65.80 | 0.9347 | 485.0 | 376.9 | |
| 0.00 | 1.09 | 0.00 | 1.52 | 24.23 | 75.22 | -69.35 | 65.85 | 0.9367 | 224.0 | 184.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
