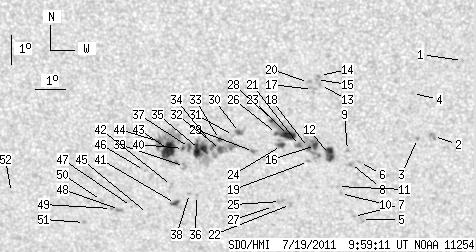

SDO HMI 2011-07-19 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.26 | 263.88 | 41.55 | 147.79 | -22.36 | 136.63 | -6.29 | 167.57 | 0.4689 | -44.0 | -131.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.28 | 144.10 | 1.17 | 182.72 | 0.4087 | 682.0 | 435.8 | |
| 0.00 | 2.90 | 0.00 | 1.61 | -21.84 | 143.16 | 0.24 | 180.50 | 0.4488 | 899.0 | 759.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.91 | 142.64 | -0.28 | 179.41 | 0.4499 | 838.0 | 726.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.39 | 142.48 | -0.44 | 179.02 | 0.4259 | 822.0 | 577.6 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -24.71 | 140.75 | -2.17 | 176.00 | 0.4943 | 654.0 | 512.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.74 | 140.72 | -2.20 | 175.60 | 0.4640 | 818.0 | 616.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.61 | 140.49 | -2.44 | 175.49 | 0.4930 | 654.0 | 485.6 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -22.77 | 140.42 | -2.50 | 175.02 | 0.4650 | 868.0 | 655.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.33 | 140.33 | -2.59 | 174.74 | 0.4582 | 879.0 | 616.9 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -23.81 | 140.07 | -2.85 | 174.55 | 0.4814 | 731.0 | 580.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.57 | 139.97 | -2.95 | 174.32 | 0.4778 | 756.0 | 627.8 | |
| 9.35 | 11.62 | 5.21 | 6.48 | -22.47 | 139.73 | -3.19 | 173.58 | 0.4613 | 939.2 | 780.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.13 | 139.49 | -3.43 | 172.38 | 0.4253 | 871.0 | 722.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.79 | 139.47 | -3.45 | 172.21 | 0.4201 | 529.0 | 588.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.92 | 139.37 | -3.56 | 172.03 | 0.4224 | 883.0 | 760.4 | |
| 3.45 | 28.41 | 1.92 | 15.82 | -22.16 | 139.28 | -3.64 | 172.58 | 0.4574 | 1083.5 | 690.6 | |
| 0.00 | 3.54 | 0.00 | 1.94 | -20.26 | 139.23 | -3.69 | 171.85 | 0.4280 | 741.0 | 667.3 | |
| 1.91 | -16.00 | 1.06 | -16.00 | -22.23 | 139.05 | -3.87 | 172.13 | 0.4590 | 938.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.71 | 139.03 | -3.89 | 172.26 | 0.4664 | 692.0 | 449.7 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -20.03 | 139.10 | -3.82 | 171.49 | 0.4246 | 800.0 | 734.7 | |
| 2.36 | -16.00 | 1.31 | -16.00 | -22.16 | 138.75 | -4.17 | 171.52 | 0.4586 | 873.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -24.20 | 138.39 | -4.54 | 171.51 | 0.4905 | 929.0 | 671.0 | |
| 9.35 | 26.05 | 5.19 | 14.45 | -21.82 | 138.40 | -4.52 | 170.69 | 0.4542 | 857.6 | -44.5 | |
| 3.36 | 6.54 | 1.87 | 3.64 | -22.17 | 138.16 | -4.76 | 170.34 | 0.4601 | 651.6 | 176.3 | |
| 0.00 | 3.63 | 0.00 | 2.06 | -24.10 | 138.05 | -4.87 | 170.86 | 0.4897 | 737.0 | 658.1 | |
| 0.54 | -23.00 | 0.30 | -23.00 | -21.76 | 138.01 | -4.91 | 169.87 | 0.4543 | 662.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.28 | 137.81 | -5.11 | 170.48 | 0.4930 | 613.0 | 480.5 | |
| 1.54 | -23.00 | 0.85 | -23.00 | -21.32 | 137.89 | -5.03 | 169.44 | 0.4478 | -843.1 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.73 | -22.38 | 137.22 | -5.70 | 168.59 | 0.4660 | -502.0 | -304.4 | |
| 0.00 | 4.36 | 0.00 | 2.42 | -21.73 | 136.79 | -6.13 | 167.42 | 0.4576 | -994.0 | -810.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.84 | 136.59 | -6.34 | 167.08 | 0.4599 | -812.0 | -632.6 | |
| 3.63 | 126.26 | 2.03 | 70.85 | -22.32 | 136.13 | -6.79 | 166.45 | 0.4688 | -837.8 | -529.3 | |
| 0.82 | -32.00 | 0.46 | -32.00 | -21.98 | 136.12 | -6.81 | 166.23 | 0.4637 | -995.7 | 999999 | |
| 1.00 | -32.00 | 0.56 | -32.00 | -22.19 | 135.91 | -7.01 | 165.95 | 0.4676 | -897.9 | 999999 | |
| 11.89 | -32.00 | 6.67 | -32.00 | -22.33 | 135.43 | -7.49 | 165.13 | 0.4715 | -1037.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -23.92 | 135.24 | -7.68 | 165.68 | 0.4957 | -646.0 | -536.9 | |
| 2.18 | -32.00 | 1.22 | -32.00 | -22.26 | 135.11 | -7.82 | 164.47 | 0.4719 | -1005.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -23.85 | 135.01 | -7.91 | 165.23 | 0.4956 | -733.0 | -623.5 | |
| 0.00 | 3.45 | 0.00 | 1.95 | -22.92 | 134.90 | -8.02 | 164.49 | 0.4824 | -574.0 | -558.8 | |
| 0.91 | -32.00 | 0.51 | -32.00 | -22.30 | 134.90 | -8.02 | 164.11 | 0.4733 | -890.6 | 999999 | |
| 3.27 | 5.26 | 1.87 | 3.01 | -24.20 | 134.52 | -8.40 | 164.56 | 0.5027 | -911.6 | -391.1 | |
| 0.00 | 2.54 | 0.00 | 1.45 | -23.58 | 134.42 | -8.50 | 164.02 | 0.4940 | -755.0 | -612.7 | |
| 16.88 | -32.00 | 9.50 | -32.00 | -22.34 | 134.40 | -8.52 | 163.20 | 0.4760 | -1047.1 | 999999 | |
| 1.82 | -32.00 | 1.02 | -32.00 | -22.07 | 134.09 | -8.84 | 162.43 | 0.4735 | -897.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -24.57 | 133.54 | -9.38 | 163.11 | 0.5120 | -391.0 | -523.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.07 | 133.55 | -9.37 | 162.15 | 0.4906 | -675.0 | -515.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.33 | 133.02 | -9.90 | 162.07 | 0.5110 | -498.0 | -482.5 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -24.44 | 132.60 | -10.32 | 161.44 | 0.5145 | -696.0 | -646.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.41 | 132.33 | -10.59 | 160.97 | 0.5154 | -775.0 | -624.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -24.14 | 132.02 | -10.91 | 160.26 | 0.5131 | -876.0 | -593.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -24.92 | 131.36 | -11.56 | 159.76 | 0.5273 | -663.0 | -525.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -23.92 | 128.96 | -13.96 | 155.18 | 0.5274 | 640.0 | 439.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
