SDO HMI 2011-07-19 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.69 | 105.20 | 30.31 | 120.75 | 24.44 | 78.82 | -64.10 | 65.11 | 0.9042 | -13.8 | -183.8 | |
|
previous
or next observation for the same group /

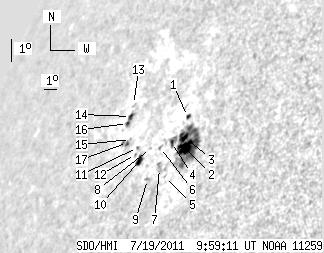

back to the solar disc SDO HMI 2011-07-19 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.27 | 1.82 | 1.45 | 2.07 | 25.44 | 79.26 | -63.67 | 63.97 | 0.9025 | -338.2 | -215.3 | |
| 10.17 | 67.89 | 11.28 | 75.09 | 24.46 | 79.94 | -62.98 | 64.97 | 0.8968 | -722.0 | -390.2 | |
| 1.91 | -2.00 | 2.14 | -2.00 | 24.77 | 79.66 | -63.26 | 64.66 | 0.8991 | -528.9 | 999999 | |
| 2.09 | 5.45 | 2.40 | 6.24 | 24.55 | 78.88 | -64.05 | 65.00 | 0.9042 | -138.7 | -172.7 | |
| 0.00 | 1.09 | 0.00 | 1.23 | 23.46 | 79.34 | -63.58 | 66.15 | 0.9001 | -102.0 | -111.0 | |
| 0.00 | 1.72 | 0.00 | 2.03 | 24.33 | 78.22 | -64.70 | 65.31 | 0.9084 | 335.0 | 290.8 | |
| 0.00 | 4.36 | 0.00 | 5.01 | 23.68 | 78.76 | -64.16 | 65.97 | 0.9043 | 429.0 | 335.1 | |
| 0.00 | 0.91 | 0.00 | 1.09 | 24.25 | 77.50 | -65.42 | 65.48 | 0.9130 | 401.0 | 343.6 | |
| 0.00 | 1.72 | 0.00 | 2.02 | 23.28 | 78.19 | -64.73 | 66.47 | 0.9078 | 537.0 | 478.6 | |
| 5.08 | 5.81 | 6.21 | 7.10 | 23.82 | 77.03 | -65.89 | 66.00 | 0.9158 | 530.6 | 503.1 | |
| 0.00 | 1.36 | 0.00 | 1.70 | 24.21 | 76.47 | -66.45 | 65.63 | 0.9196 | 496.0 | 471.1 | |
| 0.00 | 1.27 | 0.00 | 1.58 | 23.98 | 76.53 | -66.39 | 65.87 | 0.9190 | 453.0 | 349.4 | |
| 0.00 | 1.27 | 0.00 | 1.71 | 25.51 | 74.66 | -68.26 | 64.40 | 0.9312 | 370.0 | 334.1 | |
| 2.27 | 5.99 | 3.02 | 7.97 | 25.12 | 74.84 | -68.08 | 64.80 | 0.9299 | 476.1 | 420.5 | |
| 0.00 | 0.73 | 0.00 | 0.94 | 24.41 | 75.65 | -67.28 | 65.48 | 0.9248 | 291.0 | 323.9 | |
| 1.18 | -14.00 | 1.57 | -14.00 | 24.89 | 74.84 | -68.08 | 65.05 | 0.9298 | 380.6 | 999999 | |
| 1.72 | 3.81 | 2.24 | 4.97 | 24.30 | 75.50 | -67.42 | 65.62 | 0.9255 | 454.4 | 246.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
