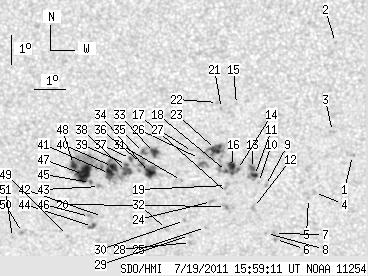

SDO HMI 2011-07-19 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.00 | 278.08 | 46.83 | 155.13 | -22.43 | 136.83 | -2.78 | 174.45 | 0.4616 | -80.6 | -50.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.01 | -21.84 | 143.21 | 3.59 | 187.42 | 0.4526 | 831.0 | 688.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.05 | 142.57 | 2.96 | 187.24 | 0.3916 | 737.0 | 579.1 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -21.03 | 142.53 | 2.92 | 186.25 | 0.4386 | 727.0 | 576.6 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -23.11 | 141.98 | 2.37 | 184.65 | 0.4701 | 812.0 | 547.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.31 | 141.78 | 2.17 | 184.24 | 0.4730 | 723.0 | 622.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.74 | 140.70 | 1.09 | 182.01 | 0.4939 | 678.0 | 595.3 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -24.53 | 140.66 | 1.05 | 181.96 | 0.4907 | 786.0 | 692.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.53 | 140.40 | 0.79 | 181.46 | 0.4906 | 667.0 | 531.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.86 | 140.35 | 0.74 | 181.48 | 0.4649 | 906.0 | 736.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.76 | 140.12 | 0.51 | 181.02 | 0.4633 | 689.0 | 530.9 | |
| 2.63 | 13.34 | 1.47 | 7.42 | -22.52 | 139.99 | 0.38 | 180.76 | 0.4595 | 981.4 | 793.9 | |
| 0.00 | 3.54 | 0.00 | 1.99 | -23.62 | 139.96 | 0.35 | 180.67 | 0.4766 | 836.0 | 663.2 | |
| 2.63 | -11.00 | 1.46 | -11.00 | -22.28 | 139.92 | 0.31 | 180.63 | 0.4557 | 1040.3 | 999999 | |
| 1.54 | 24.77 | 0.86 | 13.77 | -22.31 | 139.43 | -0.18 | 179.63 | 0.4563 | 855.3 | 655.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -20.11 | 139.40 | -0.21 | 179.52 | 0.4216 | 771.0 | 536.7 | |
| 6.26 | -14.00 | 3.48 | -14.00 | -22.24 | 139.23 | -0.38 | 179.22 | 0.4552 | 1081.0 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -23.14 | 139.10 | -0.52 | 178.99 | 0.4691 | 570.0 | 469.8 | |
| 1.45 | -14.00 | 0.81 | -14.00 | -22.38 | 139.07 | -0.55 | 178.89 | 0.4574 | 879.6 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.83 | -22.86 | 139.06 | -0.55 | 178.91 | 0.4649 | 696.0 | 599.8 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -23.59 | 139.03 | -0.58 | 178.87 | 0.4761 | 779.0 | 665.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.24 | 138.91 | -0.70 | 178.44 | 0.4238 | 789.0 | 677.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.04 | 138.78 | -0.83 | 178.14 | 0.4207 | 757.0 | 551.9 | |
| 8.53 | 34.38 | 4.71 | 19.04 | -21.63 | 138.71 | -0.90 | 178.11 | 0.4458 | 1022.1 | 520.1 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -23.41 | 138.56 | -1.05 | 177.96 | 0.4736 | 715.0 | 520.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -24.32 | 138.36 | -1.26 | 177.64 | 0.4876 | 658.0 | 512.5 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.94 | 138.18 | -1.43 | 177.04 | 0.4510 | 210.0 | 170.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.70 | 137.95 | -1.66 | 176.54 | 0.4475 | 340.0 | 396.2 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -24.84 | 137.85 | -1.76 | 176.76 | 0.4960 | 671.0 | 567.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.60 | 137.82 | -1.79 | 176.67 | 0.4923 | 755.0 | 638.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -24.08 | 137.66 | -1.95 | 176.30 | 0.4845 | 820.0 | 680.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.69 | 137.58 | -2.03 | 175.93 | 0.4633 | 650.0 | 412.3 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -24.39 | 137.05 | -2.56 | 175.22 | 0.4900 | 672.0 | 517.3 | |
| 4.63 | 151.04 | 2.56 | 84.21 | -21.74 | 136.71 | -2.91 | 173.97 | 0.4497 | -1013.8 | -591.2 | |
| 6.89 | -33.00 | 3.84 | -33.00 | -22.42 | 136.53 | -3.08 | 173.77 | 0.4606 | -841.3 | 999999 | |
| 2.00 | -33.00 | 1.11 | -33.00 | -21.74 | 136.34 | -3.27 | 173.22 | 0.4503 | -963.1 | 999999 | |
| 1.72 | -33.00 | 0.96 | -33.00 | -22.12 | 136.27 | -3.34 | 173.18 | 0.4563 | -836.1 | 999999 | |
| 1.81 | -33.00 | 1.01 | -33.00 | -21.95 | 135.91 | -3.70 | 172.40 | 0.4544 | -1002.5 | 999999 | |
| 6.08 | -33.00 | 3.39 | -33.00 | -22.39 | 135.77 | -3.84 | 172.25 | 0.4615 | -860.8 | 999999 | |
| 0.54 | -33.00 | 0.30 | -33.00 | -22.15 | 135.77 | -3.84 | 172.19 | 0.4578 | -1113.0 | 999999 | |
| 5.72 | -33.00 | 3.19 | -33.00 | -22.22 | 135.31 | -4.30 | 171.28 | 0.4600 | -1073.3 | 999999 | |
| 6.53 | -33.00 | 3.65 | -33.00 | -22.46 | 135.20 | -4.41 | 171.16 | 0.4639 | -904.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.95 | 134.92 | -4.69 | 171.14 | 0.4872 | -573.0 | -450.7 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -22.91 | 134.86 | -4.75 | 170.65 | 0.4716 | -781.0 | -637.1 | |
| 2.72 | 3.63 | 1.55 | 2.06 | -24.30 | 134.57 | -5.04 | 170.62 | 0.4933 | -788.8 | -668.6 | |
| 1.18 | -33.00 | 0.66 | -33.00 | -22.78 | 134.56 | -5.05 | 170.03 | 0.4703 | -519.8 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.70 | -23.95 | 134.49 | -5.13 | 170.34 | 0.4883 | -827.0 | -685.5 | |
| 17.60 | -33.00 | 9.85 | -33.00 | -22.50 | 134.34 | -5.27 | 169.49 | 0.4668 | -1029.9 | 999999 | |
| 3.54 | -33.00 | 1.97 | -33.00 | -22.17 | 134.02 | -5.59 | 168.71 | 0.4625 | -898.6 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.62 | 133.72 | -5.89 | 169.20 | 0.5003 | -657.0 | -615.5 | |
| 0.00 | 2.99 | 0.00 | 1.71 | -24.53 | 132.20 | -7.41 | 166.49 | 0.5038 | -747.0 | -615.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -24.71 | 131.85 | -7.76 | 165.97 | 0.5077 | -797.0 | -605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
