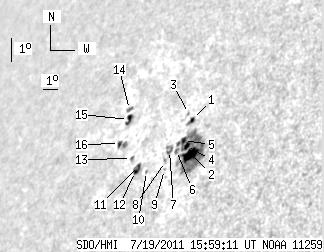

SDO HMI 2011-07-19 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.93 | 117.66 | 31.85 | 122.32 | 24.56 | 78.74 | -60.87 | 64.55 | 0.8813 | -211.7 | -184.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 4.08 | 2.06 | 4.22 | 25.52 | 79.24 | -60.37 | 63.40 | 0.8792 | -351.0 | -337.8 | |
| 12.79 | 79.38 | 12.86 | 79.91 | 24.42 | 80.01 | -59.60 | 64.53 | 0.8719 | -779.3 | -348.0 | |
| 0.00 | 1.18 | 0.00 | 1.23 | 25.69 | 78.82 | -60.79 | 63.28 | 0.8825 | -101.0 | -82.3 | |
| 2.63 | -2.00 | 2.68 | -2.00 | 24.65 | 79.55 | -60.06 | 64.34 | 0.8757 | -590.6 | 999999 | |
| 2.63 | -2.00 | 2.71 | -2.00 | 24.82 | 79.21 | -60.40 | 64.20 | 0.8785 | -359.4 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.62 | 24.48 | 79.01 | -60.60 | 64.61 | 0.8796 | -291.0 | -258.2 | |
| 0.00 | 5.44 | 0.00 | 5.71 | 24.45 | 78.55 | -61.06 | 64.72 | 0.8830 | -183.0 | -47.1 | |
| 0.00 | 1.54 | 0.00 | 1.61 | 24.09 | 78.57 | -61.04 | 65.12 | 0.8824 | -147.0 | -92.6 | |
| 0.00 | 0.64 | 0.00 | 0.66 | 23.83 | 78.70 | -60.91 | 65.39 | 0.8811 | -334.0 | -296.1 | |
| 0.00 | 0.73 | 0.00 | 0.78 | 23.69 | 77.56 | -62.05 | 65.71 | 0.8894 | 363.0 | 338.9 | |
| 0.36 | 5.35 | 0.40 | 5.89 | 23.83 | 76.85 | -62.76 | 65.64 | 0.8946 | 641.0 | 555.9 | |
| 1.54 | -11.00 | 1.70 | -11.00 | 23.63 | 76.80 | -62.81 | 65.86 | 0.8948 | 471.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.63 | 24.02 | 76.17 | -63.44 | 65.52 | 0.8996 | 518.0 | 496.9 | |
| 1.72 | 3.18 | 2.06 | 3.79 | 25.53 | 74.56 | -65.05 | 64.05 | 0.9117 | 314.6 | 349.1 | |
| 4.17 | 5.44 | 4.93 | 6.43 | 25.21 | 74.80 | -64.81 | 64.36 | 0.9098 | 457.2 | 533.8 | |
| 2.09 | 6.71 | 2.45 | 7.84 | 24.42 | 74.87 | -64.74 | 65.22 | 0.9087 | 179.5 | 424.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
