SDO HMI 2011-07-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.11 | 208.44 | 19.29 | 121.45 | 16.81 | 168.93 | 29.88 | 294.78 | 0.5274 | -862.0 | -316.4 | |
|
previous
or next observation for the same group /

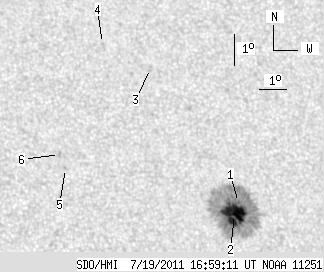

back to the solar disc SDO HMI 2011-07-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.00 | 200.64 | 0.58 | 117.01 | 17.03 | 169.29 | 30.24 | 294.95 | 0.5331 | -558.1 | -358.9 | |
| 32.11 | -1.00 | 18.71 | -1.00 | 16.67 | 169.08 | 30.03 | 294.42 | 0.5285 | -1210.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.64 | 21.36 | 166.88 | 27.83 | 304.18 | 0.5276 | 641.0 | 589.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 22.22 | 165.29 | 26.23 | 307.02 | 0.5145 | 614.0 | 552.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 18.32 | 163.28 | 24.22 | 301.86 | 0.4604 | 744.0 | 636.8 | |
| 0.00 | 2.18 | 0.00 | 1.21 | 18.76 | 163.13 | 24.08 | 302.86 | 0.4617 | 899.0 | 686.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
