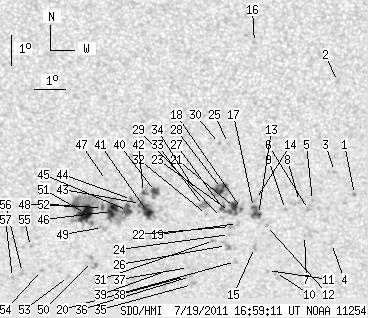

SDO HMI 2011-07-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.01 | 289.99 | 43.41 | 161.74 | -22.44 | 136.82 | -2.23 | 175.56 | 0.4611 | -19.1 | -30.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.81 | 143.21 | 4.16 | 188.57 | 0.4533 | 856.0 | 733.6 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -18.02 | 142.57 | 3.51 | 188.57 | 0.3923 | 643.0 | 467.3 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -21.03 | 142.53 | 3.48 | 187.43 | 0.4397 | 634.0 | 592.8 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -23.49 | 142.50 | 3.44 | 186.64 | 0.4776 | 635.0 | 509.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.01 | 141.83 | 2.78 | 185.71 | 0.4537 | 783.0 | 555.6 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -22.32 | 141.71 | 2.65 | 185.38 | 0.4583 | 726.0 | 624.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.21 | 141.59 | 2.54 | 184.97 | 0.4719 | 651.0 | 547.3 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -22.04 | 141.41 | 2.35 | 184.83 | 0.4536 | 676.0 | 681.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.31 | 140.95 | 1.89 | 183.85 | 0.4573 | 682.0 | 517.5 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -24.49 | 140.65 | 1.59 | 182.97 | 0.4906 | 701.0 | 633.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -24.42 | 140.38 | 1.32 | 182.47 | 0.4893 | 561.0 | 503.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.86 | 140.33 | 1.27 | 182.53 | 0.4653 | 819.0 | 642.0 | |
| 0.73 | 9.89 | 0.40 | 5.51 | -22.48 | 140.06 | 1.01 | 182.03 | 0.4592 | 1021.2 | 938.0 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -21.97 | 139.96 | 0.90 | 181.87 | 0.4512 | 870.0 | 740.6 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -23.62 | 139.94 | 0.88 | 181.70 | 0.4768 | 942.0 | 755.1 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -16.73 | 139.90 | 0.84 | 182.21 | 0.3674 | 761.0 | 626.0 | |
| 0.54 | -13.00 | 0.30 | -13.00 | -22.24 | 139.90 | 0.84 | 181.72 | 0.4554 | 1102.3 | 999999 | |
| 1.18 | 43.00 | 0.66 | 23.84 | -22.28 | 139.50 | 0.45 | 180.91 | 0.4558 | 872.1 | 700.3 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -22.79 | 139.37 | 0.32 | 180.63 | 0.4638 | 686.0 | 567.3 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -24.11 | 139.31 | 0.25 | 180.48 | 0.4841 | 695.0 | 563.5 | |
| 6.80 | -18.00 | 3.78 | -18.00 | -22.24 | 139.27 | 0.22 | 180.44 | 0.4552 | 1086.0 | 999999 | |
| 0.00 | 3.81 | 0.00 | 2.13 | -22.89 | 139.14 | 0.08 | 180.17 | 0.4654 | 704.0 | 598.3 | |
| 1.54 | -18.00 | 0.86 | -18.00 | -22.38 | 139.11 | 0.05 | 180.10 | 0.4573 | 912.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -23.17 | 139.11 | 0.05 | 180.10 | 0.4696 | 618.0 | 499.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.07 | 139.07 | 0.02 | 180.04 | 0.4210 | 817.0 | 716.5 | |
| 0.00 | 4.26 | 0.00 | 2.40 | -23.55 | 139.01 | -0.05 | 179.91 | 0.4755 | 810.0 | 606.3 | |
| 2.63 | -18.00 | 1.46 | -18.00 | -22.24 | 138.88 | -0.18 | 179.63 | 0.4552 | 781.4 | 999999 | |
| 7.08 | -18.00 | 3.91 | -18.00 | -21.59 | 138.84 | -0.21 | 179.56 | 0.4451 | 1058.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -22.59 | 138.84 | -0.21 | 179.57 | 0.4606 | 436.0 | 351.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.07 | 138.78 | -0.27 | 179.39 | 0.4211 | 801.0 | 608.5 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -23.38 | 138.58 | -0.48 | 179.06 | 0.4729 | 590.0 | 551.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.48 | 138.35 | -0.71 | 178.57 | 0.4591 | 744.0 | 587.3 | |
| 0.00 | 7.53 | 0.00 | 4.18 | -22.17 | 138.25 | -0.80 | 178.35 | 0.4543 | 731.0 | 578.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.66 | 137.99 | -1.06 | 177.78 | 0.4465 | 619.0 | 422.3 | |
| 0.00 | 2.99 | 0.00 | 1.71 | -24.91 | 137.86 | -1.19 | 177.82 | 0.4967 | 627.0 | 513.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.63 | 137.80 | -1.26 | 177.67 | 0.4925 | 764.0 | 622.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -24.32 | 137.74 | -1.32 | 177.52 | 0.4877 | 702.0 | 544.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.63 | 137.63 | -1.42 | 177.36 | 0.4926 | 586.0 | 392.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -24.42 | 137.03 | -2.02 | 176.22 | 0.4899 | 563.0 | 512.3 | |
| 5.35 | 8.16 | 2.96 | 4.52 | -21.70 | 136.68 | -2.38 | 175.05 | 0.4483 | -976.1 | -707.8 | |
| 8.35 | 147.85 | 4.65 | 82.43 | -22.38 | 136.40 | -2.65 | 174.63 | 0.4594 | -866.9 | -543.5 | |
| 1.45 | -41.00 | 0.80 | -41.00 | -21.74 | 136.29 | -2.77 | 174.24 | 0.4495 | -977.4 | 999999 | |
| 1.72 | -41.00 | 0.96 | -41.00 | -22.11 | 136.18 | -2.88 | 174.12 | 0.4555 | -958.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -21.98 | 135.89 | -3.17 | 173.49 | 0.4539 | -1097.0 | -973.5 | |
| 8.53 | -41.00 | 4.75 | -41.00 | -22.35 | 135.75 | -3.31 | 173.30 | 0.4600 | -895.1 | 999999 | |
| 11.16 | -41.00 | 6.22 | -41.00 | -22.39 | 135.22 | -3.84 | 172.26 | 0.4616 | -1039.7 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -21.33 | 135.08 | -3.98 | 171.63 | 0.4455 | 535.0 | 457.4 | |
| 1.72 | -41.00 | 0.96 | -41.00 | -22.26 | 134.92 | -4.13 | 171.63 | 0.4601 | -1023.1 | 999999 | |
| 0.00 | 4.72 | 0.00 | 2.65 | -22.94 | 134.90 | -4.15 | 171.82 | 0.4707 | -706.0 | -557.2 | |
| 0.00 | 5.99 | 0.00 | 3.40 | -24.12 | 134.53 | -4.53 | 171.50 | 0.4894 | -663.0 | -739.7 | |
| 16.24 | -41.00 | 9.07 | -41.00 | -22.47 | 134.35 | -4.70 | 170.58 | 0.4647 | -1097.3 | 999999 | |
| 2.99 | -41.00 | 1.67 | -41.00 | -22.19 | 134.00 | -5.06 | 169.77 | 0.4615 | -918.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.65 | 133.70 | -5.35 | 170.18 | 0.4994 | -823.0 | -671.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -24.45 | 132.80 | -6.25 | 168.49 | 0.4989 | -703.0 | -574.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.62 | 132.48 | -6.58 | 167.51 | 0.4876 | -752.0 | -640.1 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -24.53 | 132.16 | -6.90 | 167.38 | 0.5020 | -814.0 | -592.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.70 | 131.81 | -7.24 | 166.86 | 0.5058 | -862.0 | -601.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
