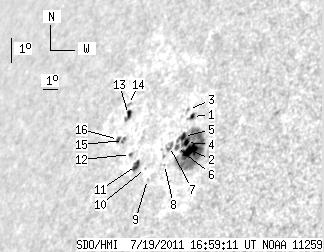

SDO HMI 2011-07-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.29 | 114.67 | 29.42 | 117.13 | 24.55 | 78.80 | -60.26 | 64.47 | 0.8767 | -136.1 | -221.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 3.90 | 1.93 | 3.96 | 25.49 | 79.27 | -59.79 | 63.34 | 0.8748 | -429.0 | -387.3 | |
| 11.07 | 79.01 | 10.96 | 78.37 | 24.42 | 79.99 | -59.07 | 64.44 | 0.8677 | -793.4 | -363.9 | |
| 0.00 | 1.00 | 0.00 | 1.03 | 25.70 | 78.83 | -60.23 | 63.19 | 0.8783 | -172.0 | -128.1 | |
| 2.72 | -2.00 | 2.73 | -2.00 | 24.65 | 79.54 | -59.51 | 64.25 | 0.8715 | -593.7 | 999999 | |
| 2.45 | -2.00 | 2.48 | -2.00 | 24.83 | 79.20 | -59.85 | 64.11 | 0.8743 | -356.8 | 999999 | |
| 0.00 | 2.81 | 0.00 | 2.86 | 24.45 | 79.03 | -60.02 | 64.56 | 0.8752 | -299.0 | -260.8 | |
| 0.00 | 4.72 | 0.00 | 4.86 | 24.45 | 78.56 | -60.50 | 64.63 | 0.8788 | -181.0 | -106.5 | |
| 0.00 | 0.91 | 0.00 | 0.93 | 23.87 | 78.68 | -60.37 | 65.27 | 0.8771 | -334.0 | -301.1 | |
| 0.00 | 0.73 | 0.00 | 0.76 | 23.32 | 77.94 | -61.11 | 65.99 | 0.8821 | 441.0 | 349.1 | |
| 0.00 | 0.82 | 0.00 | 0.86 | 23.66 | 77.54 | -61.52 | 65.67 | 0.8855 | 369.0 | 356.2 | |
| 5.71 | 5.99 | 6.18 | 6.47 | 23.71 | 76.85 | -62.20 | 65.71 | 0.8905 | 555.9 | 319.0 | |
| 0.00 | 1.36 | 0.00 | 1.50 | 24.02 | 76.15 | -62.91 | 65.45 | 0.8958 | 601.0 | 499.0 | |
| 2.63 | 5.71 | 3.05 | 6.62 | 25.25 | 74.85 | -64.21 | 64.25 | 0.9059 | 452.7 | 419.4 | |
| 0.00 | 2.72 | 0.00 | 3.19 | 25.56 | 74.54 | -64.52 | 63.95 | 0.9082 | 458.0 | 322.3 | |
| 0.00 | 2.63 | 0.00 | 3.00 | 24.42 | 75.26 | -63.80 | 65.12 | 0.9024 | 655.0 | 543.5 | |
| 1.81 | 2.36 | 2.09 | 2.72 | 24.42 | 74.87 | -64.19 | 65.16 | 0.9050 | 213.1 | 140.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
