SDO HMI 2011-07-19 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.93 | 213.88 | 19.29 | 125.16 | 16.81 | 168.85 | 30.35 | 294.52 | 0.5338 | -776.3 | -323.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

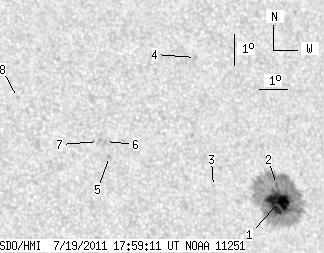

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.75 | 204.17 | 18.60 | 119.68 | 16.68 | 169.08 | 30.58 | 294.12 | 0.5360 | -1206.0 | -368.7 | |
| 1.18 | -1.00 | 0.69 | -1.00 | 17.24 | 169.11 | 30.61 | 295.10 | 0.5390 | -369.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 17.27 | 166.80 | 28.30 | 296.60 | 0.5083 | -704.0 | -633.6 | |
| 0.00 | 1.90 | 0.00 | 1.11 | 21.34 | 166.91 | 28.41 | 303.68 | 0.5346 | 772.0 | 656.8 | |
| 0.00 | 2.27 | 0.00 | 1.27 | 18.34 | 163.25 | 24.75 | 301.41 | 0.4675 | 803.0 | 645.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 18.81 | 163.18 | 24.68 | 302.38 | 0.4699 | 820.0 | 712.9 | |
| 0.00 | 2.72 | 0.00 | 1.52 | 18.82 | 162.93 | 24.43 | 302.62 | 0.4668 | 650.0 | 536.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 20.29 | 160.31 | 21.81 | 308.18 | 0.4451 | 713.0 | 568.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
