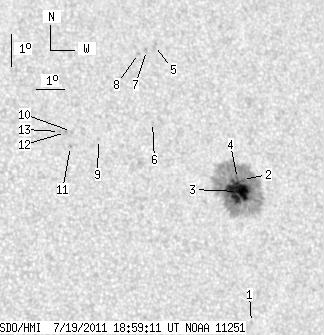

SDO HMI 2011-07-19 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.74 | 218.84 | 19.29 | 128.83 | 16.90 | 168.83 | 30.89 | 294.36 | 0.5414 | -591.3 | -290.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.69 | 12.63 | 168.92 | 30.98 | 286.53 | 0.5260 | -688.0 | -477.5 | |
| 0.82 | 204.16 | 0.48 | 120.36 | 17.06 | 169.30 | 31.36 | 294.34 | 0.5482 | -631.2 | -359.4 | |
| 31.38 | -2.00 | 18.49 | -2.00 | 16.69 | 169.05 | 31.11 | 293.84 | 0.5431 | -1201.7 | 999999 | |
| 0.54 | -2.00 | 0.32 | -2.00 | 17.10 | 169.13 | 31.18 | 294.51 | 0.5459 | -816.3 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.81 | 21.39 | 166.90 | 28.95 | 303.32 | 0.5415 | 646.0 | 580.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 18.97 | 166.33 | 28.39 | 299.60 | 0.5191 | 492.0 | 449.5 | |
| 0.00 | 1.90 | 0.00 | 1.12 | 21.24 | 166.56 | 28.62 | 303.34 | 0.5364 | 742.0 | 626.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 21.16 | 166.25 | 28.30 | 303.45 | 0.5320 | 817.0 | 681.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 18.51 | 164.29 | 26.35 | 300.34 | 0.4896 | 676.0 | 578.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 18.79 | 163.37 | 25.43 | 301.65 | 0.4794 | 709.0 | 637.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 18.32 | 163.26 | 25.32 | 300.86 | 0.4748 | 803.0 | 704.7 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 18.77 | 163.16 | 25.21 | 301.80 | 0.4764 | 807.0 | 724.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 18.80 | 162.95 | 25.00 | 302.06 | 0.4740 | 726.0 | 608.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
