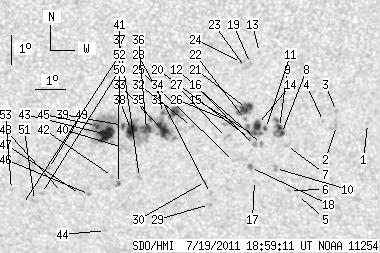

SDO HMI 2011-07-19 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.82 | 290.78 | 44.96 | 162.14 | -22.45 | 136.62 | -1.33 | 177.38 | 0.4604 | -167.1 | -96.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.15 | 142.94 | 4.99 | 190.12 | 0.4607 | 875.0 | 630.1 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -22.21 | 141.92 | 3.97 | 188.06 | 0.4592 | 795.0 | 681.8 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -21.73 | 141.90 | 3.96 | 188.19 | 0.4518 | 830.0 | 674.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.07 | 141.48 | 3.54 | 187.24 | 0.4561 | 842.0 | 613.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.62 | 140.68 | 2.74 | 185.06 | 0.4939 | 560.0 | 501.5 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -24.45 | 140.41 | 2.46 | 184.59 | 0.4909 | 662.0 | 511.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.89 | 140.28 | 2.34 | 184.63 | 0.4668 | 609.0 | 496.8 | |
| 2.00 | 13.42 | 1.11 | 7.47 | -22.47 | 140.11 | 2.16 | 184.36 | 0.4602 | 912.5 | 867.8 | |
| 2.36 | -8.00 | 1.31 | -8.00 | -22.27 | 140.04 | 2.09 | 184.26 | 0.4570 | 1065.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -23.68 | 139.93 | 1.98 | 183.81 | 0.4786 | 883.0 | 834.5 | |
| 1.36 | 26.30 | 0.76 | 14.64 | -22.30 | 139.58 | 1.63 | 183.32 | 0.4570 | 996.5 | 779.0 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -22.85 | 139.45 | 1.51 | 183.00 | 0.4654 | 764.0 | 624.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.73 | 139.36 | 1.41 | 183.21 | 0.4163 | 803.0 | 577.4 | |
| 5.71 | -11.00 | 3.18 | -11.00 | -22.16 | 139.31 | 1.37 | 182.80 | 0.4546 | 1151.3 | 999999 | |
| 0.82 | -11.00 | 0.46 | -11.00 | -22.54 | 139.22 | 1.27 | 182.57 | 0.4604 | 752.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -22.88 | 139.22 | 1.28 | 182.54 | 0.4658 | 731.0 | 677.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -24.10 | 139.23 | 1.29 | 182.44 | 0.4844 | 402.0 | 354.1 | |
| 0.00 | 3.08 | 0.00 | 1.74 | -23.64 | 139.10 | 1.15 | 182.22 | 0.4774 | 755.0 | 664.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.10 | 139.07 | 1.12 | 182.51 | 0.4219 | 853.0 | 668.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.64 | 139.05 | 1.11 | 182.23 | 0.4619 | 632.0 | 514.7 | |
| 8.53 | 16.51 | 4.71 | 9.13 | -21.62 | 138.95 | 1.00 | 182.10 | 0.4459 | 1136.1 | 722.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -21.99 | 138.92 | 0.97 | 182.01 | 0.4517 | 857.0 | 682.3 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -20.23 | 138.91 | 0.96 | 182.14 | 0.4240 | 814.0 | 639.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.06 | 138.78 | 0.83 | 181.86 | 0.4212 | 807.0 | 625.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -23.44 | 138.53 | 0.58 | 181.14 | 0.4739 | 637.0 | 514.8 | |
| 1.27 | 5.17 | 0.70 | 2.87 | -22.06 | 138.39 | 0.45 | 180.92 | 0.4526 | 742.5 | 581.2 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -22.61 | 138.30 | 0.35 | 180.70 | 0.4611 | 497.0 | 450.7 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -24.55 | 137.77 | -0.18 | 179.66 | 0.4909 | 720.0 | 567.0 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -24.93 | 137.73 | -0.21 | 179.61 | 0.4968 | 542.0 | 431.6 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -24.13 | 137.60 | -0.35 | 179.34 | 0.4846 | 585.0 | 534.8 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -22.23 | 137.14 | -0.80 | 178.36 | 0.4554 | -506.0 | -490.3 | |
| 6.62 | 168.15 | 3.67 | 93.62 | -21.75 | 136.59 | -1.36 | 177.18 | 0.4482 | -1059.6 | -549.7 | |
| 11.61 | -32.00 | 6.46 | -32.00 | -22.34 | 136.19 | -1.76 | 176.43 | 0.4577 | -921.1 | 999999 | |
| 1.00 | -32.00 | 0.55 | -32.00 | -21.79 | 136.19 | -1.75 | 176.36 | 0.4491 | -972.0 | 999999 | |
| 0.91 | -32.00 | 0.50 | -32.00 | -22.00 | 135.80 | -2.15 | 175.58 | 0.4528 | -1086.0 | 999999 | |
| 7.44 | -32.00 | 4.14 | -32.00 | -22.34 | 135.66 | -2.29 | 175.36 | 0.4583 | -973.4 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -23.99 | 135.40 | -2.55 | 175.17 | 0.4841 | -810.0 | -629.1 | |
| 10.79 | -32.00 | 6.01 | -32.00 | -22.37 | 135.16 | -2.78 | 174.37 | 0.4595 | -1089.9 | 999999 | |
| 1.90 | -32.00 | 1.06 | -32.00 | -22.20 | 134.90 | -3.04 | 173.81 | 0.4573 | -993.6 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.98 | -22.96 | 134.85 | -3.09 | 173.90 | 0.4690 | -756.0 | -564.8 | |
| 0.54 | 2.99 | 0.31 | 1.70 | -24.21 | 134.69 | -3.25 | 173.89 | 0.4884 | -926.2 | -784.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.96 | 134.50 | -3.45 | 173.47 | 0.4850 | -914.0 | -736.8 | |
| 15.24 | -32.00 | 8.51 | -32.00 | -22.51 | 134.34 | -3.61 | 172.76 | 0.4631 | -1122.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -25.86 | 134.21 | -3.74 | 173.42 | 0.5141 | -716.0 | -541.5 | |
| 2.72 | -32.00 | 1.52 | -32.00 | -22.21 | 134.01 | -3.93 | 172.02 | 0.4591 | -968.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.60 | 133.71 | -4.24 | 172.18 | 0.4961 | -836.0 | -711.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -24.60 | 133.40 | -4.54 | 171.64 | 0.4967 | -599.0 | -481.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -24.53 | 132.80 | -5.14 | 170.52 | 0.4972 | -614.0 | -473.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.70 | 132.37 | -5.58 | 169.40 | 0.4859 | -846.0 | -725.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -24.57 | 132.09 | -5.85 | 169.26 | 0.4997 | -816.0 | -533.6 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -24.82 | 131.85 | -6.10 | 168.93 | 0.5041 | -663.0 | -612.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.97 | 131.43 | -6.51 | 168.26 | 0.5074 | -608.0 | -526.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.44 | 131.09 | -6.86 | 167.42 | 0.5008 | -640.0 | -478.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
