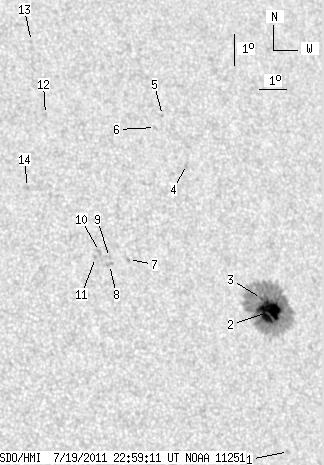

SDO HMI 2011-07-19 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.57 | 204.99 | 19.05 | 123.32 | 16.98 | 168.63 | 32.91 | 293.44 | 0.5687 | -463.1 | -277.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-19 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.41 | 12.34 | 169.07 | 33.34 | 285.15 | 0.5584 | -576.0 | -498.9 | |
| 30.57 | 184.13 | 18.45 | 111.15 | 16.68 | 169.09 | 33.37 | 292.65 | 0.5730 | -1140.6 | -373.6 | |
| 1.00 | -2.00 | 0.60 | -2.00 | 17.10 | 168.87 | 33.14 | 293.46 | 0.5718 | -842.1 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.42 | 21.42 | 166.96 | 31.23 | 301.69 | 0.5694 | 774.0 | 562.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 23.01 | 166.43 | 30.70 | 304.59 | 0.5730 | 662.0 | 570.0 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 22.64 | 166.07 | 30.34 | 304.27 | 0.5663 | 711.0 | 437.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 18.52 | 164.18 | 28.45 | 298.71 | 0.5171 | 684.0 | 586.5 | |
| 0.00 | 3.17 | 0.00 | 1.82 | 18.39 | 163.47 | 27.74 | 299.00 | 0.5070 | 662.0 | 591.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 18.61 | 163.50 | 27.78 | 299.37 | 0.5088 | 513.0 | 432.9 | |
| 0.00 | 2.45 | 0.00 | 1.40 | 18.81 | 163.18 | 27.45 | 299.98 | 0.5057 | 807.0 | 730.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 18.62 | 163.00 | 27.27 | 299.78 | 0.5023 | 861.0 | 714.4 | |
| 0.00 | 1.81 | 0.00 | 1.05 | 23.21 | 162.06 | 26.33 | 308.53 | 0.5231 | 752.0 | 585.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 25.58 | 162.07 | 26.34 | 312.24 | 0.5427 | 696.0 | 592.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 20.91 | 160.95 | 25.22 | 305.67 | 0.4919 | 623.0 | 381.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
