SDO HMI 2011-07-19 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.84 | 203.46 | 18.73 | 123.19 | 16.84 | 168.77 | 33.59 | 292.85 | 0.5767 | -617.5 | -308.9 | |
|
previous
or next observation for the same group /

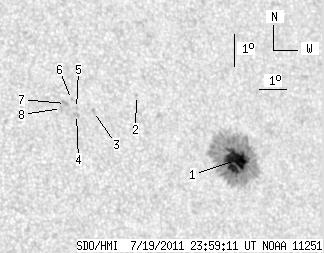

back to the solar disc SDO HMI 2011-07-19 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.84 | 191.04 | 18.73 | 116.00 | 16.73 | 169.09 | 33.91 | 292.47 | 0.5804 | -1105.2 | -375.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 18.91 | 165.78 | 30.61 | 297.95 | 0.5473 | 679.0 | 536.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 18.48 | 164.10 | 28.92 | 298.30 | 0.5230 | 645.0 | 515.2 | |
| 0.00 | 2.72 | 0.00 | 1.57 | 18.41 | 163.47 | 28.29 | 298.62 | 0.5143 | 650.0 | 575.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 18.59 | 163.50 | 28.32 | 298.93 | 0.5158 | 602.0 | 455.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 18.88 | 163.37 | 28.19 | 299.54 | 0.5159 | 669.0 | 581.3 | |
| 0.00 | 2.90 | 0.00 | 1.67 | 18.77 | 163.13 | 27.95 | 299.51 | 0.5120 | 863.0 | 714.1 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 18.61 | 162.96 | 27.78 | 299.37 | 0.5088 | 705.0 | 637.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
