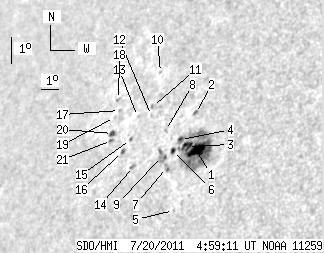

SDO HMI 2011-07-20 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.40 | 139.86 | 23.74 | 120.66 | 24.50 | 78.82 | -53.61 | 63.30 | 0.8217 | -201.0 | -202.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.43 | 101.19 | 11.35 | 85.66 | 24.41 | 79.88 | -52.55 | 63.17 | 0.8123 | -930.3 | -384.9 | |
| 0.00 | 2.36 | 0.00 | 2.04 | 25.58 | 79.10 | -53.33 | 61.96 | 0.8219 | -323.0 | -409.3 | |
| 5.81 | -1.00 | 4.97 | -1.00 | 24.50 | 79.32 | -53.11 | 63.19 | 0.8175 | -592.7 | 999999 | |
| 2.27 | -1.00 | 1.97 | -1.00 | 24.70 | 78.80 | -53.63 | 63.08 | 0.8226 | -396.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.76 | 22.44 | 79.74 | -52.69 | 65.59 | 0.8095 | -415.0 | -332.1 | |
| 1.63 | 2.99 | 1.42 | 2.60 | 24.32 | 78.58 | -53.85 | 63.58 | 0.8237 | -336.8 | -327.6 | |
| 0.00 | 3.09 | 0.00 | 2.67 | 23.77 | 78.58 | -53.85 | 64.24 | 0.8226 | -303.0 | -306.9 | |
| 0.00 | 1.45 | 0.00 | 1.29 | 24.93 | 77.79 | -54.64 | 63.03 | 0.8319 | -221.0 | -168.2 | |
| 0.00 | 7.90 | 0.00 | 6.93 | 24.10 | 78.09 | -54.33 | 63.96 | 0.8276 | 480.0 | 219.7 | |
| 0.00 | 1.09 | 0.00 | 1.01 | 26.76 | 76.20 | -56.23 | 61.25 | 0.8487 | 384.0 | 353.9 | |
| 0.00 | 1.72 | 0.00 | 1.58 | 25.64 | 76.53 | -55.90 | 62.47 | 0.8439 | 571.0 | 485.6 | |
| 0.00 | 1.09 | 0.00 | 0.99 | 25.35 | 76.67 | -55.76 | 62.78 | 0.8422 | 561.0 | 467.1 | |
| 0.00 | 0.73 | 0.00 | 0.68 | 25.27 | 75.88 | -56.55 | 63.04 | 0.8486 | 648.0 | 564.9 | |
| 0.00 | 2.54 | 0.00 | 2.30 | 23.68 | 76.72 | -55.71 | 64.73 | 0.8388 | 673.0 | 565.1 | |
| 0.00 | 1.63 | 0.00 | 1.51 | 24.52 | 75.98 | -56.45 | 63.90 | 0.8465 | 705.0 | 632.4 | |
| 1.45 | 2.09 | 1.35 | 1.94 | 24.11 | 75.77 | -56.65 | 64.41 | 0.8475 | 505.6 | 484.0 | |
| 0.00 | 0.91 | 0.00 | 0.87 | 25.39 | 74.66 | -57.76 | 63.14 | 0.8586 | 583.0 | 530.0 | |
| 0.00 | 1.63 | 0.00 | 1.59 | 25.73 | 74.34 | -58.09 | 62.81 | 0.8618 | 584.0 | 458.9 | |
| 0.00 | 1.18 | 0.00 | 1.14 | 25.14 | 74.53 | -57.90 | 63.44 | 0.8593 | 500.0 | 360.5 | |
| 2.81 | 3.54 | 2.68 | 3.37 | 24.63 | 74.78 | -57.65 | 63.99 | 0.8565 | 471.0 | 571.0 | |
| 0.00 | 1.82 | 0.00 | 1.73 | 24.41 | 74.88 | -57.55 | 64.23 | 0.8553 | 608.0 | 455.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
