SDO HMI 2011-07-20 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.08 | 419.77 | 64.43 | 235.42 | -22.62 | 136.58 | 5.25 | 190.35 | 0.4712 | -188.7 | -92.1 | |
|
previous
or next observation for the same group /

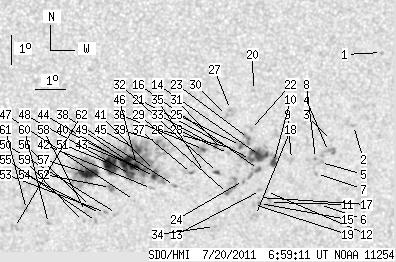

back to the solar disc SDO HMI 2011-07-20 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.81 | 143.57 | 12.24 | 206.73 | 0.4481 | 558.0 | 592.5 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -21.25 | 142.83 | 11.50 | 203.01 | 0.4772 | 716.0 | 555.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -21.74 | 142.14 | 10.80 | 201.35 | 0.4802 | 815.0 | 689.4 | |
| 0.00 | 8.17 | 0.00 | 4.62 | -22.12 | 142.07 | 10.73 | 200.92 | 0.4851 | 933.0 | 746.1 | |
| 0.00 | 2.81 | 0.00 | 1.60 | -22.49 | 141.83 | 10.49 | 200.21 | 0.4891 | 747.0 | 594.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.94 | 141.91 | 10.58 | 199.28 | 0.5100 | 518.0 | 498.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.87 | 141.72 | 10.39 | 199.74 | 0.4938 | 867.0 | 706.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.35 | 141.65 | 10.31 | 200.00 | 0.4861 | 829.0 | 710.2 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -22.37 | 140.85 | 9.51 | 198.55 | 0.4824 | 690.0 | 573.3 | |
| 5.08 | 40.30 | 2.87 | 22.67 | -22.47 | 140.25 | 8.92 | 197.40 | 0.4810 | 936.2 | 764.9 | |
| 0.00 | 2.90 | 0.00 | 1.66 | -23.85 | 140.21 | 8.88 | 196.44 | 0.5008 | 567.0 | 687.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.47 | 140.08 | 8.75 | 196.45 | 0.4947 | 722.0 | 606.6 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -23.43 | 139.88 | 8.55 | 196.11 | 0.4933 | 829.0 | 678.2 | |
| 12.80 | -10.00 | 7.20 | -10.00 | -22.22 | 139.77 | 8.44 | 196.68 | 0.4752 | 1073.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -23.88 | 139.88 | 8.54 | 195.83 | 0.4998 | 893.0 | 752.0 | |
| 2.36 | 8.17 | 1.33 | 4.61 | -22.70 | 139.77 | 8.43 | 196.36 | 0.4822 | 720.0 | 678.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.67 | 139.83 | 8.49 | 195.87 | 0.4966 | 776.0 | 651.8 | |
| 0.00 | 3.09 | 0.00 | 1.77 | -24.30 | 139.77 | 8.43 | 195.40 | 0.5054 | 693.0 | 490.4 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -23.91 | 139.68 | 8.34 | 195.46 | 0.4995 | 714.0 | 539.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.01 | 139.45 | 8.11 | 197.57 | 0.4411 | 591.0 | 537.2 | |
| 2.09 | -10.00 | 1.17 | -10.00 | -22.35 | 139.48 | 8.14 | 196.05 | 0.4759 | 916.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.33 | 139.42 | 8.09 | 196.60 | 0.4605 | 735.0 | 721.8 | |
| 1.27 | 12.25 | 0.71 | 6.85 | -21.64 | 139.37 | 8.04 | 196.30 | 0.4648 | 950.8 | 838.0 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -23.07 | 139.29 | 7.95 | 195.26 | 0.4857 | 806.0 | 662.3 | |
| 2.63 | -23.00 | 1.47 | -23.00 | -21.87 | 139.12 | 7.78 | 195.67 | 0.4672 | 1007.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -21.97 | 138.86 | 7.53 | 195.12 | 0.4677 | 732.0 | 572.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.65 | 138.73 | 7.39 | 195.68 | 0.4473 | 966.0 | 775.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.14 | 138.74 | 7.40 | 194.78 | 0.4697 | 828.0 | 711.4 | |
| 0.82 | 12.07 | 0.46 | 6.84 | -23.52 | 138.78 | 7.44 | 194.08 | 0.4902 | 723.0 | 600.4 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -20.85 | 138.60 | 7.27 | 195.31 | 0.4498 | 726.0 | 577.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.00 | 138.53 | 7.20 | 194.47 | 0.4668 | 733.0 | 545.6 | |
| 2.27 | 3.27 | 1.28 | 1.84 | -22.79 | 138.40 | 7.07 | 193.79 | 0.4781 | 741.1 | 575.1 | |
| 1.63 | 2.09 | 0.91 | 1.17 | -21.90 | 138.29 | 6.96 | 194.07 | 0.4643 | 912.0 | 745.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.66 | 138.41 | 7.07 | 192.83 | 0.5058 | 593.0 | 542.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.78 | 137.97 | 6.64 | 192.98 | 0.4765 | 531.0 | 364.3 | |
| 2.09 | 8.53 | 1.17 | 4.77 | -21.99 | 137.90 | 6.57 | 193.25 | 0.4644 | 804.4 | 618.4 | |
| 1.09 | 4.99 | 0.61 | 2.81 | -22.81 | 137.54 | 6.21 | 192.15 | 0.4755 | 551.2 | 230.2 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -23.22 | 136.99 | 5.66 | 190.93 | 0.4799 | -752.0 | -532.0 | |
| 1.18 | 189.24 | 0.66 | 105.69 | -21.71 | 136.37 | 5.04 | 190.37 | 0.4552 | -921.3 | -493.7 | |
| 2.63 | -39.00 | 1.48 | -39.00 | -22.91 | 136.31 | 4.98 | 189.77 | 0.4733 | -766.6 | 999999 | |
| 0.36 | -39.00 | 0.20 | -39.00 | -22.70 | 136.31 | 4.97 | 189.83 | 0.4701 | -926.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -23.32 | 136.23 | 4.90 | 189.45 | 0.4793 | -566.0 | -414.8 | |
| 2.63 | -39.00 | 1.47 | -39.00 | -22.66 | 135.94 | 4.61 | 189.14 | 0.4686 | -820.3 | 999999 | |
| 2.00 | -39.00 | 1.12 | -39.00 | -22.80 | 135.95 | 4.61 | 189.10 | 0.4707 | -483.3 | 999999 | |
| 5.26 | -39.00 | 2.93 | -39.00 | -22.01 | 135.72 | 4.39 | 188.94 | 0.4581 | -1082.1 | 999999 | |
| 9.71 | -39.00 | 5.43 | -39.00 | -22.49 | 135.70 | 4.37 | 188.74 | 0.4654 | -944.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.73 | 135.68 | 4.34 | 188.27 | 0.4843 | -585.0 | -460.6 | |
| 5.17 | -39.00 | 2.90 | -39.00 | -22.83 | 135.52 | 4.18 | 188.25 | 0.4702 | -724.9 | 999999 | |
| 15.79 | -39.00 | 8.82 | -39.00 | -22.38 | 135.40 | 4.07 | 188.18 | 0.4631 | -1208.4 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -24.18 | 135.09 | 3.76 | 187.04 | 0.4899 | -417.0 | -439.0 | |
| 20.88 | -39.00 | 11.66 | -39.00 | -22.48 | 134.88 | 3.54 | 187.10 | 0.4636 | -1089.0 | 999999 | |
| 0.00 | 4.90 | 0.00 | 2.76 | -23.28 | 134.86 | 3.53 | 186.86 | 0.4757 | -815.0 | -702.7 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -24.14 | 134.72 | 3.39 | 186.36 | 0.4887 | -932.0 | -776.5 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -24.18 | 134.55 | 3.22 | 186.04 | 0.4889 | -675.0 | -565.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -24.46 | 134.43 | 3.09 | 185.74 | 0.4929 | -682.0 | -607.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.93 | 134.21 | 2.88 | 185.46 | 0.4846 | -658.0 | -644.5 | |
| 15.34 | 61.08 | 8.58 | 34.17 | -22.79 | 134.12 | 2.79 | 185.54 | 0.4670 | -1154.9 | -438.0 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -24.11 | 134.05 | 2.72 | 185.12 | 0.4871 | -771.0 | -594.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -24.45 | 133.99 | 2.66 | 184.94 | 0.4923 | -636.0 | -491.4 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -24.52 | 132.82 | 1.49 | 182.76 | 0.4921 | -753.0 | -587.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.03 | 132.08 | 0.75 | 181.41 | 0.4842 | -780.0 | -636.4 | |
| 0.00 | 3.99 | 0.00 | 2.27 | -24.66 | 131.68 | 0.35 | 180.64 | 0.4937 | -617.0 | -595.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
