SDO HMI 2011-07-20 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.35 | 420.79 | 68.04 | 236.12 | -22.60 | 136.56 | 5.78 | 191.37 | 0.4723 | -182.6 | -105.1 | |
|
previous
or next observation for the same group /

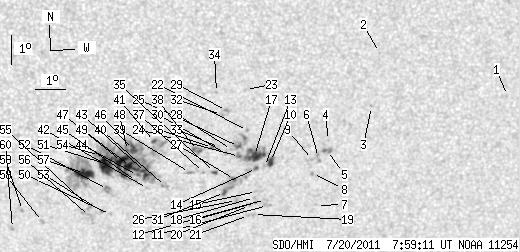

back to the solar disc SDO HMI 2011-07-20 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.36 | 148.06 | 17.28 | 213.44 | 0.5072 | -601.0 | -466.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -18.82 | 143.62 | 12.84 | 207.82 | 0.4525 | 720.0 | 579.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.63 | 143.51 | 12.72 | 205.74 | 0.4763 | 695.0 | 589.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.75 | 142.16 | 11.38 | 202.36 | 0.4836 | 793.0 | 623.4 | |
| 0.00 | 5.17 | 0.00 | 2.93 | -22.09 | 142.16 | 11.37 | 202.06 | 0.4883 | 840.0 | 798.6 | |
| 0.00 | 3.99 | 0.00 | 2.27 | -22.33 | 141.87 | 11.09 | 201.37 | 0.4900 | 631.0 | 659.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -23.99 | 141.95 | 11.16 | 200.22 | 0.5136 | 583.0 | 488.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.88 | 141.72 | 10.93 | 200.67 | 0.4968 | 853.0 | 692.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.39 | 141.68 | 10.89 | 200.98 | 0.4898 | 838.0 | 726.9 | |
| 4.81 | 37.39 | 2.72 | 21.07 | -22.44 | 140.27 | 9.49 | 198.45 | 0.4833 | 924.8 | 742.0 | |
| 0.00 | 2.72 | 0.00 | 1.56 | -23.96 | 140.28 | 9.50 | 197.44 | 0.5051 | 558.0 | 572.5 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -23.75 | 140.20 | 9.41 | 197.43 | 0.5018 | 816.0 | 661.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.61 | 140.08 | 9.30 | 197.99 | 0.4848 | 634.0 | 507.4 | |
| 2.00 | 26.87 | 1.13 | 15.23 | -22.67 | 139.82 | 9.03 | 197.47 | 0.4845 | 731.6 | 536.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -23.47 | 139.88 | 9.09 | 197.05 | 0.4963 | 807.0 | 654.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.85 | 139.87 | 9.08 | 196.79 | 0.5017 | 813.0 | 716.8 | |
| 17.06 | -10.00 | 9.61 | -10.00 | -22.23 | 139.73 | 8.94 | 197.60 | 0.4776 | 1034.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -23.68 | 139.82 | 9.04 | 196.82 | 0.4990 | 663.0 | 569.8 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -24.27 | 139.83 | 9.04 | 196.47 | 0.5076 | 578.0 | 439.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -23.95 | 139.67 | 8.89 | 196.39 | 0.5023 | 697.0 | 565.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.30 | 139.66 | 8.88 | 196.16 | 0.5073 | 652.0 | 472.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.37 | 139.44 | 8.65 | 197.66 | 0.4637 | 970.0 | 674.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.98 | 139.29 | 8.51 | 198.39 | 0.4426 | 588.0 | 512.4 | |
| 1.09 | -10.00 | 0.61 | -10.00 | -22.26 | 139.23 | 8.44 | 196.66 | 0.4757 | 768.3 | 999999 | |
| 2.00 | 12.98 | 1.12 | 7.27 | -21.91 | 139.17 | 8.39 | 196.79 | 0.4705 | 1075.8 | 816.6 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -23.77 | 139.22 | 8.44 | 195.71 | 0.4979 | 750.0 | 531.2 | |
| 1.63 | -14.00 | 0.93 | -14.00 | -23.04 | 139.11 | 8.32 | 195.95 | 0.4868 | 794.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.01 | 138.95 | 8.16 | 196.29 | 0.4709 | 809.0 | 696.9 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -20.68 | 138.71 | 7.92 | 196.71 | 0.4502 | 967.0 | 783.0 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -22.15 | 138.76 | 7.97 | 195.85 | 0.4721 | 709.0 | 651.3 | |
| 2.18 | -14.00 | 1.24 | -14.00 | -23.49 | 138.80 | 8.02 | 195.13 | 0.4920 | 712.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -20.82 | 138.55 | 7.76 | 196.31 | 0.4515 | 714.0 | 570.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.94 | 138.54 | 7.76 | 195.58 | 0.4682 | 189.0 | 374.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.07 | 138.35 | 7.56 | 196.41 | 0.4395 | 742.0 | 573.7 | |
| 2.09 | 2.90 | 1.18 | 1.64 | -22.79 | 138.43 | 7.64 | 194.84 | 0.4803 | 753.7 | 509.9 | |
| 1.72 | 2.36 | 0.97 | 1.32 | -21.94 | 138.31 | 7.53 | 195.14 | 0.4672 | 852.5 | 828.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.79 | 138.06 | 7.27 | 194.16 | 0.4789 | 651.0 | 544.2 | |
| 0.00 | 6.26 | 0.00 | 3.50 | -22.03 | 137.82 | 7.03 | 194.14 | 0.4667 | 921.0 | 827.9 | |
| 0.00 | 3.27 | 0.00 | 1.84 | -22.79 | 137.59 | 6.81 | 193.29 | 0.4771 | 726.0 | 468.8 | |
| 0.00 | 3.18 | 0.00 | 1.79 | -23.26 | 136.82 | 6.03 | 191.61 | 0.4816 | -608.0 | -519.3 | |
| 2.09 | 191.78 | 1.16 | 107.15 | -21.71 | 136.39 | 5.60 | 191.49 | 0.4569 | -874.1 | -505.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -23.32 | 136.22 | 5.43 | 190.46 | 0.4808 | -555.0 | -408.8 | |
| 9.26 | -41.00 | 5.20 | -41.00 | -22.77 | 136.13 | 5.34 | 190.52 | 0.4722 | -721.4 | 999999 | |
| 0.82 | -41.00 | 0.46 | -41.00 | -22.87 | 135.87 | 5.08 | 189.97 | 0.4731 | -534.7 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -23.08 | 135.84 | 5.06 | 189.84 | 0.4761 | -636.0 | -463.8 | |
| 5.63 | -41.00 | 3.13 | -41.00 | -21.98 | 135.70 | 4.92 | 190.01 | 0.4590 | -993.1 | 999999 | |
| 14.79 | -41.00 | 8.28 | -41.00 | -22.56 | 135.62 | 4.84 | 189.63 | 0.4677 | -909.2 | 999999 | |
| 1.27 | -41.00 | 0.71 | -41.00 | -22.01 | 135.51 | 4.72 | 189.61 | 0.4590 | -1088.0 | 999999 | |
| 13.98 | -41.00 | 7.81 | -41.00 | -22.39 | 135.32 | 4.53 | 189.10 | 0.4643 | -1186.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.22 | 135.02 | 4.23 | 187.90 | 0.4914 | -742.0 | -576.6 | |
| 22.78 | -41.00 | 12.73 | -41.00 | -22.49 | 134.86 | 4.07 | 188.15 | 0.4647 | -1103.4 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.35 | -23.35 | 134.89 | 4.10 | 187.93 | 0.4780 | -720.0 | -699.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -24.11 | 134.71 | 3.92 | 187.37 | 0.4892 | -921.0 | -740.9 | |
| 1.36 | -41.00 | 0.76 | -41.00 | -22.18 | 134.59 | 3.80 | 187.71 | 0.4594 | -903.7 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.64 | -23.97 | 134.31 | 3.52 | 186.65 | 0.4863 | -912.0 | -625.7 | |
| 0.00 | 6.44 | 0.00 | 3.66 | -24.28 | 134.31 | 3.53 | 186.58 | 0.4910 | -734.0 | -647.3 | |
| 14.79 | 63.99 | 8.29 | 35.82 | -22.79 | 134.11 | 3.32 | 186.58 | 0.4679 | -1140.8 | -424.6 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -24.45 | 132.74 | 1.96 | 183.64 | 0.4915 | -729.0 | -495.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -24.07 | 132.07 | 1.28 | 182.43 | 0.4850 | -886.0 | -752.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.69 | 131.74 | 0.95 | 181.76 | 0.4944 | -840.0 | -664.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
