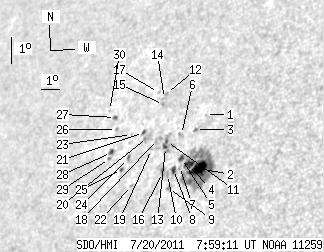

SDO HMI 2011-07-20 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.67 | 159.56 | 26.63 | 133.96 | 24.70 | 78.55 | -52.24 | 62.74 | 0.8098 | -192.6 | -150.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.68 | 26.16 | 79.20 | -51.58 | 60.82 | 0.8077 | -409.0 | -362.6 | |
| 13.52 | 93.67 | 11.05 | 76.58 | 24.42 | 79.86 | -50.93 | 62.76 | 0.7973 | -943.1 | -399.5 | |
| 0.00 | 1.72 | 0.00 | 1.44 | 25.65 | 78.97 | -51.82 | 61.50 | 0.8085 | -572.0 | -463.4 | |
| 5.45 | -2.00 | 4.50 | -2.00 | 24.51 | 79.27 | -51.52 | 62.80 | 0.8031 | -598.5 | 999999 | |
| 2.90 | 3.54 | 2.43 | 2.96 | 24.68 | 78.79 | -52.00 | 62.72 | 0.8079 | -407.0 | -350.6 | |
| 0.00 | 2.54 | 0.00 | 2.16 | 25.44 | 78.32 | -52.46 | 61.91 | 0.8138 | -532.0 | -332.0 | |
| 0.00 | 1.63 | 0.00 | 1.36 | 24.42 | 78.83 | -51.96 | 63.02 | 0.8069 | -473.0 | -372.3 | |
| 2.90 | 3.27 | 2.43 | 2.74 | 24.30 | 78.57 | -52.22 | 63.22 | 0.8090 | -449.3 | -413.5 | |
| 0.00 | 1.45 | 0.00 | 1.21 | 23.69 | 78.65 | -52.13 | 63.95 | 0.8069 | -432.0 | -297.8 | |
| 0.00 | 2.09 | 0.00 | 1.76 | 24.13 | 78.34 | -52.44 | 63.50 | 0.8107 | -333.0 | -266.0 | |
| 0.45 | 10.80 | 0.39 | 9.26 | 25.17 | 77.65 | -53.13 | 62.41 | 0.8191 | -207.6 | -246.6 | |
| 0.00 | 1.63 | 0.00 | 1.45 | 26.70 | 76.64 | -54.15 | 60.84 | 0.8313 | 604.0 | 519.9 | |
| 1.09 | -11.00 | 0.93 | -11.00 | 24.97 | 77.72 | -53.07 | 62.62 | 0.8181 | -329.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.85 | 26.53 | 76.64 | -54.15 | 61.04 | 0.8310 | 523.0 | 469.6 | |
| 0.00 | 1.09 | 0.00 | 0.96 | 26.34 | 76.71 | -54.07 | 61.25 | 0.8299 | 532.0 | 547.4 | |
| 0.00 | 2.90 | 0.00 | 2.46 | 24.17 | 78.04 | -52.75 | 63.51 | 0.8135 | 410.0 | 346.1 | |
| 0.00 | 1.09 | 0.00 | 0.98 | 26.70 | 76.16 | -54.62 | 60.95 | 0.8353 | 485.0 | 396.9 | |
| 0.00 | 4.45 | 0.00 | 3.86 | 25.20 | 77.12 | -53.66 | 62.50 | 0.8239 | 465.0 | 442.6 | |
| 0.00 | 0.91 | 0.00 | 0.79 | 24.86 | 77.00 | -53.79 | 62.93 | 0.8243 | 338.0 | 301.8 | |
| 0.00 | 7.17 | 0.00 | 6.32 | 25.23 | 76.53 | -54.26 | 62.60 | 0.8291 | 575.0 | 519.8 | |
| 0.64 | 1.82 | 0.56 | 1.61 | 25.37 | 76.20 | -54.59 | 62.51 | 0.8323 | 638.0 | 547.6 | |
| 0.00 | 1.27 | 0.00 | 1.11 | 23.65 | 76.61 | -54.18 | 64.46 | 0.8254 | 698.0 | 615.5 | |
| 0.00 | 0.91 | 0.00 | 0.82 | 25.26 | 75.57 | -55.22 | 62.77 | 0.8375 | 387.0 | 324.7 | |
| 0.00 | 2.90 | 0.00 | 2.59 | 24.49 | 75.90 | -54.88 | 63.61 | 0.8331 | 681.0 | 556.9 | |
| 0.64 | 1.72 | 0.57 | 1.54 | 24.12 | 75.73 | -55.05 | 64.08 | 0.8339 | 539.4 | 480.2 | |
| 0.00 | 1.36 | 0.00 | 1.26 | 25.36 | 74.59 | -56.20 | 62.86 | 0.8458 | 497.0 | 423.0 | |
| 1.54 | 1.91 | 1.44 | 1.78 | 25.74 | 74.26 | -56.53 | 62.49 | 0.8492 | 450.7 | 389.5 | |
| 2.54 | 2.90 | 2.33 | 2.66 | 24.62 | 74.81 | -55.98 | 63.69 | 0.8427 | 506.9 | 543.2 | |
| 0.00 | 1.09 | 0.00 | 1.00 | 24.42 | 74.82 | -55.96 | 63.92 | 0.8422 | 423.0 | 373.4 | |
| 0.00 | 0.82 | 0.00 | 0.77 | 25.94 | 73.74 | -57.05 | 62.37 | 0.8538 | 257.0 | 210.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
