SDO HMI 2011-07-20 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.00 | 424.05 | 62.82 | 238.32 | -22.65 | 136.42 | 6.18 | 192.14 | 0.4745 | -210.6 | -112.9 | |
|
previous
or next observation for the same group /

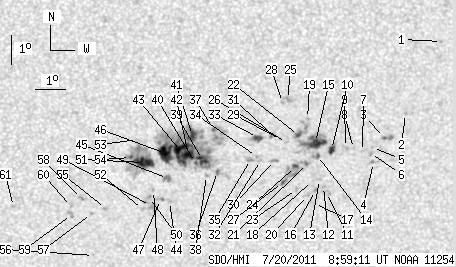

back to the solar disc SDO HMI 2011-07-20 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.86 | 143.67 | 13.43 | 208.84 | 0.4576 | 870.0 | 678.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.26 | 142.68 | 12.44 | 204.65 | 0.4833 | 677.0 | 604.1 | |
| 1.54 | 4.90 | 0.88 | 2.78 | -22.07 | 142.04 | 11.80 | 202.83 | 0.4905 | 837.1 | 730.0 | |
| 0.00 | 4.18 | 0.00 | 2.39 | -22.92 | 141.74 | 11.50 | 201.62 | 0.5006 | 754.0 | 493.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.40 | 141.67 | 11.43 | 201.90 | 0.4930 | 902.0 | 767.6 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -22.61 | 141.62 | 11.38 | 201.65 | 0.4955 | 782.0 | 623.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.54 | 141.34 | 11.10 | 201.23 | 0.4930 | 732.0 | 587.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.43 | 141.03 | 10.79 | 200.78 | 0.4898 | 547.0 | 475.2 | |
| 0.00 | 2.09 | 0.00 | 1.18 | -22.39 | 140.76 | 10.52 | 200.33 | 0.4878 | 694.0 | 637.7 | |
| 3.90 | 6.44 | 2.21 | 3.65 | -22.45 | 140.29 | 10.05 | 199.46 | 0.4862 | 964.1 | 683.8 | |
| 0.00 | 3.63 | 0.00 | 2.08 | -23.93 | 140.24 | 10.00 | 198.31 | 0.5071 | 600.0 | 576.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -23.72 | 140.12 | 9.88 | 198.25 | 0.5036 | 700.0 | 644.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.48 | 139.97 | 9.73 | 198.16 | 0.4993 | 762.0 | 679.1 | |
| 0.73 | 4.36 | 0.41 | 2.47 | -22.65 | 139.84 | 9.60 | 198.51 | 0.4868 | 776.6 | 642.9 | |
| 13.16 | 41.84 | 7.42 | 23.56 | -22.20 | 139.74 | 9.50 | 198.65 | 0.4799 | 1077.3 | 800.3 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.86 | 139.86 | 9.62 | 197.72 | 0.5043 | 868.0 | 696.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.31 | 139.86 | 9.62 | 197.42 | 0.5107 | 617.0 | 482.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -23.51 | 139.73 | 9.49 | 197.73 | 0.4987 | 480.0 | 390.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.38 | 139.42 | 9.18 | 198.65 | 0.4664 | 863.0 | 711.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -24.03 | 139.60 | 9.36 | 197.16 | 0.5055 | 550.0 | 477.5 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -22.92 | 139.52 | 9.28 | 197.75 | 0.4892 | 840.0 | 710.5 | |
| 2.09 | -15.00 | 1.17 | -15.00 | -21.95 | 139.16 | 8.92 | 197.75 | 0.4735 | 998.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -23.81 | 139.22 | 8.98 | 196.63 | 0.5008 | 658.0 | 574.9 | |
| 2.27 | 22.96 | 1.29 | 13.04 | -23.02 | 139.13 | 8.89 | 196.98 | 0.4888 | 845.2 | 516.6 | |
| 0.00 | 4.27 | 0.00 | 2.37 | -20.73 | 138.72 | 8.48 | 197.79 | 0.4534 | 903.0 | 700.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.19 | 138.77 | 8.53 | 196.88 | 0.4752 | 710.0 | 609.9 | |
| 1.27 | -24.00 | 0.72 | -24.00 | -23.56 | 138.73 | 8.49 | 195.92 | 0.4951 | 580.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.82 | 138.56 | 8.32 | 197.40 | 0.4541 | 795.0 | 632.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.08 | 138.57 | 8.33 | 196.56 | 0.4727 | 737.0 | 625.9 | |
| 0.00 | 3.27 | 0.00 | 1.85 | -22.80 | 138.41 | 8.17 | 195.82 | 0.4826 | 962.0 | 587.2 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -21.94 | 138.29 | 8.05 | 196.14 | 0.4695 | 999.0 | 809.4 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -22.80 | 137.94 | 7.70 | 194.96 | 0.4806 | 770.0 | 552.0 | |
| 4.81 | 6.90 | 2.69 | 3.86 | -22.00 | 137.80 | 7.56 | 195.16 | 0.4683 | 812.4 | 496.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.66 | 137.80 | 7.56 | 194.78 | 0.4780 | 841.0 | 687.3 | |
| 0.00 | 3.72 | 0.00 | 2.10 | -22.76 | 137.61 | 7.37 | 194.36 | 0.4788 | 610.0 | 473.3 | |
| 1.63 | 3.45 | 0.92 | 1.95 | -23.16 | 136.53 | 6.29 | 192.14 | 0.4810 | -707.2 | -536.8 | |
| 0.64 | 17.15 | 0.35 | 9.57 | -21.72 | 136.33 | 6.09 | 192.47 | 0.4586 | -963.7 | -271.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -23.29 | 136.17 | 5.93 | 191.40 | 0.4818 | -592.0 | -439.7 | |
| 7.17 | 167.46 | 4.03 | 93.65 | -22.74 | 136.01 | 5.77 | 191.35 | 0.4730 | -777.6 | -556.8 | |
| 1.27 | -39.00 | 0.71 | -39.00 | -22.84 | 135.78 | 5.54 | 190.87 | 0.4739 | -623.3 | 999999 | |
| 8.44 | -39.00 | 4.70 | -39.00 | -21.91 | 135.65 | 5.41 | 191.01 | 0.4594 | -980.2 | 999999 | |
| 9.35 | -39.00 | 5.24 | -39.00 | -22.56 | 135.54 | 5.30 | 190.52 | 0.4690 | -1056.2 | 999999 | |
| 18.15 | -39.00 | 10.16 | -39.00 | -22.46 | 135.30 | 5.06 | 190.11 | 0.4668 | -1106.5 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -24.19 | 134.97 | 4.73 | 188.83 | 0.4920 | -801.0 | -509.2 | |
| 0.00 | 5.54 | 0.00 | 3.12 | -23.39 | 134.87 | 4.63 | 188.92 | 0.4797 | -858.0 | -691.2 | |
| 18.06 | -39.00 | 10.10 | -39.00 | -22.52 | 134.78 | 4.54 | 189.05 | 0.4664 | -1099.8 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -24.11 | 134.66 | 4.42 | 188.29 | 0.4903 | -838.0 | -690.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.80 | 134.42 | 4.18 | 187.94 | 0.4850 | -808.0 | -637.2 | |
| 0.00 | 7.99 | 0.00 | 4.54 | -24.32 | 134.34 | 4.10 | 187.62 | 0.4927 | -760.0 | -646.6 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -24.04 | 134.29 | 4.05 | 187.63 | 0.4884 | -898.0 | -532.6 | |
| 16.25 | 60.45 | 9.11 | 33.86 | -22.83 | 134.06 | 3.82 | 187.54 | 0.4695 | -1070.6 | -432.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.46 | 134.07 | 3.83 | 187.10 | 0.4943 | -593.0 | -511.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -22.04 | 133.84 | 3.60 | 187.35 | 0.4569 | -145.0 | -101.2 | |
| 1.27 | -51.00 | 0.71 | -51.00 | -22.65 | 133.62 | 3.38 | 186.74 | 0.4659 | -953.3 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -24.42 | 132.83 | 2.59 | 184.82 | 0.4917 | -665.0 | -465.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -26.07 | 132.46 | 2.22 | 183.88 | 0.5162 | -521.0 | -399.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.59 | 132.36 | 2.12 | 183.93 | 0.4938 | -731.0 | -496.4 | |
| 0.00 | 3.09 | 0.00 | 1.75 | -24.07 | 132.02 | 1.78 | 183.37 | 0.4855 | -852.0 | -618.6 | |
| 0.00 | 3.09 | 0.00 | 1.76 | -24.62 | 131.69 | 1.45 | 182.69 | 0.4937 | -801.0 | -649.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -24.35 | 131.69 | 1.45 | 182.71 | 0.4894 | -808.0 | -673.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.34 | 129.75 | -0.49 | 179.09 | 0.4890 | -627.0 | -426.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
