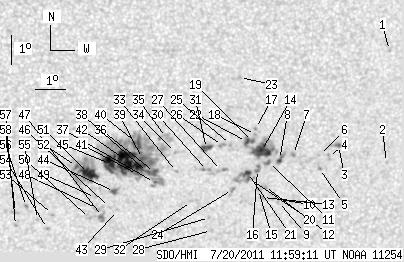

SDO HMI 2011-07-20 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.89 | 427.37 | 68.68 | 240.95 | -22.65 | 136.25 | 7.66 | 194.91 | 0.4796 | -187.2 | -159.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | -18.90 | 143.69 | 15.10 | 211.69 | 0.4710 | 734.0 | 630.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.69 | 143.98 | 15.39 | 208.09 | 0.5220 | 550.0 | 432.0 | |
| 2.00 | 3.99 | 1.14 | 2.28 | -22.07 | 142.28 | 13.69 | 206.00 | 0.5023 | 799.5 | 797.8 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -22.44 | 141.98 | 13.39 | 205.16 | 0.5053 | 804.0 | 636.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.84 | 141.71 | 13.12 | 204.36 | 0.5091 | 781.0 | 663.7 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -22.40 | 141.67 | 13.08 | 204.69 | 0.5028 | 870.0 | 731.0 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.34 | 140.78 | 12.19 | 203.26 | 0.4967 | 829.0 | 775.3 | |
| 2.63 | 5.35 | 1.50 | 3.05 | -22.51 | 140.33 | 11.74 | 202.35 | 0.4962 | 832.7 | 756.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -23.96 | 140.42 | 11.83 | 201.35 | 0.5168 | 679.0 | 472.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -23.85 | 140.24 | 11.65 | 201.13 | 0.5144 | 536.0 | 545.8 | |
| 1.72 | 2.54 | 0.98 | 1.45 | -22.60 | 139.97 | 11.37 | 201.65 | 0.4955 | 761.9 | 752.0 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -23.43 | 139.90 | 11.31 | 200.89 | 0.5067 | 798.0 | 742.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.81 | 139.87 | 11.28 | 200.54 | 0.5118 | 771.0 | 648.2 | |
| 16.24 | 42.47 | 9.21 | 24.06 | -22.19 | 139.70 | 11.10 | 201.52 | 0.4882 | 1064.9 | 661.9 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -23.53 | 139.71 | 11.12 | 200.49 | 0.5070 | 756.0 | 660.5 | |
| 0.00 | 4.08 | 0.00 | 2.33 | -22.84 | 139.61 | 11.02 | 200.86 | 0.4969 | 873.0 | 810.4 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.43 | 139.44 | 10.85 | 201.68 | 0.4761 | 842.0 | 695.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.64 | 139.45 | 10.86 | 201.54 | 0.4791 | 995.0 | 828.5 | |
| 0.64 | -14.00 | 0.36 | -14.00 | -21.88 | 139.37 | 10.78 | 201.20 | 0.4819 | 1108.1 | 999999 | |
| 1.27 | 15.15 | 0.73 | 8.65 | -23.14 | 139.34 | 10.75 | 200.15 | 0.4997 | 794.6 | 549.6 | |
| 3.18 | -20.00 | 1.81 | -20.00 | -22.94 | 139.29 | 10.69 | 200.22 | 0.4965 | 884.6 | 999999 | |
| 2.45 | -14.00 | 1.38 | -14.00 | -21.87 | 139.17 | 10.58 | 200.84 | 0.4808 | 1036.3 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -19.70 | 138.79 | 10.19 | 201.95 | 0.4476 | 835.0 | 663.3 | |
| 0.00 | 2.27 | 0.00 | 1.30 | -23.52 | 138.83 | 10.23 | 199.00 | 0.5024 | 788.0 | 601.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -21.97 | 138.64 | 10.05 | 199.82 | 0.4793 | 856.0 | 692.9 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -22.00 | 138.38 | 9.79 | 199.31 | 0.4784 | 838.0 | 791.3 | |
| 0.00 | 3.90 | 0.00 | 2.22 | -22.85 | 138.40 | 9.81 | 198.74 | 0.4909 | 618.0 | 592.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -24.94 | 138.23 | 9.63 | 197.05 | 0.5197 | 693.0 | 525.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.48 | 138.12 | 9.53 | 197.16 | 0.5128 | 669.0 | 497.4 | |
| 0.00 | 6.35 | 0.00 | 3.60 | -22.85 | 137.93 | 9.34 | 197.91 | 0.4885 | 555.0 | 550.4 | |
| 6.26 | 6.81 | 3.53 | 3.83 | -22.09 | 137.85 | 9.26 | 198.28 | 0.4772 | 804.8 | 605.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.91 | 137.47 | 8.88 | 196.40 | 0.5018 | 615.0 | 392.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.87 | 136.90 | 8.31 | 196.03 | 0.4842 | 357.0 | 215.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.21 | 136.83 | 8.24 | 196.30 | 0.4743 | -631.0 | -435.5 | |
| 0.00 | 8.62 | 0.00 | 4.82 | -21.70 | 136.50 | 7.91 | 196.01 | 0.4653 | -279.0 | -322.0 | |
| 3.54 | 213.88 | 2.00 | 120.01 | -22.89 | 136.17 | 7.57 | 194.67 | 0.4816 | -469.3 | -466.4 | |
| 1.09 | -36.00 | 0.62 | -36.00 | -23.24 | 136.19 | 7.59 | 194.51 | 0.4868 | -581.0 | 999999 | |
| 2.00 | -36.00 | 1.13 | -36.00 | -22.89 | 135.93 | 7.34 | 194.23 | 0.4807 | -524.0 | 999999 | |
| 1.91 | -36.00 | 1.07 | -36.00 | -22.41 | 135.74 | 7.15 | 194.14 | 0.4728 | -629.0 | 999999 | |
| 6.90 | -36.00 | 3.85 | -36.00 | -21.89 | 135.55 | 6.96 | 194.07 | 0.4643 | -958.5 | 999999 | |
| 0.54 | -36.00 | 0.31 | -36.00 | -22.95 | 135.60 | 7.01 | 193.59 | 0.4804 | -587.2 | 999999 | |
| 35.03 | -36.00 | 19.67 | -36.00 | -22.50 | 135.25 | 6.66 | 193.15 | 0.4724 | -1117.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -24.20 | 135.00 | 6.41 | 191.87 | 0.4968 | -653.0 | -569.0 | |
| 3.27 | 4.08 | 1.85 | 2.31 | -23.53 | 134.86 | 6.27 | 191.93 | 0.4865 | -788.4 | -614.0 | |
| 15.24 | -36.00 | 8.56 | -36.00 | -22.57 | 134.65 | 6.06 | 191.99 | 0.4714 | -1048.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.09 | 134.72 | 6.13 | 191.42 | 0.4944 | -782.0 | -602.8 | |
| 0.00 | 5.35 | 0.00 | 3.06 | -24.40 | 134.50 | 5.91 | 190.89 | 0.4984 | -812.0 | -668.2 | |
| 0.00 | 4.45 | 0.00 | 2.53 | -24.12 | 134.32 | 5.73 | 190.68 | 0.4937 | -572.0 | -569.7 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -23.74 | 134.24 | 5.65 | 190.69 | 0.4877 | -752.0 | -611.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -24.47 | 134.07 | 5.48 | 190.08 | 0.4982 | -545.0 | -495.9 | |
| 14.07 | 53.27 | 7.91 | 29.91 | -22.90 | 133.97 | 5.38 | 190.53 | 0.4744 | -1091.2 | -492.4 | |
| 1.91 | -51.00 | 1.07 | -51.00 | -22.66 | 133.56 | 4.97 | 189.84 | 0.4696 | -910.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.32 | 132.82 | 4.23 | 187.87 | 0.4930 | -581.0 | -498.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.81 | 132.67 | 4.08 | 187.45 | 0.5000 | -672.0 | -516.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -24.49 | 132.32 | 3.73 | 186.90 | 0.4946 | -801.0 | -658.0 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -24.03 | 131.94 | 3.35 | 186.32 | 0.4870 | -937.0 | -763.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.70 | 131.59 | 3.00 | 185.51 | 0.4965 | -744.0 | -613.2 | |
| 0.00 | 2.99 | 0.00 | 1.70 | -24.24 | 131.58 | 2.99 | 185.59 | 0.4896 | -857.0 | -561.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
