SDO HMI 2011-07-20 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.17 | 446.70 | 59.30 | 252.18 | -22.64 | 136.18 | 8.14 | 195.80 | 0.4814 | -211.0 | -148.1 | |
|
previous
or next observation for the same group /

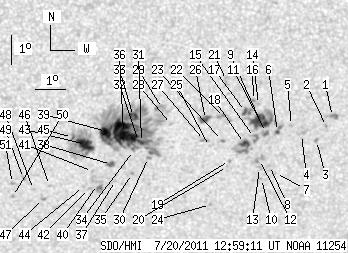

back to the solar disc SDO HMI 2011-07-20 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.99 | 0.00 | 2.86 | -22.07 | 142.17 | 14.13 | 206.71 | 0.5054 | 903.0 | 730.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.41 | 142.00 | 13.96 | 206.12 | 0.5087 | 909.0 | 760.3 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -22.89 | 141.71 | 13.67 | 205.21 | 0.5131 | 761.0 | 584.8 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -22.67 | 141.18 | 13.14 | 204.55 | 0.5069 | 615.0 | 610.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.35 | 140.81 | 12.77 | 204.22 | 0.5003 | 828.0 | 731.1 | |
| 1.18 | 4.90 | 0.67 | 2.80 | -22.55 | 140.36 | 12.32 | 203.29 | 0.5002 | 856.6 | 746.0 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -24.00 | 140.42 | 12.39 | 202.21 | 0.5205 | 615.0 | 533.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -23.72 | 140.19 | 12.15 | 202.06 | 0.5153 | 743.0 | 557.5 | |
| 0.00 | 4.08 | 0.00 | 2.33 | -22.58 | 139.95 | 11.91 | 202.59 | 0.4982 | 854.0 | 727.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -24.17 | 139.96 | 11.92 | 201.33 | 0.5202 | 602.0 | 476.6 | |
| 19.05 | 33.93 | 10.83 | 19.28 | -22.20 | 139.75 | 11.71 | 202.57 | 0.4918 | 1021.2 | 601.6 | |
| 0.00 | 6.26 | 0.00 | 3.60 | -23.50 | 139.83 | 11.79 | 201.64 | 0.5103 | 723.0 | 682.8 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -23.78 | 139.86 | 11.82 | 201.46 | 0.5143 | 733.0 | 549.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.61 | 139.64 | 11.60 | 202.86 | 0.4830 | 765.0 | 643.6 | |
| 0.00 | 4.81 | 0.00 | 2.74 | -22.74 | 139.60 | 11.56 | 201.85 | 0.4985 | 727.0 | 776.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.47 | 139.46 | 11.42 | 202.67 | 0.4800 | 913.0 | 743.3 | |
| 2.36 | 7.71 | 1.33 | 4.36 | -21.84 | 139.22 | 11.18 | 201.93 | 0.4838 | 1000.4 | 894.0 | |
| 4.63 | 17.24 | 2.64 | 9.86 | -22.94 | 139.28 | 11.24 | 201.14 | 0.4995 | 887.7 | 528.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.52 | 138.82 | 10.78 | 199.93 | 0.5052 | 499.0 | 538.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.73 | 138.77 | 10.73 | 199.69 | 0.5078 | 447.0 | 333.0 | |
| 0.00 | 4.54 | 0.00 | 2.54 | -20.78 | 138.51 | 10.47 | 201.53 | 0.4646 | 521.0 | 627.7 | |
| 0.00 | 5.90 | 0.00 | 3.33 | -22.04 | 138.53 | 10.49 | 200.56 | 0.4827 | 751.0 | 732.0 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -22.83 | 138.53 | 10.49 | 199.94 | 0.4939 | 833.0 | 704.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -25.05 | 138.30 | 10.26 | 198.01 | 0.5241 | 710.0 | 483.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -23.03 | 138.10 | 10.06 | 199.06 | 0.4946 | 613.0 | 452.4 | |
| 5.63 | 6.81 | 3.17 | 3.84 | -22.10 | 137.90 | 9.86 | 199.38 | 0.4802 | 826.4 | 710.8 | |
| 0.00 | 3.18 | 0.00 | 1.80 | -22.82 | 137.92 | 9.88 | 198.88 | 0.4907 | 788.0 | 652.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.25 | 136.78 | 8.74 | 197.21 | 0.4771 | -511.0 | -453.9 | |
| 0.00 | 6.90 | 0.00 | 3.86 | -21.70 | 136.45 | 8.41 | 196.96 | 0.4675 | -311.0 | -355.3 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -23.38 | 136.08 | 8.04 | 195.24 | 0.4906 | -568.0 | -482.1 | |
| 1.63 | 226.11 | 0.92 | 127.01 | -22.86 | 135.81 | 7.78 | 195.06 | 0.4819 | -572.5 | -422.4 | |
| 1.27 | -31.00 | 0.72 | -31.00 | -22.82 | 135.71 | 7.67 | 194.89 | 0.4809 | -632.3 | 999999 | |
| 6.08 | -31.00 | 3.40 | -31.00 | -21.96 | 135.50 | 7.46 | 194.99 | 0.4673 | -1048.5 | 999999 | |
| 0.73 | -31.00 | 0.41 | -31.00 | -23.13 | 135.56 | 7.52 | 194.44 | 0.4849 | -480.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -23.93 | 135.58 | 7.54 | 194.03 | 0.4967 | -689.0 | -531.1 | |
| 34.21 | -31.00 | 19.23 | -31.00 | -22.51 | 135.20 | 7.16 | 194.10 | 0.4743 | -1155.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.16 | 135.02 | 6.98 | 192.91 | 0.4982 | -498.0 | -420.6 | |
| 3.36 | 4.26 | 1.90 | 2.42 | -23.61 | 134.85 | 6.81 | 192.89 | 0.4894 | -805.0 | -768.6 | |
| 10.34 | -31.00 | 5.81 | -31.00 | -22.47 | 134.63 | 6.59 | 193.05 | 0.4716 | -1229.6 | 999999 | |
| 0.00 | 11.07 | 0.00 | 6.32 | -24.30 | 134.42 | 6.38 | 191.78 | 0.4982 | -619.0 | -645.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.84 | 134.23 | 6.19 | 191.64 | 0.4909 | -810.0 | -556.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -24.43 | 134.16 | 6.12 | 191.25 | 0.4995 | -593.0 | -468.3 | |
| 13.43 | 56.16 | 7.56 | 31.59 | -22.91 | 133.95 | 5.91 | 191.55 | 0.4760 | -1079.2 | -446.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.36 | 133.95 | 5.91 | 190.91 | 0.4978 | -548.0 | -417.2 | |
| 1.27 | -43.00 | 0.71 | -43.00 | -22.66 | 133.51 | 5.47 | 190.81 | 0.4710 | -882.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.32 | 132.81 | 4.77 | 188.85 | 0.4942 | -517.0 | -442.4 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -24.77 | 132.62 | 4.58 | 188.37 | 0.5005 | -491.0 | -535.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -24.45 | 132.28 | 4.24 | 187.84 | 0.4950 | -712.0 | -575.4 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -24.07 | 131.93 | 3.89 | 187.31 | 0.4885 | -850.0 | -771.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -24.69 | 131.58 | 3.54 | 186.50 | 0.4973 | -794.0 | -680.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -24.24 | 131.56 | 3.53 | 186.59 | 0.4904 | -896.0 | -680.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
