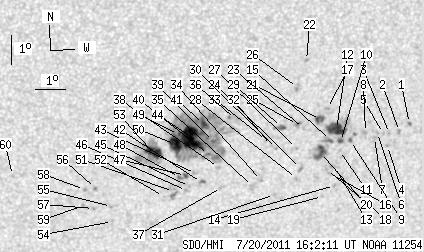

SDO HMI 2011-07-20 16:02:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.91 | 439.34 | 65.20 | 249.28 | -22.68 | 136.08 | 9.73 | 198.62 | 0.4892 | -101.0 | -160.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 16:02:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.27 | 0.21 | 0.74 | -22.08 | 142.35 | 16.00 | 209.63 | 0.5187 | 857.0 | 727.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.34 | 142.04 | 15.69 | 208.89 | 0.5198 | 899.0 | 767.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -22.40 | 141.71 | 15.36 | 208.31 | 0.5182 | 777.0 | 668.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.81 | 141.69 | 15.34 | 207.88 | 0.5234 | 811.0 | 647.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.40 | 141.50 | 15.15 | 208.00 | 0.5167 | 820.0 | 678.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.36 | 141.29 | 14.94 | 207.72 | 0.5147 | 795.0 | 641.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.53 | 141.21 | 14.86 | 207.42 | 0.5164 | 715.0 | 559.6 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -22.35 | 140.88 | 14.53 | 207.08 | 0.5118 | 883.0 | 794.9 | |
| 0.63 | 3.36 | 0.37 | 1.93 | -22.61 | 140.40 | 14.05 | 206.07 | 0.5120 | 862.7 | 680.4 | |
| 2.27 | 35.10 | 1.30 | 20.10 | -22.64 | 140.06 | 13.71 | 205.50 | 0.5102 | 745.5 | 551.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.95 | 140.06 | 13.71 | 205.22 | 0.5143 | 358.0 | 398.7 | |
| 17.23 | -10.00 | 9.87 | -10.00 | -22.22 | 139.89 | 13.53 | 205.59 | 0.5035 | 1075.0 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.73 | -23.50 | 139.95 | 13.60 | 204.55 | 0.5209 | 705.0 | 685.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -24.16 | 140.02 | 13.67 | 204.09 | 0.5302 | 554.0 | 398.7 | |
| 1.63 | 23.85 | 0.94 | 13.72 | -22.60 | 139.72 | 13.37 | 204.98 | 0.5074 | 826.2 | 655.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.74 | 139.80 | 13.45 | 204.11 | 0.5232 | 657.0 | 574.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.50 | 139.51 | 13.16 | 205.65 | 0.4913 | 740.0 | 682.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -23.60 | 139.69 | 13.33 | 204.05 | 0.5206 | 776.0 | 659.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -24.54 | 139.65 | 13.30 | 203.21 | 0.5330 | 584.0 | 437.7 | |
| 8.98 | -15.00 | 5.17 | -15.00 | -23.00 | 139.42 | 13.07 | 204.14 | 0.5110 | 841.6 | 999999 | |
| 5.35 | 6.62 | 3.05 | 3.77 | -21.87 | 139.31 | 12.96 | 204.97 | 0.4950 | 1031.5 | 847.9 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -19.86 | 138.67 | 12.32 | 205.78 | 0.4634 | 855.0 | 681.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.17 | 138.77 | 12.42 | 203.78 | 0.4957 | 754.0 | 547.5 | |
| 0.00 | 3.63 | 0.00 | 2.09 | -23.54 | 138.79 | 12.44 | 202.66 | 0.5146 | 727.0 | 501.4 | |
| 0.00 | 3.45 | 0.00 | 1.96 | -22.03 | 138.55 | 12.20 | 203.54 | 0.4924 | 945.0 | 775.2 | |
| 0.00 | 2.99 | 0.00 | 1.68 | -20.77 | 138.45 | 12.09 | 204.50 | 0.4744 | 788.0 | 678.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.85 | 138.59 | 12.24 | 202.91 | 0.5040 | 789.0 | 646.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.89 | 138.69 | 12.34 | 202.22 | 0.5188 | 633.0 | 443.7 | |
| 3.54 | 5.62 | 2.01 | 3.19 | -22.12 | 138.02 | 11.67 | 202.55 | 0.4905 | 858.5 | 639.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -22.84 | 137.92 | 11.56 | 201.78 | 0.4999 | 716.0 | 602.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -24.43 | 137.99 | 11.64 | 200.67 | 0.5224 | 749.0 | 502.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.73 | 137.74 | 11.39 | 201.56 | 0.4974 | 502.0 | 369.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.56 | 137.55 | 11.20 | 201.39 | 0.4940 | 661.0 | 543.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -23.94 | 137.50 | 11.15 | 200.24 | 0.5130 | 851.0 | 638.1 | |
| 0.00 | 4.35 | 0.00 | 2.51 | -24.14 | 137.22 | 10.86 | 199.62 | 0.5144 | 648.0 | 479.8 | |
| 0.00 | 7.07 | 0.00 | 3.98 | -21.82 | 136.46 | 10.11 | 200.03 | 0.4776 | -311.0 | -325.7 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -24.16 | 136.16 | 9.81 | 197.84 | 0.5096 | 442.0 | 229.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -23.46 | 136.01 | 9.66 | 198.04 | 0.4989 | -529.0 | -393.8 | |
| 1.72 | 229.57 | 0.97 | 129.51 | -22.56 | 135.78 | 9.43 | 198.25 | 0.4849 | -439.8 | -409.3 | |
| 1.09 | -39.00 | 0.62 | -39.00 | -23.01 | 135.64 | 9.29 | 197.70 | 0.4907 | -498.2 | 999999 | |
| 4.54 | -39.00 | 2.55 | -39.00 | -21.98 | 135.41 | 9.05 | 197.98 | 0.4746 | -1011.4 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.97 | -23.97 | 135.47 | 9.12 | 196.78 | 0.5038 | -741.0 | -503.1 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -23.66 | 135.25 | 8.90 | 196.59 | 0.4983 | -702.0 | -637.8 | |
| 34.01 | -39.00 | 19.18 | -39.00 | -22.45 | 135.07 | 8.72 | 197.04 | 0.4800 | -1201.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -24.11 | 135.08 | 8.73 | 196.01 | 0.5041 | -621.0 | -485.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -24.25 | 134.99 | 8.64 | 195.77 | 0.5057 | -652.0 | -506.5 | |
| 1.81 | 4.99 | 1.04 | 2.85 | -23.72 | 134.92 | 8.57 | 195.96 | 0.4978 | -823.0 | -775.7 | |
| 1.54 | -47.00 | 0.88 | -47.00 | -23.79 | 134.72 | 8.37 | 195.57 | 0.4980 | -805.6 | 999999 | |
| 1.09 | -39.00 | 0.61 | -39.00 | -22.31 | 134.59 | 8.24 | 196.25 | 0.4758 | -1310.8 | 999999 | |
| 16.24 | -39.00 | 9.16 | -39.00 | -22.65 | 134.51 | 8.16 | 195.89 | 0.4805 | -1001.0 | 999999 | |
| 0.00 | 8.34 | 0.00 | 4.78 | -24.28 | 134.55 | 8.20 | 195.00 | 0.5044 | -581.0 | -646.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -24.45 | 134.22 | 7.87 | 194.33 | 0.5056 | -466.0 | -397.2 | |
| 12.88 | 45.35 | 7.27 | 25.61 | -22.92 | 133.80 | 7.44 | 194.41 | 0.4815 | -1100.5 | -468.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -25.31 | 132.55 | 6.19 | 191.01 | 0.5126 | -691.0 | -495.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -24.78 | 132.49 | 6.13 | 191.13 | 0.5047 | -534.0 | -503.4 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -24.14 | 131.92 | 5.57 | 190.37 | 0.4936 | -927.0 | -763.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.84 | 131.88 | 5.53 | 190.03 | 0.5040 | -870.0 | -679.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -24.17 | 131.55 | 5.20 | 189.69 | 0.4931 | -867.0 | -724.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -24.73 | 131.54 | 5.19 | 189.46 | 0.5015 | -867.0 | -657.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -23.67 | 129.13 | 2.78 | 185.32 | 0.4807 | 184.0 | 291.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
