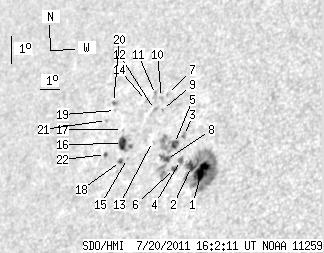

SDO HMI 2011-07-20 16:02:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.19 | 168.08 | 28.25 | 130.00 | 24.75 | 78.31 | -48.04 | 61.52 | 0.7702 | -95.5 | -163.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 16:02:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.34 | 89.34 | 8.53 | 67.24 | 24.35 | 79.77 | -46.59 | 61.57 | 0.7549 | -958.1 | -462.4 | |
| 3.63 | -1.00 | 2.76 | -1.00 | 24.48 | 79.21 | -47.14 | 61.58 | 0.7608 | -684.5 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.97 | 25.45 | 78.36 | -47.99 | 60.63 | 0.7721 | -597.0 | -495.6 | |
| 1.00 | 3.08 | 0.77 | 2.37 | 24.64 | 78.58 | -47.77 | 61.58 | 0.7675 | -588.9 | -422.8 | |
| 4.54 | 19.14 | 3.54 | 15.01 | 25.16 | 78.01 | -48.34 | 61.10 | 0.7747 | -630.0 | 58.9 | |
| 2.90 | 2.99 | 2.24 | 2.31 | 24.37 | 78.42 | -47.93 | 61.97 | 0.7683 | -536.7 | -617.0 | |
| 0.00 | 1.09 | 0.00 | 0.88 | 26.71 | 76.77 | -49.58 | 59.57 | 0.7909 | 541.0 | 488.6 | |
| 2.36 | 16.24 | 1.84 | 12.65 | 24.63 | 77.88 | -48.47 | 61.81 | 0.7744 | -536.7 | 19.4 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 26.21 | 76.80 | -49.55 | 60.17 | 0.7892 | 611.0 | 541.5 | |
| 0.00 | 1.45 | 0.00 | 1.17 | 26.60 | 76.52 | -49.83 | 59.79 | 0.7928 | 701.0 | 537.0 | |
| 0.00 | 2.63 | 0.00 | 2.14 | 26.67 | 76.16 | -50.19 | 59.81 | 0.7964 | 565.0 | 476.7 | |
| 0.00 | 1.36 | 0.00 | 1.10 | 26.19 | 76.39 | -49.96 | 60.33 | 0.7929 | 711.0 | 608.7 | |
| 0.00 | 0.73 | 0.00 | 0.58 | 25.16 | 76.88 | -49.47 | 61.45 | 0.7855 | -259.0 | -300.4 | |
| 0.00 | 1.45 | 0.00 | 1.19 | 26.45 | 75.81 | -50.54 | 60.18 | 0.7990 | 429.0 | 335.6 | |
| 0.00 | 0.54 | 0.00 | 0.44 | 24.54 | 75.91 | -50.44 | 62.48 | 0.7930 | 704.0 | 616.0 | |
| 6.98 | 15.69 | 5.73 | 12.83 | 25.00 | 75.38 | -50.97 | 62.06 | 0.7991 | 707.4 | 601.9 | |
| 0.00 | 0.91 | 0.00 | 0.75 | 25.45 | 75.12 | -51.23 | 61.59 | 0.8026 | 397.0 | 348.5 | |
| 1.63 | 2.27 | 1.33 | 1.85 | 24.42 | 75.60 | -50.75 | 62.71 | 0.7956 | 636.6 | 613.0 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 26.03 | 74.38 | -51.97 | 61.09 | 0.8108 | 393.0 | 454.7 | |
| 0.36 | 1.45 | 0.31 | 1.23 | 26.28 | 74.11 | -52.24 | 60.86 | 0.8138 | 568.5 | 532.8 | |
| 0.00 | 1.09 | 0.00 | 0.92 | 25.68 | 74.10 | -52.25 | 61.58 | 0.8124 | 506.0 | 412.7 | |
| 1.45 | 2.09 | 1.20 | 1.73 | 24.60 | 74.70 | -51.65 | 62.73 | 0.8044 | 542.2 | 540.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
