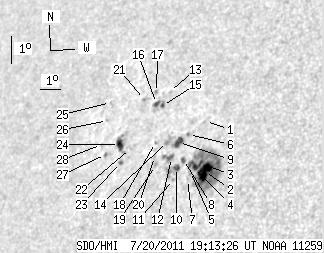

SDO HMI 2011-07-20 19:13:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.00 | 166.07 | 31.61 | 124.16 | 24.65 | 78.43 | -46.15 | 61.03 | 0.7511 | -181.3 | -188.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 19:13:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.27 | 25.92 | 78.99 | -45.59 | 59.22 | 0.7502 | -432.0 | -354.8 | |
| 14.24 | 93.95 | 10.40 | 68.67 | 24.32 | 79.70 | -44.88 | 61.02 | 0.7373 | -985.6 | -438.9 | |
| 1.09 | -2.00 | 0.80 | -2.00 | 24.56 | 79.40 | -45.18 | 60.81 | 0.7413 | -507.3 | 999999 | |
| 2.27 | -2.00 | 1.67 | -2.00 | 24.42 | 79.18 | -45.40 | 61.08 | 0.7430 | -718.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.54 | 24.28 | 79.05 | -45.53 | 61.30 | 0.7439 | -227.0 | -394.6 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 25.46 | 78.39 | -46.19 | 60.02 | 0.7545 | -621.0 | -588.2 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 24.02 | 79.03 | -45.55 | 61.65 | 0.7432 | -453.0 | -385.1 | |
| 2.54 | 2.72 | 1.90 | 2.03 | 24.65 | 78.54 | -46.04 | 61.01 | 0.7502 | -494.4 | -396.0 | |
| 6.26 | 7.35 | 4.73 | 5.55 | 25.17 | 78.04 | -46.54 | 60.50 | 0.7570 | -624.9 | -269.6 | |
| 3.26 | 11.52 | 2.44 | 8.63 | 24.37 | 78.34 | -46.25 | 61.43 | 0.7515 | -533.2 | 113.1 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 23.98 | 78.37 | -46.21 | 61.92 | 0.7498 | -354.0 | -245.4 | |
| 2.00 | 6.17 | 1.51 | 4.66 | 24.68 | 77.94 | -46.64 | 61.17 | 0.7564 | -612.5 | -420.6 | |
| 0.00 | 0.63 | 0.00 | 0.50 | 26.79 | 76.74 | -47.84 | 58.93 | 0.7749 | 592.0 | 537.4 | |
| 0.00 | 3.99 | 0.00 | 3.04 | 25.18 | 77.50 | -47.08 | 60.69 | 0.7624 | 273.0 | 239.3 | |
| 1.63 | 7.07 | 1.27 | 5.53 | 26.32 | 76.64 | -47.94 | 59.54 | 0.7743 | 585.3 | 565.4 | |
| 2.00 | -15.00 | 1.56 | -15.00 | 26.36 | 76.31 | -48.27 | 59.60 | 0.7776 | 744.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.07 | 26.72 | 76.11 | -48.47 | 59.22 | 0.7806 | 509.0 | 385.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 25.11 | 76.93 | -47.65 | 60.96 | 0.7677 | -334.0 | -266.9 | |
| 0.00 | 2.18 | 0.00 | 1.66 | 24.38 | 77.30 | -47.28 | 61.76 | 0.7618 | 411.0 | 323.0 | |
| 0.00 | 1.45 | 0.00 | 1.11 | 24.66 | 77.11 | -47.47 | 61.46 | 0.7646 | -285.0 | -206.1 | |
| 0.00 | 1.18 | 0.00 | 0.94 | 26.45 | 75.64 | -48.94 | 59.70 | 0.7842 | 696.0 | 535.3 | |
| 0.00 | 0.73 | 0.00 | 0.57 | 24.84 | 75.81 | -48.78 | 61.64 | 0.7779 | 773.0 | 626.4 | |
| 0.45 | 1.72 | 0.36 | 1.36 | 24.37 | 75.54 | -49.04 | 62.31 | 0.7791 | 751.6 | 661.6 | |
| 6.26 | 14.06 | 4.97 | 11.16 | 24.94 | 75.19 | -49.39 | 61.71 | 0.7841 | 719.8 | 586.7 | |
| 0.00 | 0.63 | 0.00 | 0.52 | 26.25 | 73.96 | -50.62 | 60.45 | 0.7991 | 350.0 | 286.3 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 25.67 | 74.15 | -50.44 | 61.11 | 0.7958 | 477.0 | 476.0 | |
| 0.00 | 1.09 | 0.00 | 0.87 | 24.58 | 74.66 | -49.93 | 62.30 | 0.7882 | 635.0 | 512.3 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 24.88 | 74.28 | -50.30 | 62.03 | 0.7925 | 466.0 | 423.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
