SDO HMI 2011-07-20 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.58 | 443.02 | 56.54 | 253.99 | -22.71 | 135.99 | 12.39 | 203.16 | 0.5044 | -80.8 | -203.7 | |
|
previous
or next observation for the same group /

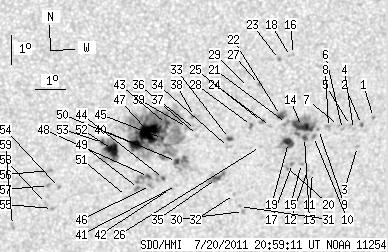

back to the solar disc SDO HMI 2011-07-20 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.02 | 142.43 | 18.83 | 213.76 | 0.5404 | 816.0 | 681.7 | |
| 1.45 | 1.45 | 0.85 | 0.85 | -22.25 | 142.05 | 18.44 | 212.98 | 0.5400 | 754.2 | 0.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -23.00 | 142.01 | 18.41 | 212.13 | 0.5487 | 631.0 | 526.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -22.42 | 141.79 | 18.19 | 212.45 | 0.5399 | 773.0 | 650.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -22.27 | 141.67 | 18.06 | 212.42 | 0.5372 | 818.0 | 696.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -22.40 | 141.41 | 17.80 | 211.92 | 0.5368 | 737.0 | 640.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.26 | 141.25 | 17.65 | 211.84 | 0.5338 | 782.0 | 695.7 | |
| 0.00 | 2.90 | 0.00 | 1.70 | -22.32 | 140.91 | 17.31 | 211.29 | 0.5320 | 893.0 | 695.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.38 | 140.58 | 16.97 | 210.74 | 0.5301 | 770.0 | 661.6 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -22.62 | 140.43 | 16.83 | 210.29 | 0.5320 | 873.0 | 681.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.86 | 140.56 | 16.96 | 209.23 | 0.5484 | 666.0 | 521.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -23.79 | 140.38 | 16.77 | 209.04 | 0.5462 | 681.0 | 611.4 | |
| 2.54 | 38.18 | 1.48 | 22.19 | -22.64 | 140.13 | 16.52 | 209.81 | 0.5300 | 755.3 | 670.0 | |
| 13.78 | -13.00 | 8.01 | -13.00 | -22.26 | 139.98 | 16.37 | 209.98 | 0.5241 | 1073.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -23.54 | 140.14 | 16.53 | 208.93 | 0.5413 | 634.0 | 609.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -19.81 | 139.43 | 15.83 | 211.79 | 0.4890 | 691.0 | 542.5 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -23.53 | 139.82 | 16.22 | 208.49 | 0.5390 | 854.0 | 754.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -19.88 | 139.34 | 15.73 | 211.57 | 0.4890 | 584.0 | 603.3 | |
| 6.80 | 15.33 | 3.96 | 8.93 | -22.80 | 139.60 | 15.99 | 208.86 | 0.5282 | 905.0 | 546.3 | |
| 0.00 | 2.36 | 0.00 | 1.39 | -23.67 | 139.63 | 16.03 | 208.08 | 0.5394 | 681.0 | 574.7 | |
| 0.00 | 3.45 | 0.00 | 1.99 | -22.15 | 139.45 | 15.85 | 209.30 | 0.5188 | 915.0 | 776.6 | |
| 4.26 | 6.80 | 2.46 | 3.92 | -21.87 | 139.21 | 15.61 | 209.22 | 0.5135 | 998.2 | 854.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -19.97 | 138.98 | 15.37 | 210.88 | 0.4874 | 756.0 | 663.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.24 | 138.91 | 15.31 | 208.39 | 0.5161 | 774.0 | 601.5 | |
| 0.00 | 2.45 | 0.00 | 1.41 | -22.06 | 138.59 | 14.98 | 208.06 | 0.5115 | 900.0 | 766.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.92 | 138.65 | 15.04 | 207.32 | 0.5230 | 832.0 | 670.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -20.80 | 138.39 | 14.78 | 209.02 | 0.4936 | 950.0 | 783.7 | |
| 1.54 | 2.36 | 0.89 | 1.36 | -22.19 | 138.26 | 14.66 | 207.41 | 0.5109 | 849.6 | 787.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -20.89 | 138.03 | 14.42 | 208.34 | 0.4922 | 578.0 | 493.0 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -25.17 | 138.33 | 14.73 | 204.82 | 0.5502 | 706.0 | 555.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -24.99 | 138.17 | 14.56 | 204.73 | 0.5469 | 680.0 | 496.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.57 | 137.94 | 14.34 | 204.76 | 0.5400 | 568.0 | 439.4 | |
| 2.27 | 2.99 | 1.31 | 1.72 | -22.62 | 137.56 | 13.95 | 205.89 | 0.5118 | 840.4 | 736.9 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -22.93 | 137.56 | 13.95 | 205.60 | 0.5159 | 549.0 | 477.5 | |
| 3.08 | 10.70 | 1.80 | 6.23 | -23.99 | 137.26 | 13.66 | 204.20 | 0.5282 | 742.6 | 634.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.49 | 136.46 | 12.86 | 204.22 | 0.5031 | 136.0 | 169.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.29 | 136.37 | 12.77 | 204.26 | 0.4998 | -264.0 | -237.6 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -21.84 | 136.30 | 12.69 | 204.53 | 0.4932 | -577.0 | -449.9 | |
| 0.00 | 3.72 | 0.00 | 2.12 | -22.21 | 136.10 | 12.49 | 203.86 | 0.4970 | -746.0 | -579.1 | |
| 2.00 | 20.50 | 1.15 | 11.82 | -23.38 | 135.83 | 12.23 | 202.44 | 0.5114 | -791.8 | -313.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -24.21 | 135.91 | 12.31 | 201.90 | 0.5233 | 1.0 | 46.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.31 | 135.72 | 12.11 | 201.51 | 0.5236 | 303.0 | 237.2 | |
| 3.45 | 220.09 | 1.96 | 125.17 | -22.10 | 135.38 | 11.78 | 202.74 | 0.4911 | -932.8 | -469.5 | |
| 1.36 | 6.89 | 0.79 | 3.98 | -23.96 | 135.44 | 11.84 | 201.34 | 0.5173 | -655.5 | -639.4 | |
| 1.45 | -43.00 | 0.83 | -43.00 | -22.57 | 135.29 | 11.68 | 202.18 | 0.4972 | -659.8 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.63 | -24.19 | 135.02 | 11.42 | 200.48 | 0.5183 | -604.0 | -473.8 | |
| 28.57 | -43.00 | 16.23 | -43.00 | -22.36 | 134.83 | 11.23 | 201.57 | 0.4917 | -1283.6 | 999999 | |
| 2.09 | 9.43 | 1.20 | 5.44 | -23.88 | 134.93 | 11.32 | 200.55 | 0.5134 | -901.9 | -820.9 | |
| 0.00 | 3.81 | 0.00 | 2.20 | -24.29 | 134.62 | 11.02 | 199.75 | 0.5176 | -736.0 | -590.0 | |
| 8.80 | -43.00 | 5.01 | -43.00 | -22.76 | 134.39 | 10.79 | 200.49 | 0.4950 | -1002.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -24.56 | 134.24 | 10.63 | 198.93 | 0.5195 | -410.0 | -336.0 | |
| 12.33 | 35.19 | 7.02 | 20.02 | -22.92 | 133.63 | 10.03 | 199.05 | 0.4933 | -1129.7 | -604.0 | |
| 2.81 | -52.00 | 1.59 | -52.00 | -22.68 | 133.28 | 9.67 | 198.60 | 0.4881 | -991.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -24.22 | 131.94 | 8.34 | 195.26 | 0.5044 | -818.0 | -725.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -24.95 | 131.75 | 8.15 | 194.53 | 0.5142 | -709.0 | -523.6 | |
| 0.00 | 2.90 | 0.00 | 1.65 | -23.62 | 131.56 | 7.96 | 194.94 | 0.4942 | -855.0 | -679.4 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -24.14 | 131.56 | 7.96 | 194.64 | 0.5018 | -783.0 | -656.7 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -24.77 | 131.54 | 7.93 | 194.25 | 0.5109 | -630.0 | -550.0 | |
| 0.00 | 2.45 | 0.00 | 1.42 | -25.53 | 130.43 | 6.82 | 191.99 | 0.5182 | -696.0 | -588.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
