SDO HMI 2011-07-20 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.80 | 457.79 | 48.13 | 263.03 | -22.73 | 135.98 | 12.93 | 204.03 | 0.5081 | -125.4 | -205.4 | |
|
previous
or next observation for the same group /

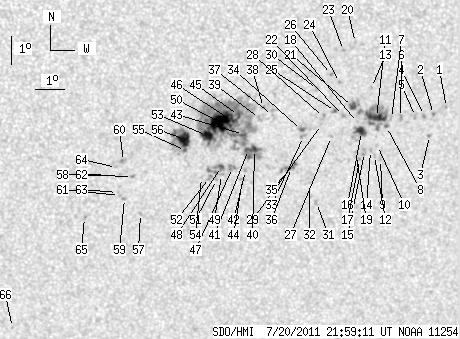

back to the solar disc SDO HMI 2011-07-20 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.37 | -22.03 | 142.47 | 19.42 | 214.56 | 0.5455 | 858.0 | 719.9 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -22.26 | 142.05 | 19.00 | 213.73 | 0.5447 | 862.0 | 704.5 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -22.98 | 142.01 | 18.96 | 212.90 | 0.5528 | 616.0 | 514.4 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -22.29 | 141.74 | 18.69 | 213.28 | 0.5424 | 879.0 | 760.3 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -22.31 | 141.43 | 18.38 | 212.82 | 0.5403 | 755.0 | 666.3 | |
| 0.00 | 2.72 | 0.00 | 1.59 | -22.33 | 140.91 | 17.86 | 212.07 | 0.5364 | 771.0 | 689.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -22.36 | 140.60 | 17.55 | 211.60 | 0.5343 | 672.0 | 546.6 | |
| 1.18 | 44.44 | 0.69 | 25.91 | -22.63 | 140.47 | 17.42 | 211.12 | 0.5366 | 624.9 | 699.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -23.76 | 140.41 | 17.36 | 209.89 | 0.5502 | 655.0 | 600.7 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -23.28 | 140.24 | 17.19 | 210.14 | 0.5429 | 519.0 | 464.2 | |
| 11.52 | -8.00 | 6.72 | -8.00 | -22.31 | 140.08 | 17.03 | 210.90 | 0.5297 | 1070.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -23.62 | 140.18 | 17.13 | 209.71 | 0.5467 | 793.0 | 591.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.28 | 139.78 | 16.73 | 211.56 | 0.5147 | 741.0 | 523.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -23.44 | 140.02 | 16.97 | 209.65 | 0.5433 | 801.0 | 706.2 | |
| 0.00 | 2.81 | 0.00 | 1.66 | -23.51 | 139.82 | 16.77 | 209.30 | 0.5427 | 781.0 | 709.6 | |
| 6.53 | 13.97 | 3.81 | 8.16 | -22.78 | 139.62 | 16.57 | 209.74 | 0.5321 | 941.8 | 552.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -23.75 | 139.68 | 16.63 | 208.87 | 0.5447 | 696.0 | 621.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.46 | 139.45 | 16.40 | 209.80 | 0.5269 | 825.0 | 691.5 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -23.43 | 139.50 | 16.45 | 208.91 | 0.5394 | 202.0 | 402.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -19.75 | 139.07 | 16.02 | 212.18 | 0.4898 | 670.0 | 540.9 | |
| 4.44 | 8.43 | 2.57 | 4.88 | -21.91 | 139.21 | 16.16 | 210.02 | 0.5182 | 988.2 | 762.2 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -22.21 | 138.94 | 15.89 | 209.29 | 0.5200 | 719.0 | 536.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.00 | 138.69 | 15.64 | 211.28 | 0.4900 | 776.0 | 668.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.08 | 138.67 | 15.62 | 210.06 | 0.5036 | 909.0 | 785.6 | |
| 1.27 | 2.18 | 0.73 | 1.26 | -22.07 | 138.65 | 15.60 | 208.99 | 0.5160 | 825.1 | 626.3 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.80 | 138.37 | 15.32 | 209.88 | 0.4978 | 904.0 | 709.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.92 | 138.61 | 15.56 | 208.09 | 0.5267 | 725.0 | 591.4 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -22.26 | 138.26 | 15.21 | 208.20 | 0.5158 | 870.0 | 784.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -22.50 | 138.22 | 15.17 | 207.90 | 0.5186 | 806.0 | 722.0 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -21.30 | 137.95 | 14.90 | 208.68 | 0.5011 | 740.0 | 564.4 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -25.21 | 138.37 | 15.32 | 205.64 | 0.5546 | 613.0 | 521.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -24.58 | 138.05 | 15.00 | 205.73 | 0.5443 | 474.0 | 528.7 | |
| 0.00 | 2.27 | 0.00 | 1.31 | -22.90 | 137.65 | 14.60 | 206.63 | 0.5199 | 605.0 | 600.1 | |
| 1.54 | 3.45 | 0.89 | 1.99 | -22.69 | 137.56 | 14.51 | 206.69 | 0.5165 | 815.4 | 757.4 | |
| 0.36 | 6.62 | 0.21 | 3.87 | -23.83 | 137.44 | 14.39 | 205.47 | 0.5307 | 1009.5 | 772.7 | |
| 1.00 | -35.00 | 0.58 | -35.00 | -23.97 | 137.35 | 14.30 | 205.22 | 0.5320 | 908.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.16 | 136.51 | 13.46 | 205.52 | 0.5025 | -428.0 | -281.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.88 | 136.18 | 13.13 | 205.23 | 0.4966 | -838.0 | -641.9 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -22.25 | 136.08 | 13.03 | 204.73 | 0.5010 | -755.0 | -579.6 | |
| 2.63 | 252.57 | 1.52 | 144.10 | -23.31 | 136.02 | 12.97 | 203.69 | 0.5150 | -709.8 | -476.6 | |
| 0.63 | -40.00 | 0.37 | -40.00 | -23.31 | 135.81 | 12.76 | 203.36 | 0.5138 | -908.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -24.04 | 135.78 | 12.73 | 202.71 | 0.5234 | -530.0 | -305.7 | |
| 2.36 | -40.00 | 1.35 | -40.00 | -22.79 | 135.59 | 12.54 | 203.44 | 0.5053 | -422.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -24.35 | 135.71 | 12.66 | 202.35 | 0.5273 | 468.0 | 274.2 | |
| 1.90 | -40.00 | 1.08 | -40.00 | -22.13 | 135.37 | 12.32 | 203.62 | 0.4950 | -923.9 | 999999 | |
| 0.82 | -40.00 | 0.47 | -40.00 | -22.34 | 135.18 | 12.13 | 203.14 | 0.4966 | -850.6 | 999999 | |
| 0.00 | 5.35 | 0.00 | 3.10 | -23.93 | 135.33 | 12.28 | 202.07 | 0.5193 | -709.0 | -689.7 | |
| 1.90 | 10.07 | 1.10 | 5.82 | -23.88 | 134.95 | 11.90 | 201.49 | 0.5166 | -899.1 | -819.4 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -24.16 | 134.98 | 11.93 | 201.32 | 0.5206 | -593.0 | -479.5 | |
| 23.31 | -40.00 | 13.27 | -40.00 | -22.36 | 134.75 | 11.70 | 202.37 | 0.4945 | -1307.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -24.33 | 134.82 | 11.77 | 200.94 | 0.5221 | -496.0 | -392.3 | |
| 0.00 | 2.81 | 0.00 | 1.63 | -24.26 | 134.58 | 11.53 | 200.60 | 0.5198 | -713.0 | -582.8 | |
| 8.62 | -40.00 | 4.92 | -40.00 | -22.80 | 134.35 | 11.30 | 201.33 | 0.4983 | -985.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.25 | 134.30 | 11.25 | 200.16 | 0.5183 | -625.0 | -426.1 | |
| 1.18 | 38.27 | 0.67 | 21.81 | -23.31 | 133.68 | 10.63 | 199.81 | 0.5019 | -663.9 | -586.0 | |
| 12.61 | -55.00 | 7.18 | -55.00 | -22.93 | 133.61 | 10.56 | 199.98 | 0.4962 | -1136.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -25.49 | 132.32 | 9.27 | 196.11 | 0.5265 | -672.0 | -482.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -24.18 | 131.96 | 8.91 | 196.26 | 0.5063 | -869.0 | -754.1 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -24.95 | 131.74 | 8.69 | 195.44 | 0.5164 | -613.0 | -521.3 | |
| 0.00 | 2.99 | 0.00 | 1.71 | -23.66 | 131.62 | 8.57 | 195.99 | 0.4973 | -905.0 | -755.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.84 | 131.56 | 8.51 | 195.20 | 0.5142 | -615.0 | -544.3 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -24.14 | 131.51 | 8.46 | 195.52 | 0.5039 | -809.0 | -652.0 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -24.74 | 131.49 | 8.44 | 195.13 | 0.5124 | -756.0 | -630.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.86 | 131.39 | 8.34 | 195.48 | 0.4994 | -746.0 | -556.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -25.60 | 130.42 | 7.37 | 192.88 | 0.5211 | -756.0 | -659.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -29.56 | 128.16 | 5.11 | 187.81 | 0.5720 | -592.0 | -489.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
