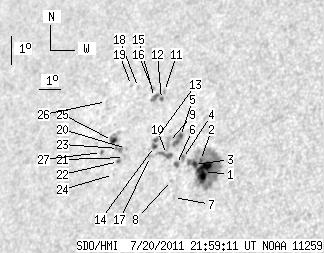

SDO HMI 2011-07-20 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.08 | 160.16 | 31.68 | 116.99 | 24.66 | 78.26 | -44.79 | 60.55 | 0.7372 | -170.7 | -236.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.41 | 89.15 | 11.70 | 63.54 | 24.22 | 79.66 | -43.39 | 60.60 | 0.7213 | -964.0 | -490.9 | |
| 1.00 | -1.00 | 0.72 | -1.00 | 24.57 | 79.38 | -43.68 | 60.26 | 0.7256 | -605.4 | 999999 | |
| 2.18 | -1.00 | 1.57 | -1.00 | 24.42 | 79.16 | -43.89 | 60.53 | 0.7274 | -717.7 | 999999 | |
| 0.00 | 3.17 | 0.00 | 2.31 | 24.58 | 78.52 | -44.53 | 60.56 | 0.7345 | -720.0 | -504.9 | |
| 1.90 | 7.53 | 1.40 | 5.54 | 25.28 | 78.11 | -44.94 | 59.81 | 0.7413 | -642.0 | -591.1 | |
| 1.09 | 2.99 | 0.79 | 2.18 | 24.38 | 78.33 | -44.72 | 60.90 | 0.7357 | -656.4 | -492.3 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 23.32 | 78.66 | -44.39 | 62.17 | 0.7288 | -588.0 | -416.2 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 23.85 | 78.33 | -44.72 | 61.58 | 0.7340 | -468.0 | -364.7 | |
| 0.00 | 5.89 | 0.00 | 4.36 | 25.06 | 77.64 | -45.41 | 60.27 | 0.7452 | 297.0 | 115.5 | |
| 5.71 | 7.07 | 4.21 | 5.22 | 24.67 | 77.72 | -45.33 | 60.74 | 0.7430 | -521.3 | -417.9 | |
| 0.00 | 1.54 | 0.00 | 1.17 | 26.69 | 76.62 | -46.43 | 58.57 | 0.7609 | 690.0 | 634.1 | |
| 0.82 | 6.62 | 0.62 | 5.05 | 26.42 | 76.61 | -46.44 | 58.91 | 0.7601 | 613.4 | 647.6 | |
| 1.54 | 6.17 | 1.15 | 4.61 | 25.12 | 76.98 | -46.07 | 60.43 | 0.7521 | -382.1 | -222.8 | |
| 2.09 | -13.00 | 1.56 | -13.00 | 24.89 | 77.04 | -46.01 | 60.69 | 0.7507 | -295.4 | 999999 | |
| 4.17 | -12.00 | 3.19 | -12.00 | 26.46 | 76.24 | -46.81 | 58.98 | 0.7638 | 710.4 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.67 | 26.75 | 75.99 | -47.06 | 58.72 | 0.7672 | 593.0 | 475.1 | |
| 0.00 | 2.63 | 0.00 | 1.96 | 24.56 | 77.01 | -46.05 | 61.13 | 0.7499 | -263.0 | -183.8 | |
| 0.00 | 1.63 | 0.00 | 1.27 | 26.74 | 75.28 | -47.77 | 58.97 | 0.7739 | 533.0 | 450.1 | |
| 0.00 | 0.82 | 0.00 | 0.64 | 26.78 | 74.90 | -48.15 | 59.04 | 0.7776 | 505.0 | 345.8 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 24.75 | 75.74 | -47.31 | 61.31 | 0.7632 | 774.0 | 684.3 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 24.46 | 75.78 | -47.27 | 61.67 | 0.7619 | 691.0 | 606.9 | |
| 0.91 | 1.36 | 0.69 | 1.04 | 24.31 | 75.56 | -47.49 | 61.92 | 0.7637 | 695.6 | 748.2 | |
| 0.00 | 4.53 | 0.00 | 3.49 | 24.73 | 75.35 | -47.70 | 61.47 | 0.7670 | 756.0 | 667.6 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 23.89 | 75.52 | -47.53 | 62.48 | 0.7628 | 612.0 | 537.4 | |
| 3.72 | 8.89 | 2.88 | 6.89 | 24.96 | 74.92 | -48.13 | 61.30 | 0.7718 | 706.3 | 601.6 | |
| 0.00 | 0.82 | 0.00 | 0.65 | 26.19 | 73.94 | -49.11 | 60.08 | 0.7848 | 384.0 | 345.2 | |
| 1.54 | 1.72 | 1.20 | 1.34 | 24.55 | 74.58 | -48.47 | 61.93 | 0.7740 | 499.8 | 448.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
