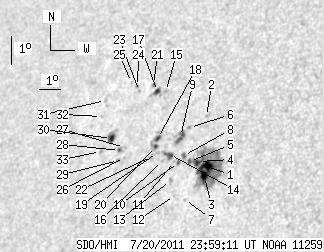

SDO HMI 2011-07-20 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.89 | 160.19 | 33.81 | 114.97 | 24.69 | 78.22 | -43.72 | 60.11 | 0.7262 | -233.2 | -238.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-20 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.62 | 89.25 | 6.04 | 62.54 | 24.33 | 79.65 | -42.29 | 60.03 | 0.7101 | -1054.1 | -505.5 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 25.93 | 78.96 | -42.99 | 58.20 | 0.7238 | -622.0 | -550.0 | |
| 5.17 | -1.00 | 3.62 | -1.00 | 24.00 | 79.70 | -42.25 | 60.45 | 0.7083 | -1030.8 | 999999 | |
| 5.35 | -1.00 | 3.78 | -1.00 | 24.47 | 79.23 | -42.71 | 60.02 | 0.7151 | -685.1 | 999999 | |
| 1.36 | -1.00 | 0.97 | -1.00 | 24.45 | 78.83 | -43.12 | 60.21 | 0.7193 | -553.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 25.54 | 78.35 | -43.60 | 58.97 | 0.7284 | -659.0 | -478.7 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 23.22 | 79.10 | -42.84 | 61.73 | 0.7118 | 426.0 | 319.9 | |
| 2.36 | 2.63 | 1.69 | 1.88 | 24.62 | 78.47 | -43.47 | 60.12 | 0.7236 | -501.3 | -646.0 | |
| 5.62 | 9.25 | 4.06 | 6.69 | 25.22 | 78.07 | -43.88 | 59.49 | 0.7301 | -677.4 | -418.7 | |
| 1.27 | 2.18 | 0.91 | 1.56 | 24.39 | 78.34 | -43.60 | 60.48 | 0.7241 | -566.6 | -501.6 | |
| 0.00 | 0.54 | 0.00 | 0.39 | 24.41 | 78.15 | -43.80 | 60.52 | 0.7262 | -513.0 | -446.5 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 23.33 | 78.61 | -43.34 | 61.79 | 0.7175 | -414.0 | -451.0 | |
| 0.00 | 2.18 | 0.00 | 1.56 | 23.79 | 78.23 | -43.72 | 61.31 | 0.7232 | -445.0 | -295.8 | |
| 4.35 | 6.53 | 3.15 | 4.72 | 24.62 | 77.82 | -44.12 | 60.37 | 0.7304 | -578.1 | -446.5 | |
| 0.00 | 1.63 | 0.00 | 1.22 | 26.63 | 76.67 | -45.27 | 58.22 | 0.7494 | 741.0 | 619.9 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 24.41 | 77.59 | -44.36 | 60.73 | 0.7321 | -327.0 | -198.2 | |
| 1.90 | 6.53 | 1.43 | 4.90 | 26.61 | 76.29 | -45.65 | 58.39 | 0.7530 | 757.6 | 606.4 | |
| 2.27 | 6.89 | 1.66 | 5.06 | 25.10 | 77.04 | -44.91 | 60.04 | 0.7402 | -476.6 | -105.2 | |
| 0.00 | 2.00 | 0.00 | 1.46 | 24.65 | 77.24 | -44.70 | 60.55 | 0.7365 | -409.0 | -278.7 | |
| 1.36 | -18.00 | 1.00 | -18.00 | 24.84 | 77.06 | -44.88 | 60.37 | 0.7390 | -379.4 | 999999 | |
| 1.09 | 1.63 | 0.82 | 1.23 | 26.83 | 75.98 | -45.96 | 58.23 | 0.7568 | 427.1 | 523.8 | |
| 0.00 | 2.36 | 0.00 | 1.73 | 24.51 | 77.02 | -44.92 | 60.81 | 0.7382 | -267.0 | -97.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 26.56 | 75.43 | -46.51 | 58.77 | 0.7612 | 672.0 | 599.5 | |
| 0.00 | 1.45 | 0.00 | 1.11 | 26.72 | 75.25 | -46.70 | 58.64 | 0.7635 | 598.0 | 576.9 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 26.83 | 74.89 | -47.06 | 58.63 | 0.7674 | 370.0 | 291.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 24.40 | 75.78 | -46.17 | 61.38 | 0.7506 | 687.0 | 571.7 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 24.72 | 75.62 | -46.32 | 61.03 | 0.7532 | 778.0 | 593.9 | |
| 1.36 | 2.54 | 1.02 | 1.91 | 24.61 | 75.43 | -46.51 | 61.23 | 0.7547 | 689.8 | 625.9 | |
| 0.00 | 1.45 | 0.00 | 1.09 | 24.29 | 75.54 | -46.41 | 61.61 | 0.7526 | 738.0 | 680.8 | |
| 4.81 | 8.89 | 3.66 | 6.77 | 24.97 | 74.86 | -47.08 | 60.96 | 0.7616 | 717.3 | 509.1 | |
| 0.00 | 1.18 | 0.00 | 0.92 | 26.17 | 73.93 | -48.02 | 59.77 | 0.7744 | 518.0 | 385.7 | |
| 0.00 | 0.73 | 0.00 | 0.56 | 25.65 | 74.01 | -47.93 | 60.39 | 0.7720 | 606.0 | 421.2 | |
| 0.00 | 1.72 | 0.00 | 1.32 | 24.53 | 74.54 | -47.41 | 61.63 | 0.7634 | 774.0 | 574.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
