SDO HMI 2011-07-21 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.74 | 159.20 | 29.85 | 112.97 | 24.63 | 78.36 | -43.03 | 59.93 | 0.7188 | -196.8 | -290.9 | |
|
previous
or next observation for the same group /

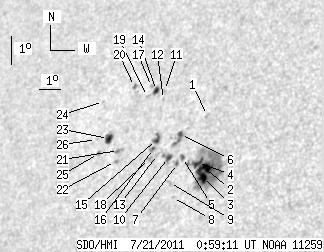

back to the solar disc SDO HMI 2011-07-21 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.42 | 26.01 | 79.02 | -42.38 | 57.85 | 0.7178 | -542.0 | -454.8 | |
| 8.35 | 94.34 | 5.81 | 65.53 | 24.30 | 79.61 | -41.78 | 59.87 | 0.7045 | -1030.7 | -487.5 | |
| 6.08 | -2.00 | 4.22 | -2.00 | 24.01 | 79.64 | -41.76 | 60.25 | 0.7030 | -993.3 | 999999 | |
| 4.72 | -2.00 | 3.30 | -2.00 | 24.47 | 79.22 | -42.17 | 59.79 | 0.7093 | -668.6 | 999999 | |
| 2.27 | 2.81 | 1.61 | 1.99 | 24.60 | 78.49 | -42.91 | 59.93 | 0.7176 | -517.4 | -516.5 | |
| 2.36 | 7.26 | 1.69 | 5.20 | 25.33 | 78.07 | -43.32 | 59.13 | 0.7247 | -657.4 | -632.0 | |
| 1.18 | 2.90 | 0.84 | 2.06 | 24.39 | 78.34 | -43.05 | 60.26 | 0.7183 | -561.4 | -545.8 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 23.30 | 78.57 | -42.83 | 61.63 | 0.7118 | -586.0 | -474.8 | |
| 0.00 | 2.36 | 0.00 | 1.67 | 23.77 | 78.24 | -43.15 | 61.13 | 0.7171 | -483.0 | -309.2 | |
| 2.90 | 6.62 | 2.08 | 4.74 | 24.56 | 77.85 | -43.54 | 60.23 | 0.7241 | -659.1 | -432.4 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 26.71 | 76.66 | -44.73 | 57.92 | 0.7443 | 764.0 | 576.7 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 26.41 | 76.76 | -44.63 | 58.26 | 0.7422 | 538.0 | 487.7 | |
| 0.00 | 2.45 | 0.00 | 1.77 | 24.63 | 77.31 | -44.08 | 60.35 | 0.7300 | -441.0 | -300.8 | |
| 2.45 | 4.08 | 1.82 | 3.04 | 26.68 | 76.29 | -45.11 | 58.09 | 0.7479 | 769.7 | 640.6 | |
| 3.99 | 4.99 | 2.90 | 3.63 | 25.11 | 77.05 | -44.35 | 59.83 | 0.7344 | -425.6 | -183.8 | |
| 1.18 | 3.99 | 0.86 | 2.90 | 24.81 | 77.04 | -44.35 | 60.21 | 0.7334 | -478.3 | -96.1 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 26.80 | 75.98 | -45.41 | 58.06 | 0.7513 | 612.0 | 481.9 | |
| 0.00 | 2.36 | 0.00 | 1.71 | 24.48 | 77.00 | -44.39 | 60.66 | 0.7326 | -166.0 | -50.5 | |
| 0.00 | 1.54 | 0.00 | 1.15 | 26.47 | 75.96 | -45.43 | 58.49 | 0.7503 | 599.0 | 546.4 | |
| 0.36 | 2.45 | 0.27 | 1.86 | 26.75 | 75.17 | -46.22 | 58.42 | 0.7590 | 695.5 | 534.3 | |
| 0.00 | 3.36 | 0.00 | 2.50 | 24.65 | 75.44 | -45.95 | 60.99 | 0.7492 | 800.0 | 690.0 | |
| 0.00 | 1.36 | 0.00 | 1.01 | 24.30 | 75.47 | -45.92 | 61.45 | 0.7477 | 778.0 | 693.3 | |
| 5.90 | 6.98 | 4.45 | 5.27 | 25.01 | 74.78 | -46.61 | 60.77 | 0.7569 | 717.5 | 536.8 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 26.18 | 73.93 | -47.46 | 59.58 | 0.7691 | 367.0 | 312.8 | |
| 0.00 | 1.90 | 0.00 | 1.44 | 24.50 | 74.54 | -46.85 | 61.49 | 0.7578 | 683.0 | 555.9 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 24.94 | 74.22 | -47.17 | 61.04 | 0.7623 | 592.0 | 547.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
