SDO HMI 2011-07-21 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.20 | 175.04 | 28.03 | 121.67 | 24.72 | 78.14 | -41.61 | 59.22 | 0.7039 | -206.3 | -236.4 | |
|
previous
or next observation for the same group /

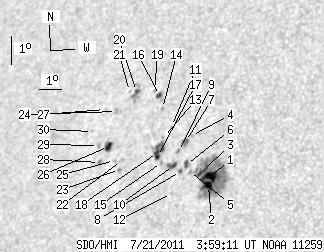

back to the solar disc SDO HMI 2011-07-21 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.80 | 99.72 | 5.98 | 67.68 | 24.27 | 79.60 | -40.15 | 59.20 | 0.6866 | -1076.8 | -466.2 | |
| 4.90 | -1.00 | 3.32 | -1.00 | 23.99 | 79.66 | -40.08 | 59.56 | 0.6846 | -1049.9 | 999999 | |
| 5.08 | -1.00 | 3.47 | -1.00 | 24.45 | 79.22 | -40.53 | 59.13 | 0.6915 | -619.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 25.55 | 78.28 | -41.47 | 58.07 | 0.7062 | -601.0 | -479.3 | |
| 0.00 | 1.81 | 0.00 | 1.25 | 24.39 | 78.67 | -41.08 | 59.46 | 0.6972 | -616.0 | -506.3 | |
| 2.81 | 3.54 | 1.95 | 2.45 | 24.61 | 78.45 | -41.30 | 59.26 | 0.7005 | -511.2 | -229.6 | |
| 3.63 | 4.81 | 2.54 | 3.36 | 25.34 | 78.10 | -41.65 | 58.43 | 0.7073 | -630.2 | -688.1 | |
| 1.18 | 2.00 | 0.82 | 1.38 | 24.37 | 78.27 | -41.47 | 59.66 | 0.7013 | -612.8 | -533.0 | |
| 0.00 | 2.18 | 0.00 | 1.52 | 25.00 | 77.92 | -41.82 | 58.95 | 0.7077 | -544.0 | -492.7 | |
| 2.45 | 5.08 | 1.71 | 3.55 | 24.54 | 77.89 | -41.86 | 59.58 | 0.7062 | -679.0 | -562.8 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 25.79 | 77.26 | -42.48 | 58.19 | 0.7178 | -389.0 | -277.4 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 23.64 | 78.16 | -41.59 | 60.68 | 0.6996 | -354.0 | -325.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 25.42 | 77.06 | -42.69 | 58.77 | 0.7184 | -158.0 | -147.4 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 26.35 | 76.59 | -43.15 | 57.75 | 0.7270 | 759.0 | 647.5 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 24.61 | 77.32 | -42.43 | 59.73 | 0.7125 | -529.0 | -458.7 | |
| 2.18 | 4.26 | 1.58 | 3.09 | 26.76 | 76.25 | -43.49 | 57.36 | 0.7321 | 758.3 | 645.6 | |
| 2.18 | 13.79 | 1.54 | 9.78 | 24.79 | 77.06 | -42.69 | 59.60 | 0.7160 | -507.7 | -278.4 | |
| 0.73 | -17.00 | 0.51 | -17.00 | 24.92 | 77.00 | -42.75 | 59.45 | 0.7170 | -570.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 26.91 | 75.95 | -43.80 | 57.29 | 0.7358 | 543.0 | 439.1 | |
| 1.81 | 9.71 | 1.34 | 7.16 | 26.83 | 75.12 | -44.62 | 57.73 | 0.7436 | 618.2 | 505.2 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 26.81 | 74.80 | -44.95 | 57.88 | 0.7467 | 432.0 | 343.4 | |
| 0.00 | 2.36 | 0.00 | 1.71 | 24.57 | 75.48 | -44.26 | 60.51 | 0.7315 | 680.0 | 549.7 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 24.28 | 75.52 | -44.23 | 60.87 | 0.7301 | 781.0 | 672.7 | |
| 0.00 | 2.27 | 0.00 | 1.68 | 26.13 | 74.51 | -45.24 | 58.86 | 0.7471 | 640.0 | 536.9 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 24.56 | 75.16 | -44.59 | 60.65 | 0.7348 | 665.0 | 561.5 | |
| 4.45 | 6.08 | 3.27 | 4.47 | 24.99 | 74.68 | -45.07 | 60.27 | 0.7413 | 810.9 | 549.8 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 26.16 | 73.91 | -45.84 | 59.04 | 0.7531 | 422.0 | 447.8 | |
| 0.00 | 1.54 | 0.00 | 1.13 | 24.45 | 74.50 | -45.25 | 61.02 | 0.7413 | 560.0 | 473.6 | |
| 0.00 | 2.36 | 0.00 | 1.75 | 24.99 | 74.19 | -45.55 | 60.43 | 0.7462 | 576.0 | 430.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 25.42 | 73.69 | -46.05 | 60.06 | 0.7527 | 369.0 | 418.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
