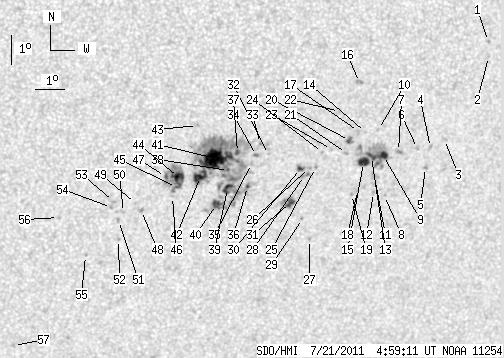

SDO HMI 2011-07-21 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.20 | 441.67 | 59.13 | 258.40 | -22.70 | 135.76 | 16.56 | 209.65 | 0.5328 | -205.4 | -169.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-21 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.59 | -18.67 | 143.59 | 24.39 | 224.92 | 0.5561 | 795.0 | 688.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -19.17 | 143.66 | 24.47 | 224.35 | 0.5618 | 679.0 | 539.0 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -21.92 | 142.56 | 23.36 | 219.61 | 0.5790 | 102.0 | 240.1 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -22.18 | 142.10 | 22.90 | 218.77 | 0.5776 | 744.0 | 553.4 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -22.86 | 142.04 | 22.84 | 217.91 | 0.5843 | 673.0 | 512.4 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -22.20 | 141.64 | 22.44 | 218.20 | 0.5737 | 891.0 | 697.2 | |
| 0.00 | 3.18 | 0.00 | 1.91 | -22.28 | 140.98 | 21.78 | 217.29 | 0.5688 | 824.0 | 701.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -23.79 | 140.73 | 21.54 | 215.31 | 0.5833 | 532.0 | 431.0 | |
| 4.63 | 50.82 | 2.78 | 30.39 | -22.40 | 140.46 | 21.27 | 216.52 | 0.5657 | 920.5 | 685.5 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -21.50 | 140.15 | 20.95 | 217.15 | 0.5530 | 513.0 | 440.2 | |
| 0.00 | 5.44 | 0.00 | 3.28 | -23.11 | 140.26 | 21.06 | 215.46 | 0.5719 | 607.0 | 539.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -23.67 | 140.32 | 21.12 | 214.93 | 0.5786 | 642.0 | 521.4 | |
| 3.45 | -9.00 | 2.06 | -9.00 | -22.42 | 140.04 | 20.85 | 215.96 | 0.5623 | 1040.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -21.59 | 139.71 | 20.51 | 216.47 | 0.5501 | 756.0 | 618.4 | |
| 8.26 | -9.00 | 4.94 | -9.00 | -22.62 | 139.79 | 20.59 | 215.42 | 0.5624 | 919.3 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.01 | -19.89 | 139.26 | 20.06 | 217.92 | 0.5269 | 772.0 | 723.4 | |
| 0.00 | 2.27 | 0.00 | 1.34 | -21.55 | 139.45 | 20.26 | 216.19 | 0.5474 | 761.0 | 678.2 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -23.58 | 139.73 | 20.54 | 214.29 | 0.5729 | 685.0 | 542.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -23.71 | 139.54 | 20.35 | 213.90 | 0.5728 | 671.0 | 539.9 | |
| 2.54 | 4.26 | 1.50 | 2.52 | -21.85 | 139.18 | 19.99 | 215.49 | 0.5485 | 916.7 | 886.3 | |
| 0.00 | 1.81 | 0.00 | 1.08 | -22.29 | 139.14 | 19.95 | 214.94 | 0.5533 | 827.0 | 648.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -20.85 | 138.69 | 19.50 | 215.99 | 0.5328 | 604.0 | 465.9 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -22.13 | 138.60 | 19.40 | 214.38 | 0.5470 | 775.0 | 371.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -22.23 | 138.30 | 19.10 | 213.87 | 0.5456 | 876.0 | 655.0 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.74 | 138.13 | 18.93 | 213.08 | 0.5502 | 900.0 | 768.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.73 | 137.91 | 18.72 | 212.80 | 0.5485 | 829.0 | 752.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -25.25 | 138.30 | 19.10 | 210.75 | 0.5812 | 652.0 | 568.4 | |
| 0.00 | 4.54 | 0.00 | 2.69 | -23.00 | 137.78 | 18.58 | 212.33 | 0.5506 | 692.0 | 672.4 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -24.50 | 137.93 | 18.73 | 211.00 | 0.5696 | 735.0 | 577.2 | |
| 2.63 | 3.81 | 1.55 | 2.25 | -22.76 | 137.60 | 18.41 | 212.35 | 0.5463 | 870.3 | 664.2 | |
| 5.26 | 9.71 | 3.14 | 5.79 | -23.93 | 137.42 | 18.22 | 210.89 | 0.5590 | 862.6 | 705.9 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.24 | 136.43 | 17.23 | 211.22 | 0.5310 | 454.0 | 361.6 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -21.86 | 136.10 | 16.91 | 211.15 | 0.5237 | -704.0 | -482.3 | |
| 0.00 | 2.27 | 0.00 | 1.32 | -22.27 | 136.02 | 16.82 | 210.59 | 0.5281 | -705.0 | -603.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.54 | 135.88 | 16.68 | 210.11 | 0.5305 | -458.0 | -372.6 | |
| 0.91 | 247.19 | 0.53 | 143.52 | -23.33 | 135.84 | 16.64 | 209.26 | 0.5401 | -610.0 | -417.4 | |
| 2.09 | -36.00 | 1.21 | -36.00 | -22.15 | 135.35 | 16.15 | 209.73 | 0.5217 | -866.9 | 999999 | |
| 1.00 | -36.00 | 0.58 | -36.00 | -22.76 | 135.11 | 15.92 | 208.75 | 0.5277 | -592.8 | 999999 | |
| 5.54 | -36.00 | 3.24 | -36.00 | -23.38 | 135.15 | 15.96 | 208.21 | 0.5359 | -772.7 | 999999 | |
| 5.35 | 16.52 | 3.15 | 9.72 | -23.93 | 134.84 | 15.64 | 207.23 | 0.5407 | -821.9 | -536.6 | |
| 39.84 | -36.00 | 23.05 | -36.00 | -22.33 | 134.62 | 15.42 | 208.42 | 0.5188 | -1122.4 | 999999 | |
| 9.26 | -36.00 | 5.37 | -36.00 | -22.94 | 134.17 | 14.98 | 207.15 | 0.5235 | -934.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.19 | 133.88 | 14.69 | 208.42 | 0.4987 | 639.0 | 420.1 | |
| 8.44 | 39.93 | 4.88 | 23.09 | -22.96 | 133.42 | 14.23 | 205.97 | 0.5187 | -1100.2 | -660.3 | |
| 0.82 | -44.00 | 0.47 | -44.00 | -23.30 | 133.39 | 14.19 | 205.61 | 0.5231 | -596.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -23.61 | 133.29 | 14.09 | 205.17 | 0.5265 | -543.0 | -442.9 | |
| 1.18 | -44.00 | 0.68 | -44.00 | -22.92 | 132.98 | 13.78 | 205.30 | 0.5153 | -847.9 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.48 | -24.08 | 132.28 | 13.08 | 203.20 | 0.5266 | -854.0 | -659.9 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -23.83 | 132.05 | 12.85 | 203.04 | 0.5219 | -766.0 | -622.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -24.14 | 131.67 | 12.47 | 202.18 | 0.5238 | -768.0 | -623.6 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -24.41 | 131.52 | 12.32 | 201.74 | 0.5268 | -748.0 | -538.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -25.08 | 131.59 | 12.39 | 201.34 | 0.5362 | -699.0 | -585.6 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -23.75 | 131.29 | 12.09 | 201.88 | 0.5164 | -798.0 | -677.8 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -23.95 | 131.24 | 12.04 | 201.64 | 0.5190 | -720.0 | -599.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -25.62 | 130.51 | 11.31 | 199.26 | 0.5381 | -593.0 | -507.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -24.27 | 129.46 | 10.26 | 198.49 | 0.5143 | -374.0 | -439.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -28.83 | 128.30 | 9.10 | 194.04 | 0.5732 | -828.0 | -609.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
