SDO HMI 2011-07-21 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.03 | 444.29 | 54.66 | 260.55 | -22.75 | 135.66 | 17.01 | 210.26 | 0.5365 | -105.6 | -216.4 | |
|
previous
or next observation for the same group /

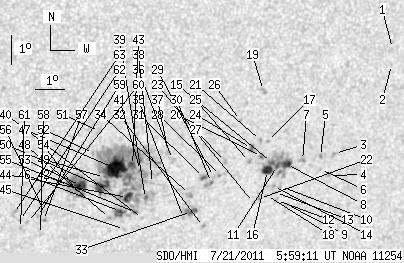

back to the solar disc SDO HMI 2011-07-21 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.43 | -18.62 | 143.63 | 24.98 | 225.65 | 0.5618 | 658.0 | 481.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -19.15 | 143.68 | 25.03 | 225.00 | 0.5674 | 666.0 | 666.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -22.10 | 142.14 | 23.49 | 219.56 | 0.5821 | 742.0 | 608.4 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -22.85 | 142.06 | 23.41 | 218.59 | 0.5892 | 583.0 | 531.8 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -22.18 | 141.66 | 23.01 | 218.89 | 0.5786 | 889.0 | 736.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -22.63 | 141.74 | 23.09 | 218.46 | 0.5840 | 674.0 | 526.6 | |
| 0.00 | 2.81 | 0.00 | 1.70 | -22.30 | 141.03 | 22.38 | 218.01 | 0.5743 | 757.0 | 656.5 | |
| 5.44 | 45.19 | 3.28 | 27.16 | -22.41 | 140.48 | 21.83 | 217.20 | 0.5708 | 918.3 | 639.7 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -23.80 | 140.72 | 22.07 | 215.94 | 0.5879 | 589.0 | 507.2 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -23.17 | 140.40 | 21.75 | 216.25 | 0.5783 | 529.0 | 463.2 | |
| 2.36 | -8.00 | 1.42 | -8.00 | -22.44 | 140.17 | 21.52 | 216.78 | 0.5683 | 1030.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -23.65 | 140.34 | 21.69 | 215.64 | 0.5831 | 613.0 | 497.3 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -23.37 | 140.25 | 21.60 | 215.85 | 0.5793 | 671.0 | 583.2 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -23.16 | 140.15 | 21.50 | 215.95 | 0.5761 | 801.0 | 639.4 | |
| 2.18 | -8.00 | 1.31 | -8.00 | -22.33 | 139.94 | 21.29 | 216.62 | 0.5651 | 1058.5 | 999999 | |
| 7.35 | -8.00 | 4.41 | -8.00 | -22.60 | 139.84 | 21.19 | 216.19 | 0.5673 | 953.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -21.60 | 139.68 | 21.03 | 217.14 | 0.5549 | 693.0 | 622.2 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -23.46 | 139.95 | 21.30 | 215.37 | 0.5778 | 680.0 | 553.4 | |
| 0.00 | 2.81 | 0.00 | 1.64 | -19.87 | 139.29 | 20.64 | 218.72 | 0.5321 | 831.0 | 701.3 | |
| 1.63 | 2.54 | 0.97 | 1.52 | -22.11 | 139.55 | 20.90 | 216.38 | 0.5594 | 835.4 | 774.8 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -21.56 | 139.43 | 20.78 | 216.86 | 0.5522 | 852.0 | 726.4 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -23.56 | 139.72 | 21.07 | 214.97 | 0.5770 | 618.0 | 546.1 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -23.69 | 139.52 | 20.87 | 214.59 | 0.5769 | 600.0 | 455.9 | |
| 2.54 | 3.72 | 1.51 | 2.21 | -21.83 | 139.16 | 20.51 | 216.20 | 0.5528 | 959.5 | 781.5 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -22.27 | 139.15 | 20.50 | 215.69 | 0.5578 | 839.0 | 658.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -20.86 | 138.63 | 19.98 | 216.63 | 0.5373 | 644.0 | 536.9 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -22.24 | 138.31 | 19.66 | 214.60 | 0.5504 | 863.0 | 695.1 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -22.72 | 138.20 | 19.55 | 213.94 | 0.5551 | 820.0 | 809.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -22.75 | 137.96 | 19.31 | 213.59 | 0.5534 | 715.0 | 725.2 | |
| 0.36 | 4.45 | 0.22 | 2.64 | -22.95 | 137.92 | 19.27 | 213.31 | 0.5555 | 880.2 | 662.8 | |
| 1.91 | 3.09 | 1.13 | 1.83 | -22.77 | 137.62 | 18.96 | 213.09 | 0.5509 | 936.7 | 846.6 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -24.48 | 137.87 | 19.22 | 211.66 | 0.5730 | 698.0 | 495.8 | |
| 6.26 | 9.35 | 3.75 | 5.59 | -23.94 | 137.37 | 18.72 | 211.54 | 0.5629 | 841.1 | 564.8 | |
| 0.00 | 4.08 | 0.00 | 2.43 | -23.34 | 137.21 | 18.56 | 211.93 | 0.5546 | 718.0 | 602.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -24.14 | 137.12 | 18.46 | 211.00 | 0.5634 | 559.0 | 427.1 | |
| 0.00 | 3.99 | 0.00 | 2.34 | -22.12 | 136.45 | 17.80 | 212.17 | 0.5339 | 44.0 | 115.3 | |
| 0.00 | 2.72 | 0.00 | 1.59 | -21.88 | 136.28 | 17.63 | 212.19 | 0.5296 | -179.0 | -249.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.93 | 135.86 | 17.21 | 210.48 | 0.5393 | -577.0 | -499.0 | |
| 0.91 | 11.07 | 0.54 | 6.53 | -23.44 | 135.69 | 17.04 | 209.71 | 0.5444 | -576.4 | -276.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -24.13 | 135.68 | 17.03 | 209.02 | 0.5529 | -383.0 | -273.8 | |
| 0.91 | 257.27 | 0.53 | 149.82 | -22.47 | 135.39 | 16.74 | 210.27 | 0.5301 | -594.9 | -462.7 | |
| 1.36 | -41.00 | 0.81 | -41.00 | -23.92 | 135.40 | 16.75 | 208.84 | 0.5483 | -423.9 | 999999 | |
| 4.36 | -41.00 | 2.53 | -41.00 | -22.29 | 135.09 | 16.44 | 210.01 | 0.5256 | -847.5 | 999999 | |
| 5.72 | -41.00 | 3.36 | -41.00 | -23.39 | 135.06 | 16.41 | 208.86 | 0.5392 | -787.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -24.50 | 135.10 | 16.45 | 207.86 | 0.5535 | -477.0 | -287.0 | |
| 1.00 | -41.00 | 0.59 | -41.00 | -23.87 | 134.88 | 16.22 | 208.13 | 0.5440 | -934.8 | 999999 | |
| 26.32 | -41.00 | 15.27 | -41.00 | -22.38 | 134.52 | 15.87 | 209.06 | 0.5226 | -1202.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -24.10 | 134.52 | 15.87 | 207.40 | 0.5446 | -714.0 | -615.0 | |
| 0.64 | -41.00 | 0.37 | -41.00 | -22.68 | 134.18 | 15.53 | 208.24 | 0.5240 | -908.7 | 999999 | |
| 11.25 | -41.00 | 6.55 | -41.00 | -22.99 | 134.11 | 15.46 | 207.84 | 0.5274 | -902.7 | 999999 | |
| 0.00 | 3.72 | 0.00 | 2.13 | -21.10 | 133.83 | 15.18 | 209.30 | 0.5011 | 307.0 | 352.8 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -21.85 | 133.71 | 15.06 | 208.34 | 0.5099 | -865.0 | -691.5 | |
| 7.17 | 37.93 | 4.16 | 21.99 | -22.93 | 133.38 | 14.73 | 206.78 | 0.5218 | -1146.4 | -676.0 | |
| 2.09 | -53.00 | 1.21 | -53.00 | -23.28 | 133.42 | 14.77 | 206.52 | 0.5266 | -643.9 | 999999 | |
| 1.27 | -53.00 | 0.74 | -53.00 | -22.92 | 132.97 | 14.32 | 206.15 | 0.5190 | -989.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -23.81 | 132.25 | 13.60 | 204.23 | 0.5261 | -755.0 | -609.0 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -24.12 | 132.25 | 13.60 | 203.96 | 0.5302 | -611.0 | -584.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -24.61 | 132.20 | 13.55 | 203.48 | 0.5364 | -614.0 | -548.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -23.98 | 132.02 | 13.37 | 203.74 | 0.5270 | -696.0 | -641.2 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -24.18 | 131.70 | 13.05 | 203.07 | 0.5278 | -693.0 | -565.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -24.38 | 131.48 | 12.83 | 202.56 | 0.5293 | -719.0 | -602.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.10 | 131.42 | 12.77 | 202.69 | 0.5252 | -602.0 | -568.5 | |
| 0.00 | 3.63 | 0.00 | 2.10 | -23.86 | 131.19 | 12.54 | 202.52 | 0.5205 | -696.0 | -607.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
