SDO HMI 2011-07-21 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.38 | 176.51 | 31.25 | 120.82 | 24.66 | 78.14 | -40.51 | 58.83 | 0.6918 | -161.3 | -192.2 | |
|
previous
or next observation for the same group /

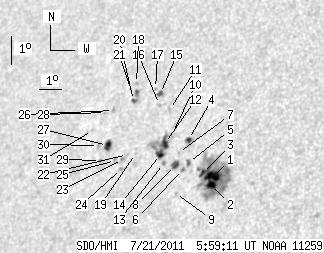

back to the solar disc SDO HMI 2011-07-21 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 99.55 | 6.68 | 66.58 | 24.24 | 79.60 | -39.05 | 58.73 | 0.6744 | -1090.0 | -442.1 | |
| 4.99 | -1.00 | 3.33 | -1.00 | 23.98 | 79.65 | -39.00 | 59.07 | 0.6727 | -1052.1 | 999999 | |
| 2.36 | -1.00 | 1.59 | -1.00 | 24.31 | 79.14 | -39.52 | 58.85 | 0.6798 | -709.6 | 999999 | |
| 2.72 | 3.45 | 1.87 | 2.37 | 25.37 | 78.11 | -40.54 | 57.89 | 0.6957 | -722.9 | -554.8 | |
| 1.91 | 2.81 | 1.30 | 1.92 | 24.63 | 78.40 | -40.25 | 58.76 | 0.6892 | -548.7 | -631.8 | |
| 0.00 | 2.00 | 0.00 | 1.36 | 24.40 | 78.23 | -40.42 | 59.16 | 0.6901 | -818.0 | -597.6 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 24.93 | 77.84 | -40.81 | 58.61 | 0.6966 | -550.0 | -446.3 | |
| 4.45 | 5.17 | 3.05 | 3.55 | 24.51 | 77.87 | -40.78 | 59.17 | 0.6944 | -672.4 | -580.9 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 23.61 | 78.22 | -40.43 | 60.24 | 0.6868 | -541.0 | -427.9 | |
| 0.00 | 1.54 | 0.00 | 1.07 | 25.46 | 77.31 | -41.34 | 58.14 | 0.7045 | -441.0 | -339.6 | |
| 0.00 | 1.72 | 0.00 | 1.21 | 26.30 | 76.86 | -41.79 | 57.23 | 0.7128 | 593.0 | 477.3 | |
| 4.99 | 24.14 | 3.48 | 16.85 | 25.19 | 77.11 | -41.54 | 58.59 | 0.7055 | -531.3 | 50.0 | |
| 0.00 | 1.72 | 0.00 | 1.19 | 24.54 | 77.33 | -41.32 | 59.36 | 0.7004 | -504.0 | -426.8 | |
| 4.72 | -12.00 | 3.28 | -12.00 | 24.83 | 77.08 | -41.57 | 59.09 | 0.7042 | -522.0 | 999999 | |
| 2.18 | 2.63 | 1.55 | 1.88 | 26.79 | 76.22 | -42.43 | 56.87 | 0.7215 | 812.0 | 739.2 | |
| 0.00 | 1.72 | 0.00 | 1.22 | 26.43 | 76.33 | -42.32 | 57.29 | 0.7188 | 725.0 | 581.8 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 26.94 | 75.91 | -42.74 | 56.81 | 0.7252 | 586.0 | 401.9 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 27.06 | 74.96 | -43.69 | 57.07 | 0.7352 | 531.0 | 483.1 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 24.80 | 75.95 | -42.70 | 59.60 | 0.7160 | 368.0 | 368.3 | |
| 1.45 | 6.44 | 1.05 | 4.67 | 26.50 | 75.09 | -43.56 | 57.73 | 0.7316 | 660.7 | 658.0 | |
| 0.00 | 0.64 | 0.00 | 0.46 | 26.88 | 74.77 | -43.88 | 57.38 | 0.7364 | 380.0 | 308.9 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 24.75 | 75.61 | -43.04 | 59.81 | 0.7194 | 733.0 | 570.1 | |
| 0.00 | 1.45 | 0.00 | 1.03 | 24.57 | 75.45 | -43.20 | 60.10 | 0.7204 | 699.0 | 605.4 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 24.28 | 75.53 | -43.12 | 60.45 | 0.7185 | 827.0 | 709.4 | |
| 0.00 | 2.09 | 0.00 | 1.49 | 24.52 | 75.15 | -43.50 | 60.29 | 0.7234 | 560.0 | 486.0 | |
| 0.00 | 1.72 | 0.00 | 1.26 | 26.12 | 74.32 | -44.33 | 58.53 | 0.7379 | 710.0 | 526.7 | |
| 5.63 | 6.99 | 4.07 | 5.05 | 24.98 | 74.57 | -44.08 | 59.91 | 0.7311 | 769.1 | 538.9 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 26.04 | 73.98 | -44.67 | 58.77 | 0.7410 | 600.0 | 535.9 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 24.49 | 74.47 | -44.18 | 60.60 | 0.7303 | 636.0 | 545.9 | |
| 0.00 | 1.91 | 0.00 | 1.39 | 24.96 | 74.16 | -44.49 | 60.09 | 0.7352 | 580.0 | 420.7 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 25.42 | 73.66 | -44.99 | 59.68 | 0.7420 | 567.0 | 607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
