SDO HMI 2011-07-21 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.81 | 216.10 | 36.21 | 144.76 | 24.60 | 77.99 | -39.02 | 58.20 | 0.6754 | -229.4 | -150.8 | |
|
previous
or next observation for the same group /

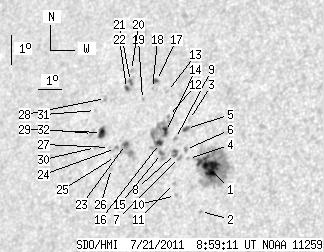

back to the solar disc SDO HMI 2011-07-21 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.87 | 107.63 | 16.29 | 70.37 | 24.16 | 79.52 | -37.49 | 58.07 | 0.6566 | -978.0 | -397.8 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 22.71 | 79.66 | -37.34 | 60.07 | 0.6479 | -625.0 | -457.7 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 25.63 | 78.16 | -38.84 | 56.72 | 0.6787 | -522.0 | -468.2 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 24.37 | 78.59 | -38.42 | 58.24 | 0.6680 | -393.0 | -441.8 | |
| 2.99 | 3.63 | 2.01 | 2.44 | 25.33 | 78.15 | -38.86 | 57.14 | 0.6774 | -729.5 | -589.1 | |
| 0.00 | 2.09 | 0.00 | 1.39 | 24.65 | 78.36 | -38.65 | 57.96 | 0.6719 | -776.0 | -616.7 | |
| 0.00 | 2.36 | 0.00 | 1.57 | 24.39 | 78.20 | -38.81 | 58.42 | 0.6723 | -856.0 | -634.3 | |
| 3.27 | 4.63 | 2.19 | 3.10 | 24.50 | 77.98 | -39.02 | 58.36 | 0.6753 | -706.0 | -648.9 | |
| 0.00 | 1.91 | 0.00 | 1.28 | 24.99 | 77.80 | -39.21 | 57.78 | 0.6795 | -678.0 | -493.7 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 23.16 | 78.46 | -38.55 | 60.01 | 0.6638 | -579.0 | -503.2 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 23.54 | 78.29 | -38.72 | 59.55 | 0.6675 | -687.0 | -486.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 25.68 | 77.22 | -39.78 | 57.12 | 0.6890 | -375.0 | -297.5 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 26.48 | 76.85 | -40.16 | 56.22 | 0.6967 | 626.0 | 562.3 | |
| 3.81 | 39.39 | 2.59 | 26.78 | 25.19 | 77.29 | -39.72 | 57.76 | 0.6860 | -690.7 | -101.1 | |
| 1.91 | -14.00 | 1.29 | -14.00 | 24.47 | 77.39 | -39.62 | 58.69 | 0.6816 | -433.9 | 999999 | |
| 2.99 | -14.00 | 2.03 | -14.00 | 24.79 | 77.18 | -39.83 | 58.35 | 0.6853 | -655.8 | 999999 | |
| 1.81 | 2.36 | 1.26 | 1.64 | 26.82 | 76.21 | -40.80 | 56.09 | 0.7049 | 758.7 | 743.0 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 26.55 | 76.15 | -40.86 | 56.48 | 0.7043 | 755.0 | 637.0 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 26.17 | 75.86 | -41.15 | 57.12 | 0.7056 | 614.0 | 527.3 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 27.08 | 74.95 | -42.06 | 56.33 | 0.7190 | 589.0 | 490.8 | |
| 2.00 | 6.62 | 1.41 | 4.68 | 26.72 | 75.07 | -41.94 | 56.75 | 0.7162 | 751.8 | 554.5 | |
| 1.81 | -21.00 | 1.28 | -21.00 | 26.49 | 74.99 | -42.02 | 57.09 | 0.7159 | 673.3 | 999999 | |
| 2.45 | 14.79 | 1.70 | 10.20 | 24.68 | 75.72 | -41.29 | 59.17 | 0.7006 | 907.0 | 552.3 | |
| 0.00 | 3.09 | 0.00 | 2.15 | 24.53 | 75.33 | -41.68 | 59.54 | 0.7041 | 701.0 | 571.1 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 24.27 | 75.43 | -41.57 | 59.84 | 0.7019 | 780.0 | 695.9 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 23.88 | 75.41 | -41.60 | 60.38 | 0.7006 | 618.0 | 555.0 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 24.55 | 75.05 | -41.96 | 59.64 | 0.7071 | 477.0 | 439.0 | |
| 0.00 | 2.00 | 0.00 | 1.43 | 26.11 | 74.19 | -42.82 | 57.93 | 0.7225 | 649.0 | 582.4 | |
| 5.90 | 7.26 | 4.16 | 5.12 | 25.01 | 74.49 | -42.51 | 59.25 | 0.7149 | 762.1 | 549.9 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 24.51 | 74.43 | -42.58 | 59.94 | 0.7136 | 538.0 | 446.4 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 25.70 | 73.91 | -43.10 | 58.58 | 0.7237 | 446.0 | 422.8 | |
| 0.00 | 2.36 | 0.00 | 1.68 | 24.95 | 74.10 | -42.90 | 59.49 | 0.7187 | 607.0 | 444.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
