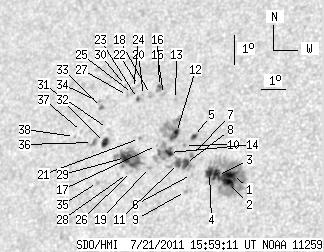

SDO HMI 2011-07-21 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.68 | 270.71 | 37.58 | 173.68 | 24.66 | 77.58 | -35.57 | 56.26 | 0.6374 | -76.2 | -62.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-21 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 106.65 | 3.67 | 66.51 | 24.16 | 79.99 | -33.16 | 55.53 | 0.6076 | -1040.1 | -426.4 | |
| 6.35 | -1.00 | 3.95 | -1.00 | 23.90 | 79.90 | -33.25 | 55.97 | 0.6070 | -1051.7 | 999999 | |
| 7.35 | -1.00 | 4.60 | -1.00 | 24.10 | 79.40 | -33.75 | 55.99 | 0.6139 | -870.1 | 999999 | |
| 5.71 | -1.00 | 3.59 | -1.00 | 24.18 | 79.05 | -34.09 | 56.09 | 0.6184 | -667.5 | 999999 | |
| 2.09 | 3.72 | 1.34 | 2.38 | 25.31 | 78.04 | -35.11 | 55.08 | 0.6363 | -763.4 | -617.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 24.09 | 78.35 | -34.79 | 56.66 | 0.6258 | -677.0 | -469.2 | |
| 0.00 | 1.81 | 0.00 | 1.16 | 24.70 | 78.16 | -34.99 | 55.89 | 0.6314 | -742.0 | -656.2 | |
| 5.26 | 20.77 | 3.35 | 13.26 | 24.43 | 78.00 | -35.15 | 56.38 | 0.6317 | -813.9 | -586.4 | |
| 0.00 | 1.72 | 0.00 | 1.09 | 23.53 | 78.28 | -34.87 | 57.52 | 0.6235 | -656.0 | -603.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 25.01 | 77.77 | -35.38 | 55.68 | 0.6375 | -649.0 | -568.3 | |
| 4.63 | -8.00 | 2.96 | -8.00 | 24.42 | 77.72 | -35.43 | 56.56 | 0.6348 | -650.2 | 999999 | |
| 2.00 | 27.84 | 1.29 | 18.07 | 25.41 | 77.30 | -35.85 | 55.39 | 0.6450 | -768.2 | -163.2 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 26.48 | 76.88 | -36.27 | 54.15 | 0.6555 | 661.0 | 526.4 | |
| 3.08 | 22.76 | 1.99 | 14.71 | 24.75 | 77.24 | -35.91 | 56.36 | 0.6421 | -550.2 | -33.9 | |
| 0.00 | 2.18 | 0.00 | 1.44 | 26.61 | 76.32 | -36.83 | 54.29 | 0.6623 | 667.0 | 544.7 | |
| 1.45 | 4.63 | 0.96 | 3.06 | 26.87 | 76.05 | -37.10 | 54.10 | 0.6665 | 751.2 | 754.9 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 24.95 | 76.63 | -36.52 | 56.43 | 0.6499 | -297.0 | -233.0 | |
| 0.00 | 2.54 | 0.00 | 1.69 | 26.59 | 75.77 | -37.37 | 54.63 | 0.6680 | 732.0 | 641.6 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 24.23 | 76.58 | -36.57 | 57.48 | 0.6466 | -554.0 | -378.5 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 26.54 | 75.49 | -37.66 | 54.86 | 0.6707 | 634.0 | 526.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 25.14 | 75.84 | -37.31 | 56.59 | 0.6595 | 599.0 | 577.4 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 26.85 | 75.15 | -38.00 | 54.62 | 0.6760 | 554.0 | 450.8 | |
| 1.45 | 2.27 | 0.97 | 1.51 | 26.43 | 75.27 | -37.87 | 55.12 | 0.6724 | 761.4 | 320.2 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 26.75 | 74.98 | -38.17 | 54.86 | 0.6772 | 732.0 | 629.2 | |
| 0.00 | 1.72 | 0.00 | 1.16 | 26.58 | 75.00 | -38.15 | 55.07 | 0.6761 | 721.0 | 639.1 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 24.07 | 75.88 | -37.27 | 58.09 | 0.6536 | 786.0 | 642.2 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 26.51 | 74.81 | -38.34 | 55.27 | 0.6777 | 645.0 | 571.5 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 23.99 | 75.74 | -37.41 | 58.27 | 0.6549 | 691.0 | 575.2 | |
| 7.35 | 39.90 | 4.83 | 26.19 | 24.50 | 75.48 | -37.67 | 57.68 | 0.6603 | 1028.9 | 556.8 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 26.83 | 74.60 | -38.55 | 54.95 | 0.6816 | 596.0 | 391.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 25.40 | 74.37 | -38.77 | 57.01 | 0.6767 | 607.0 | 582.0 | |
| 4.44 | 5.80 | 2.97 | 3.88 | 24.94 | 74.42 | -38.73 | 57.62 | 0.6741 | 842.8 | 614.7 | |
| 1.63 | 2.09 | 1.11 | 1.42 | 26.06 | 73.85 | -39.30 | 56.37 | 0.6856 | 693.1 | 686.6 | |
| 0.00 | 1.72 | 0.00 | 1.17 | 26.25 | 73.64 | -39.50 | 56.22 | 0.6887 | 518.0 | 390.3 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 23.64 | 74.59 | -38.56 | 59.34 | 0.6661 | 693.0 | 599.3 | |
| 0.00 | 5.44 | 0.00 | 3.66 | 24.91 | 73.91 | -39.24 | 57.91 | 0.6795 | 598.0 | 520.6 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 25.24 | 73.30 | -39.85 | 57.75 | 0.6876 | 378.0 | 287.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 25.07 | 73.06 | -40.09 | 58.11 | 0.6893 | 502.0 | 334.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
