SDO HMI 2011-07-21 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.28 | 260.09 | 40.22 | 165.75 | 24.61 | 77.54 | -35.06 | 56.03 | 0.6314 | -158.1 | -24.1 | |
|
previous
or next observation for the same group /

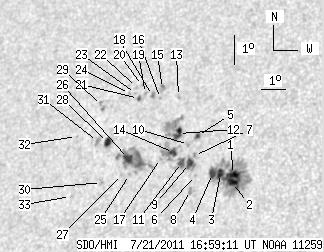

back to the solar disc SDO HMI 2011-07-21 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.25 | 100.30 | 5.11 | 62.17 | 24.15 | 79.87 | -32.72 | 55.26 | 0.6025 | -1025.7 | -452.1 | |
| 7.80 | -1.00 | 4.82 | -1.00 | 23.89 | 79.90 | -32.69 | 55.62 | 0.6005 | -1026.7 | 999999 | |
| 4.72 | -1.00 | 2.94 | -1.00 | 24.16 | 79.35 | -33.24 | 55.59 | 0.6085 | -918.9 | 999999 | |
| 5.62 | -1.00 | 3.52 | -1.00 | 24.15 | 79.03 | -33.56 | 55.81 | 0.6121 | -648.0 | 999999 | |
| 1.81 | 2.99 | 1.15 | 1.90 | 25.34 | 78.05 | -34.54 | 54.70 | 0.6302 | -762.0 | -711.0 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 24.05 | 78.38 | -34.22 | 56.37 | 0.6190 | -615.0 | -524.4 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 24.69 | 78.14 | -34.46 | 55.58 | 0.6254 | -730.0 | -617.0 | |
| 0.00 | 2.72 | 0.00 | 1.71 | 23.56 | 78.32 | -34.27 | 57.12 | 0.6168 | -731.0 | -580.8 | |
| 5.26 | 18.59 | 3.33 | 11.79 | 24.43 | 78.02 | -34.58 | 56.04 | 0.6252 | -861.6 | -592.1 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 25.03 | 77.78 | -34.81 | 55.30 | 0.6314 | -613.0 | -486.8 | |
| 4.62 | -9.00 | 2.94 | -9.00 | 24.44 | 77.69 | -34.91 | 56.22 | 0.6291 | -633.2 | 999999 | |
| 6.53 | 27.30 | 4.20 | 17.60 | 25.37 | 77.26 | -35.34 | 55.14 | 0.6391 | -706.1 | -28.4 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 26.57 | 76.84 | -35.75 | 53.72 | 0.6506 | 764.0 | 605.0 | |
| 4.62 | 19.22 | 2.96 | 12.33 | 24.75 | 77.26 | -35.34 | 56.03 | 0.6356 | -610.1 | -25.2 | |
| 0.00 | 3.99 | 0.00 | 2.62 | 26.80 | 76.08 | -36.52 | 53.86 | 0.6600 | 910.0 | 763.0 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 26.47 | 76.12 | -36.48 | 54.29 | 0.6577 | 703.0 | 614.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 24.53 | 76.79 | -35.80 | 56.62 | 0.6396 | -172.0 | -133.7 | |
| 1.36 | 2.63 | 0.90 | 1.73 | 26.55 | 75.74 | -36.85 | 54.39 | 0.6621 | 737.7 | 642.7 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 26.60 | 75.43 | -37.17 | 54.50 | 0.6658 | 702.0 | 556.0 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 26.85 | 75.20 | -37.39 | 54.28 | 0.6696 | 665.0 | 553.3 | |
| 1.27 | 2.00 | 0.84 | 1.32 | 26.42 | 75.19 | -37.40 | 54.87 | 0.6673 | 814.1 | 698.6 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 26.78 | 74.97 | -37.62 | 54.52 | 0.6716 | 672.0 | 506.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 26.58 | 75.00 | -37.59 | 54.77 | 0.6702 | 672.0 | 661.5 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 26.57 | 74.75 | -37.84 | 54.92 | 0.6728 | 721.0 | 587.0 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 23.96 | 75.70 | -36.90 | 58.05 | 0.6489 | 786.0 | 626.3 | |
| 7.07 | 44.98 | 4.62 | 29.28 | 24.47 | 75.48 | -37.11 | 57.44 | 0.6539 | 1032.2 | 507.2 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 23.94 | 75.37 | -37.23 | 58.25 | 0.6525 | 653.0 | 463.8 | |
| 4.35 | 5.80 | 2.89 | 3.85 | 24.94 | 74.42 | -38.17 | 57.34 | 0.6680 | 840.2 | 633.3 | |
| 0.00 | 3.54 | 0.00 | 2.39 | 26.12 | 73.71 | -38.88 | 56.09 | 0.6815 | 547.0 | 530.1 | |
| 0.00 | 2.72 | 0.00 | 1.79 | 23.64 | 74.62 | -37.97 | 59.05 | 0.6594 | 768.0 | 557.9 | |
| 0.00 | 4.99 | 0.00 | 3.33 | 24.95 | 73.99 | -38.61 | 57.55 | 0.6727 | 740.0 | 570.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 25.06 | 73.03 | -39.56 | 57.86 | 0.6836 | 470.0 | 397.0 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 23.13 | 73.48 | -39.11 | 60.33 | 0.6699 | 572.0 | 447.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
